Move design table object using SOLIDWORKS API

Edit ArticleEdit Article

This example demonstrates how to resize and move the design table OLE object in the graphics area using ISwOLEObject::Boundaries SOLIDWORKS API method.

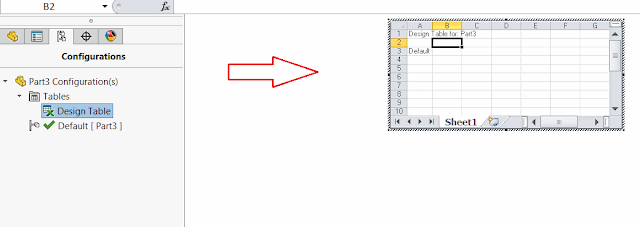

Design Table OLE object in the graphics area
Design Table OLE object in the graphics area

In this example an existing design table element will be moved to the right on the distance equals to object's width

Const DESIGN_TABLE_CLSID As String = "{00020830-0000-0000-C000-000000000046}"

Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2

Sub main()

    Set swApp = Application.SldWorks

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim vOleObjs As Variant
        vOleObjs = swModel.Extension.GetOLEObjects(swOleObjectOptions_e.swOleObjectOptions_GetAll)

        Dim i As Integer

        Dim isDesTableFound As Boolean

        For i = 0 To UBound(vOleObjs)

            Dim swOleObj As SldWorks.SwOLEObject
            Set swOleObj = vOleObjs(i)

            If swOleObj.Clsid = DESIGN_TABLE_CLSID Then

                isDesTableFound = True

                Dim vBounds As Variant
                vBounds = swOleObj.Boundaries

                Dim width As Double

                width = vBounds(3) - vBounds(0)

                Dim newBounds(6) As Double
                newBounds(0) = vBounds(0) + width: newBounds(1) = vBounds(1): newBounds(2) = 0
                newBounds(3) = vBounds(3) + width * 2: newBounds(4) = vBounds(4): newBounds(5) = 0

                swOleObj.Boundaries = newBounds

            End If

        Next

        If Not isDesTableFound Then
            MsgBox "Design table is not found in this model"
        End If

    Else

        MsgBox "Please open the model with design table"

    End If

End Sub
