Read custom properties from file, configuration and cut-list elements using SOLIDWORKS API

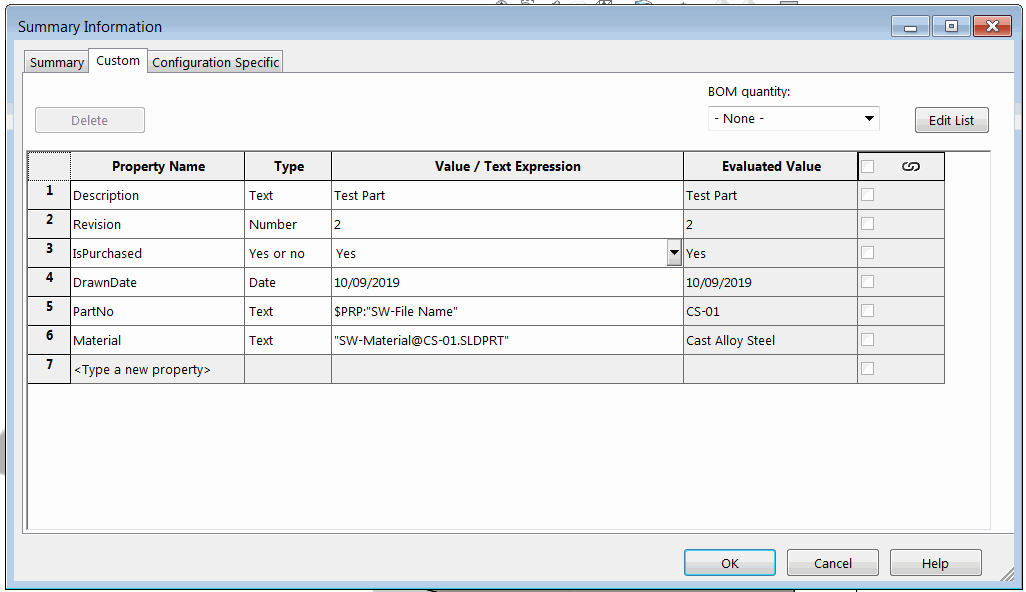

This VBA macro example demonstrates how to read all properties from all sources of custom properties using SOLIDWORKS API. This includes file (general), configuration specific and cut-list properties.

Result is output to the immediate widow of SOLIDWORKS and contains information about source of the property, name, value, expression, status and linked state.

Second parameter of PrintConfigurationSpecificProperties allows to specify if properties need to be read from cache or need to be resolved. This option is important when it is required to resolve the expressions which will result in different values in different configurations, e.g. mass or volume properties.

PrintConfigurationSpecificProperties swModel, False 'resolve properties for the configuration

General Properties
    Property: Description
    Value/Text Expression: Test Part
    Evaluated Value: Test Part
    Was Resolved: True
    Is Linked: False
    Status: Resolved Value

Configuration Specific Properties
    A
        Property: Weight
        Value/Text Expression: "SW-Mass@@A@CS-01.SLDPRT"
        Evaluated Value: 70.20
        Was Resolved: True
        Is Linked: False
        Status: Cached Value

Cut List Properties
    -No Cut Lists-

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then
        PrintGeneralProperties swModel
        PrintConfigurationSpecificProperties swModel, True
        PrintCutListProperties swModel
    Else
        MsgBox "Please open model"
    End If

End Sub

Sub PrintGeneralProperties(model As SldWorks.ModelDoc2)

    Dim swCustPrpMgr As SldWorks.CustomPropertyManager
    Set swCustPrpMgr = model.Extension.CustomPropertyManager("")

    Debug.Print "General Properties"

    PrintProperties swCustPrpMgr, False, "    "

End Sub

Sub PrintConfigurationSpecificProperties(model As SldWorks.ModelDoc2, cached As Boolean)

    Dim vNames As Variant
    vNames = model.GetConfigurationNames()

    Dim i As Integer

    Debug.Print "Configuration Specific Properties"

    For i = 0 To UBound(vNames)

        Dim confName As String
        confName = vNames(i)

        Dim swCustPrpMgr As SldWorks.CustomPropertyManager
        Set swCustPrpMgr = model.Extension.CustomPropertyManager(confName)

        Debug.Print "    " & confName
        PrintProperties swCustPrpMgr, cached, "        "

    Next

End Sub

Sub PrintCutListProperties(model As SldWorks.ModelDoc2)

    Dim vCutLists As Variant
    vCutLists = GetCutLists(model)

    Debug.Print "Cut List Properties"

    If Not IsEmpty(vCutLists) Then
        Dim i As Integer

        For i = 0 To UBound(vCutLists)
            Dim swCutListFeat As SldWorks.Feature
            Set swCutListFeat = vCutLists(i)
            Debug.Print "    " & swCutListFeat.Name
            PrintProperties swCutListFeat.CustomPropertyManager, False, "        "
        Next
    Else
        Debug.Print "    -No Cut Lists-"
    End If

End Sub

Function GetCutLists(model As SldWorks.ModelDoc2) As Variant

    Dim swCutListFeats() As SldWorks.Feature
    Dim isInit As Boolean
    isInit = False

    Dim swFeat As SldWorks.Feature
    Dim swBodyFolder As SldWorks.BodyFolder

    Set swFeat = model.FirstFeature

    Do While Not swFeat Is Nothing

        If swFeat.GetTypeName2 = "CutListFolder" Then

            If Not isInit Then
                isInit = True
                ReDim swCutListFeats(0)
            Else
                ReDim Preserve swCutListFeats(UBound(swCutListFeats) + 1)
            End If

            Set swCutListFeats(UBound(swCutListFeats)) = swFeat

        End If

        Set swFeat = swFeat.GetNextFeature

    Loop

    If isInit Then
        GetCutLists = swCutListFeats
    Else
        GetCutLists = Empty
    End If

End Function

Sub PrintProperties(custPrpMgr As SldWorks.CustomPropertyManager, cached As Boolean, indent As String)

    Dim vPrpNames As Variant
    vPrpNames = custPrpMgr.GetNames()

    Dim i As Integer

    If Not IsEmpty(vPrpNames) Then

        For i = 0 To UBound(vPrpNames)

            Dim prpName As String
            prpName = vPrpNames(i)

            Dim prpVal As String
            Dim prpResVal As String
            Dim wasResolved As Boolean
            Dim isLinked As Boolean

            Dim res As Long
            res = custPrpMgr.Get6(prpName, cached, prpVal, prpResVal, wasResolved, isLinked)

            Dim status As String
            Select Case res
                Case swCustomInfoGetResult_e.swCustomInfoGetResult_CachedValue
                    status = "Cached Value"
                Case swCustomInfoGetResult_e.swCustomInfoGetResult_ResolvedValue
                    status = "Resolved Value"
                Case swCustomInfoGetResult_e.swCustomInfoGetResult_NotPresent
                    status = "Not Present"
            End Select

            Debug.Print indent & "Property: " & prpName
            Debug.Print indent & "Value/Text Expression: " & prpVal
            Debug.Print indent & "Evaluated Value: " & prpResVal
            Debug.Print indent & "Was Resolved: " & wasResolved
            Debug.Print indent & "Is Linked: " & isLinked
            Debug.Print indent & "Status: " & status
            Debug.Print ""

        Next
    Else
        Debug.Print indent & "-No Properties-"
    End If

End Sub
