Fix or float component in active or all configurations using SOLIDWORKS API

Edit ArticleEdit Article
Comments

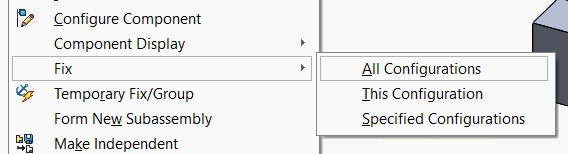

Options to fix component
Options to fix component

This VBA example demonstrates a simple workaround for missing SOLIDWORKS API to fix or float the component in active configuration only. IAssemblyDoc::FixComponent only fixes the components in all configurations.

Create an example assembly with 2 configurations and 4 instances of the component, where first 2 instances are floating in both configurations, while last 2 instances are fixed in both configuration.

Initial state of example
Initial state of example

As the result of running this macro components will be changed to the following result:

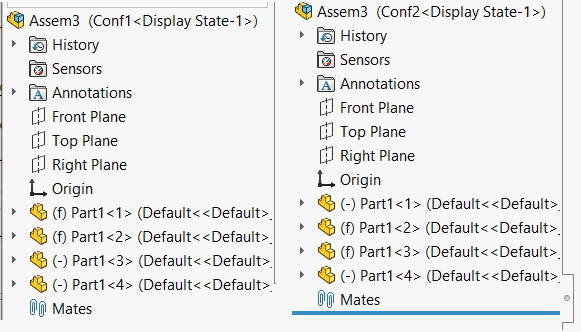

Result of running the macro
Result of running the macro

#If VBA7 Then
     Private Declare PtrSafe Function SendMessage Lib "User32" Alias "SendMessageA" (ByVal hWnd As Long, ByVal wMsg As Long, ByVal wParam As Long, lParam As Any) As Long
#Else
     Private Declare Function SendMessage Lib "User32" Alias "SendMessageA" (ByVal hWnd As Long, ByVal wMsg As Long, ByVal wParam As Long, lParam As Any) As Long
#End If

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swAssy As SldWorks.AssemblyDoc

    Set swAssy = swApp.ActiveDoc

    FixComponent swAssy.GetComponentByName("Part1-1"), True
    FixComponent swAssy.GetComponentByName("Part1-2"), False
    FloatComponent swAssy.GetComponentByName("Part1-3"), True
    FloatComponent swAssy.GetComponentByName("Part1-4"), False

End Sub

Sub FixComponent(comp As SldWorks.Component2, thisConf As Boolean)

    Const CMD_FixCompInThisConf As Long = 51605
    Const CMD_FixCompInAllConf As Long = 51611

    If False <> comp.Select4(False, Nothing, False) Then

        Const WM_COMMAND As Long = &H111
        Dim cmd As Long

        If thisConf Then
            cmd = CMD_FixCompInThisConf
        Else
            cmd = CMD_FixCompInAllConf
        End If

        SendMessage swApp.Frame().GetHWnd(), WM_COMMAND, cmd, 0
    Else
        Err.Raise vbError, "", "Failed to select component"
    End If

End Sub

Sub FloatComponent(comp As SldWorks.Component2, thisConf As Boolean)

    Const CMD_FloatCompInThisConf As Long = 51609
    Const CMD_FloatCompInAllConf As Long = 51608

    If False <> comp.Select4(False, Nothing, False) Then

        Const WM_COMMAND As Long = &H111
        Dim cmd As Long

        If thisConf Then
            cmd = CMD_FloatCompInThisConf
        Else
            cmd = CMD_FloatCompInAllConf
        End If

        SendMessage swApp.Frame().GetHWnd(), WM_COMMAND, cmd, 0
    Else
        Err.Raise vbError, "", "Failed to select component"
    End If

End Sub
