macro to automatically assign the SOLIDWORKS component references in a sequential order

Edit ArticleEdit Article

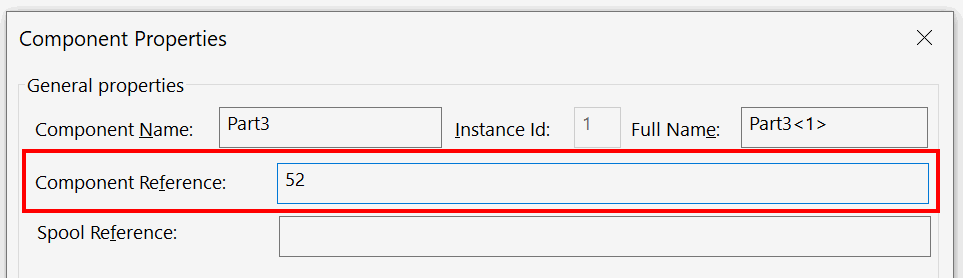

Component Reference
Component Reference

This VBA macro allows to automatically assign the numeric number to the selected components' references in the SOLIDWORKS assembly

Number is incremented automatically based on the specified seed value

Number is assigned in the order components are selected in the assembly

Component can be selected in the feature manager tree or in the graphics area (any entity of the component can be selected, e.g. face or edge)

Macro can be configured to either specify the input in the popup box (set the value of INPUT_SEED variable to True) or by providing the seed as the constant (INPUT_SEED equals to False and SEED equals to the seed number)

Const INPUT_SEED As Boolean = True 'input the seed (start) number in the input box upon running the macro
Const SEED As Integer = 1

Enum ScopeType_e
End Enum

Const SCOPE As Integer = ScopeType_e.Selected
Const INPUT_SEED As Boolean = False
Const SEED As Integer = 1

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks
    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc
    Dim swAssm As SldWorks.AssemblyDoc
    Set swAssm = swModel
    If Not swModel Is Nothing Then
        Dim i As Integer
        Dim swComp As SldWorks.Component2
        Dim nextRef As Integer
        If INPUT_SEED Then
            Dim seedStr As String
            seedStr = InputBox("Specify the start seed number")
            If seedStr <> "" Then
                nextRef = CInt(seedStr)
            End If
            nextRef = SEED
        End If
        If SCOPE = ScopeType_e.Selected Then
            Dim swSelMgr As SldWorks.SelectionMgr
            Set swSelMgr = swModel.SelectionManager
            For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)
                Set swComp = swSelMgr.GetSelectedObjectsComponent3(i, -1)
                If swComp Is Nothing Then
                    Err.Raise vbError, "", "Object selected at index " & i & " does not belong to component"
                End If
                swComp.ComponentReference = nextRef
                nextRef = nextRef + 1
            Dim topLevel As Boolean
            If SCOPE = ScopeType_e.topLevel Then
                topLevel = True
            ElseIf SCOPE = ScopeType_e.All Then
                topelvel = False
                Err.Raise vbError, "", "Not supported scope"
            End If
            Dim vComps As Variant
            vComps = swAssm.GetComponents(topLevel)
            If Not IsEmpty(vComps) Then
                For i = 0 To UBound(vComps)
                    Set swComp = vComps(i)
                    swComp.ComponentReference = nextRef
                    nextRef = nextRef + 1
            End If
        End If
        Err.Raise vbError, "", "Open assembly"
    End If
End Sub
