This VBA macro finds all parent components of the selected component instances (Where Used) in the active assembly using SOLIDWORKS API and displays the list for review.

Where used form with the list of parent components
Where used form with the list of parent components

All references can be selected in the form and corresponding component will be highlighted in the Feature Manager Tree.

Configuration

Macro can be configured by changing the constant parameters at the beginning of the macro as shown below:

Const CONSIDER_CONFIG As Boolean = False 'True to only find the component which have the same referenced configuration, False to find by model path only
Const INCLUDE_SUPPRESSED As Boolean = False 'True to include suppressed components in the search, False to not include

Creating Macro

  • Create new macro
  • Add new User Form
  • Set the name of the form as WhereUsedForm
  • Drag-n-drop ListBox control onto the form
  • Name the ListBox control as ReferencesList

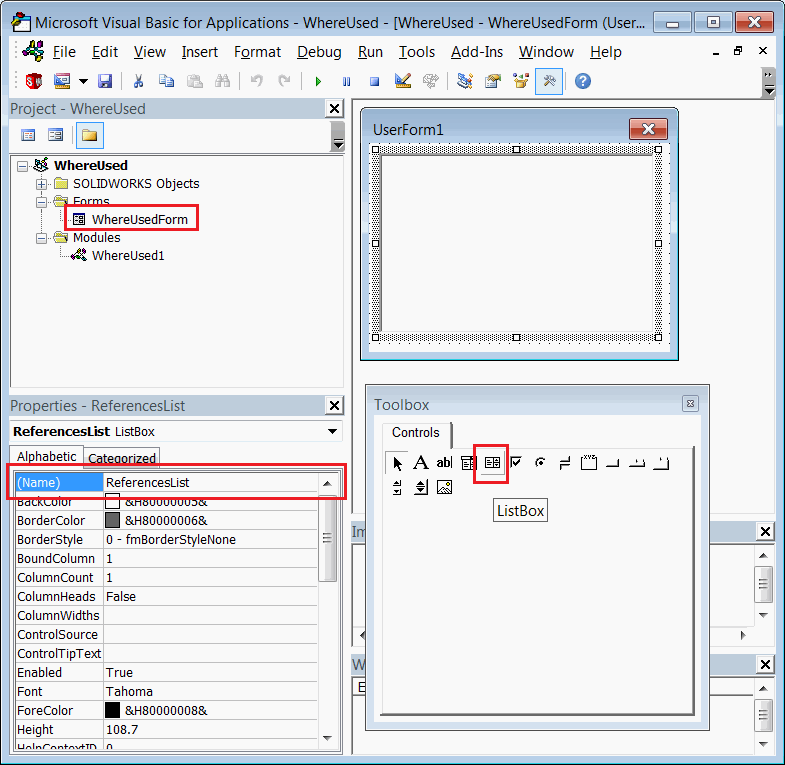

Form designer
Form designer

Place the code into corresponding modules

Macro

Const CONSIDER_CONFIG As Boolean = False
Const INCLUDE_SUPPRESSED As Boolean = False

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swAssy As SldWorks.AssemblyDoc

    Set swAssy = swApp.ActiveDoc

    If Not swAssy Is Nothing Then
        Dim swSelMgr As SldWorks.SelectionMgr
        Set swSelMgr = swAssy.SelectionManager

        Dim swComp As SldWorks.Component2
        Set swComp = swSelMgr.GetSelectedObjectsComponent3(1, -1)

        If Not swComp Is Nothing Then

            Dim vComps As Variant
            vComps = GetAllComponentInstances(swAssy, swComp, CONSIDER_CONFIG, INCLUDE_SUPPRESSED)

            If Not IsEmpty(vComps) Then
                Dim vParents As Variant
                vParents = GetParents(vComps)
                WhereUsedForm.Components = vParents
                Set WhereUsedForm.Assembly = swAssy
                WhereUsedForm.Show vbModeless
            Else
                MsgBox "Failed to find component instances"
            End If

        Else
            MsgBox "Please select component"
        End If
    Else
        MsgBox "Please open assembly"
    End If

End Sub

Function GetAllComponentInstances(assy As SldWorks.AssemblyDoc, targComp As SldWorks.Component2, considerConfig As Boolean, includeSuppressed As Boolean)

    Dim swCompInst() As SldWorks.Component2
    Dim isInit As Boolean

    Dim vComps As Variant
    vComps = assy.GetComponents(False)

    Dim i As Integer

    For i = 0 To UBound(vComps)

        Dim swComp As SldWorks.Component2
        Set swComp = vComps(i)

        If UCase(swComp.GetPathName()) = UCase(targComp.GetPathName()) Then

            If Not considerConfig Or UCase(swComp.ReferencedConfiguration) = UCase(targComp.ReferencedConfiguration) Then

                If includeSuppressed Or False = swComp.IsSuppressed() Then

                    If isInit Then
                        ReDim Preserve swCompInst(UBound(swCompInst()) + 1)
                    Else
                        ReDim swCompInst(0)
                        isInit = True
                    End If

                    Set swCompInst(UBound(swCompInst())) = swComp

                End If

            End If
        End If
    Next

    If isInit Then
        GetAllComponentInstances = swCompInst
    Else
        GetAllComponentInstances = Empty
    End If

End Function

Function GetParents(comps As Variant) As Variant

    Dim swParents() As SldWorks.Component2
    Dim isInit As Variant

    Dim i As Integer

    For i = 0 To UBound(comps)

        Dim swComp As SldWorks.Component2
        Set swComp = comps(i)

        Dim swParentComp As SldWorks.Component2

        Set swParentComp = swComp.GetParent

        Dim addParent As Boolean
        addParent = True

        If Not isInit Then
            isInit = True
            ReDim swParents(0)
        Else
            If Not Contains(swParents, swParentComp) Then
                ReDim Preserve swParents(UBound(swParents) + 1)
            Else
                addParent = False
            End If
        End If

        If addParent Then
            Set swParents(UBound(swParents)) = swParentComp
        End If

    Next

    GetParents = swParents

End Function

Function Contains(vArr As Variant, item As Object) As Boolean

    Dim i As Integer

    For i = 0 To UBound(vArr)
        If vArr(i) Is item Then
            Contains = True
            Exit Function
        End If
    Next

    Contains = False

End Function

WhereUsedForm

Dim swComps As Variant

Public Assembly As SldWorks.AssemblyDoc

Property Let Components(val As Variant)
    swComps = val

    Dim i As Integer

    For i = 0 To UBound(swComps)

        Dim swComp As SldWorks.Component2
        Set swComp = swComps(i)

        Dim name As String

        If swComp Is Nothing Then
            name = "<root>"
        Else
            name = swComp.Name2
        End If

        ReferencesList.AddItem name
    Next

End Property

Private Sub ReferencesList_Change()

    Dim swComp As SldWorks.Component2
    Set swComp = swComps(ReferencesList.ListIndex)

    If Not swComp Is Nothing Then
        swComp.Select4 False, Nothing, False
    Else
        Assembly.ClearSelection2 False
    End If

End Sub
