Open selected components in the Large Design Review (LDR) mode

Edit ArticleEdit Article
More 'Goodies'

This VBA macro can be run from the assembly opened in the Large Design Review (LDR) mode or drawing opened in the Detailing mode. Macro will open all selected components in their own windows, but unlike out-of-the-box functionality assemblies will not be resolved and will preserve the LDR mode.

Selected sub-assembly components
Selected sub-assembly components

It is then possible to enable the editing in the LDR mode, modify the assembly and update the graphics in the top level assembly.

Preserving the LDR mode on all the steps will significantly improve the performance.

Drawings

This macro can also work from the drawing opened in the Detailing mode. It is required to select drawing view(s) before running the macro.

Selected drawing view
Selected drawing view

To enable drawing support it is required to enable Document Manager API in the macro. Follow Activating Document Manager section for the detailed steps to request Document Manager license key.

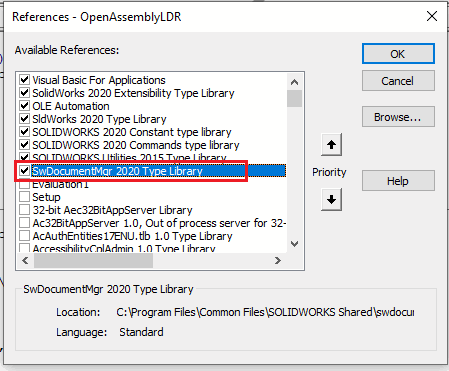

Add the reference to SwDocumentMgr [Year] Type Library under the Tools->References menu in VBA editor. Follow Document Manager in VBA for more information.

Document Manager reference
Document Manager reference

Set the license key in the DM_LIC_KEY variable. Note that this macro only requires swdocmgr_general portion of the key. The following format would be sufficient.

Const DM_LIC_KEY As String = "[CompanyName]:swdocmgr_general-00000-{31 times}"

This routine is not required if macro will only be used from assemblies.

Notes and limitations

  • Sub-assembly components will be opened in Large Design Review mode while part components will be opened in the View Only mode
  • If target parts or assemblies do not have display data stored - error will be thrown
  • Components must be selected from the Feature Manager Tree. Entities selected in the graphics area will be ignored
  • This VBA macro is using the simplified version of the Search Routine for Referenced Documents and only checks active assembly's folder and sub folders before falling back on the cached path of the component. In some cases this may result in incorrect reference loaded (e.g if search folders are used). But this will only apply to the assembly which was copied and cached file paths were never updated.

Referenced Configurations

This macro will attempt to open the assembly in the referenced configuration of the component, however by default SOLIDWORKS only stores the display data in the active configuration, unless configurations are marked with 'Display Data Mark' flag

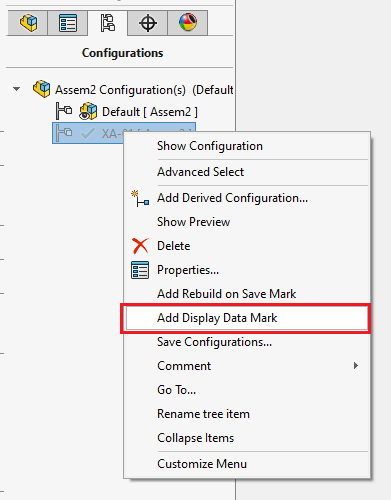

Add display data mark flag to configuration
Add display data mark flag to configuration

If the referenced configuration of the component is not marked with the above flag and it is not an active configuration, then it cannot be loaded in Large Design Review. In this case macro will load the default configuration and display the below warning indicating that the graphics of different configuration is loaded.

Error with invalid configuration
Error with invalid configuration

Type DocumentInfo
    filePath As String
    Configuration As String
End Type

Type DmDrawingViewInfo
    viewName As String
    RefDocPath As String
    RefConfigName As String
End Type

Const DM_LIC_KEY As String = "YOUR LICENSE KEY"

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

try_:
    On Error GoTo catch_

    If Not swModel Is Nothing Then

        If swModel.GetType() = swDocumentTypes_e.swDocASSEMBLY Then
            If False = swModel.IsOpenedViewOnly Then
                Err.Raise vbError, "", "Active assembly is not opened in Large Design Review mode"
            End If
        ElseIf swModel.GetType() = swDocumentTypes_e.swDocDRAWING Then
            Dim swDraw As SldWorks.DrawingDoc
            Set swDraw = swModel
            If False = swDraw.IsDetailingMode Then
                Err.Raise vbError, "", "Active drawing is not opened in Detailing mode"
            End If
        Else
            Err.Raise vbError, "", "Active document is not an assembly or drawing"
        End If

        Dim swDocsInfo() As DocumentInfo

        swDocsInfo = GetReferenceDocuments(swModel)

        OpenDocuments swModel, swDocsInfo

        GoTo finally_

    Else
        Err.Raise vbError, "", "Please open assembly or drawing document"
    End If

catch_:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally_:

End Sub

Sub OpenDocuments(model As SldWorks.ModelDoc2, docsInfo() As DocumentInfo)

    If Not IsDocsInfoEmpty(docsInfo) Then

        Dim i As Integer

        For i = 0 To UBound(docsInfo)

            Dim swDocInfo As DocumentInfo
            swDocInfo = docsInfo(i)

            Dim compPath As String
            compPath = ResolveReferencePath(model.GetPathName(), swDocInfo.filePath)

            Dim swDocSpec As SldWorks.DocumentSpecification
            Set swDocSpec = swApp.GetOpenDocSpec(compPath)

            swDocSpec.ConfigurationName = swDocInfo.Configuration
            swDocSpec.ViewOnly = True

            Dim swRefModel As SldWorks.ModelDoc2
            Set swRefModel = swApp.OpenDoc7(swDocSpec)

            If swRefModel Is Nothing And swDocSpec.Error = swFileLoadError_e.swFileRequiresRepairError Then

                swDocSpec.ConfigurationName = ""
                Set swRefModel = swApp.OpenDoc7(swDocSpec)

                If Not swRefModel Is Nothing Then

                    Dim swModelView As SldWorks.ModelView
                    Set swModelView = swRefModel.ActiveView

                    Dim vViewBox As Variant

                    vViewBox = swModelView.GetVisibleBox

                    Dim activeConfName As String
                    activeConfName = swApp.GetActiveConfigurationName(compPath)

                    If LCase(activeConfName) <> LCase(swDocInfo.Configuration) Then
                        swApp.ShowBubbleTooltipAt2 vViewBox(0), vViewBox(1), swArrowPosition.swArrowLeftTop, _
                            "CodeStack", _
                            "Referenced configuration '" & swDocInfo.Configuration & "' of the assembly does not have a 'Display Data Mark' and was opened in the active configuration '" & activeConfName & "'", _
                            swBitMaps.swBitMapTreeError, "", "", 0, swLinkString.swLinkStringNone, "", ""
                    End If

                End If

            End If

            If swRefModel Is Nothing Then
                Err.Raise vbError, "", "Failed to open component. Error code: " & swDocSpec.Error
            End If

        Next

    Else
        Err.Raise vbError, "", "No component selected"
    End If

End Sub

Function GetReferenceDocuments(model As SldWorks.ModelDoc2) As DocumentInfo()

    Dim swDocsInfo() As DocumentInfo

    Dim i As Integer

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = model.SelectionManager

    Dim viewInfo() As DmDrawingViewInfo

    If model.GetType() = swDocumentTypes_e.swDocDRAWING Then
        viewInfo = GetDmDrawingViews(model.GetPathName())
    End If

    For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)

        Dim path As String
        Dim confName As String

        If swSelMgr.GetSelectedObjectType3(i, -1) = swSelectType_e.swSelCOMPONENTS Then

            Dim swComp As SldWorks.Component2
            Set swComp = swSelMgr.GetSelectedObject6(i, -1)

            path = swComp.GetPathName()
            confName = swComp.ReferencedConfiguration

        ElseIf swSelMgr.GetSelectedObjectType3(i, -1) = swSelectType_e.swSelDRAWINGVIEWS Then

            Dim swView As SldWorks.View
            Set swView = swSelMgr.GetSelectedObject6(i, -1)

            GetViewReferencedDocumentInfo viewInfo, swView.Name, path, confName

        End If

        If path <> "" Then

            Dim unique As Boolean
            unique = False

            If IsDocsInfoEmpty(swDocsInfo) Then
                ReDim swDocsInfo(0)
                unique = True
            Else
                unique = Not ContainsDocumentInfo(swDocsInfo, path)
                If True = unique Then
                    ReDim Preserve swDocsInfo(UBound(swDocsInfo) + 1)
                End If
            End If

            If True = unique Then
                swDocsInfo(UBound(swDocsInfo)).filePath = path
                swDocsInfo(UBound(swDocsInfo)).Configuration = confName
            End If

        End If

    Next

    GetReferenceDocuments = swDocsInfo

End Function

Function GetDmDrawingViews(drwFilePath As String) As DmDrawingViewInfo()

    Dim viewInfos() As DmDrawingViewInfo

    Dim swDmApp As SwDocumentMgr.SwDMApplication4

    Dim swClassFact As SwDocumentMgr.SwDMClassFactory

    Set swClassFact = New SwDocumentMgr.SwDMClassFactory

    Set swDmApp = swClassFact.GetApplication(DM_LIC_KEY)

    If Not swDmApp Is Nothing Then

        Dim swDmDoc As SwDocumentMgr.SwDMDocument10

        Dim res As SwDmDocumentOpenError

        Set swDmDoc = swDmApp.GetDocument(drwFilePath, swDmDocumentDrawing, True, res)

        If Not swDmDoc Is Nothing Then

            Dim searchOpts As SwDocumentMgr.SwDMSearchOption
            Set searchOpts = swDmApp.GetSearchOptionObject
            searchOpts.SearchFilters = SwDmSearchFilters.SwDmSearchExternalReference + SwDmSearchFilters.SwDmSearchRootAssemblyFolder + SwDmSearchFilters.SwDmSearchSubfolders + SwDmSearchFilters.SwDmSearchInContextReference

            Dim vFilePaths As Variant

            vFilePaths = swDmDoc.GetAllExternalReferences2(searchOpts, Empty)

            Dim vViews As Variant
            vViews = swDmDoc.GetViews

            ReDim viewInfos(UBound(vViews))

            Dim i As Integer

            For i = 0 To UBound(vViews)
                Dim swDmView As SwDocumentMgr.SwDMView2
                Set swDmView = vViews(i)
                viewInfos(i).viewName = swDmView.Name
                viewInfos(i).RefConfigName = swDmView.ReferencedConfiguration
                viewInfos(i).RefDocPath = FindPathByFileName(vFilePaths, swDmView.ReferencedDocument)
            Next

            swDmDoc.CloseDoc

            GetDmDrawingViews = viewInfos

        Else
            Err.Raise vbError, "", "Failed to open the drawing document in Document Manager. Error code: " & res
        End If

    Else
        Err.Raise vbError, "", "Failed to connect to Document Manager application"
    End If

End Function

Function GetViewReferencedDocumentInfo(viewInfo() As DmDrawingViewInfo, viewName As String, ByRef path As String, ByRef confName As String)

    Dim i As Integer

    For i = 0 To UBound(viewInfo)
        If LCase(viewInfo(i).viewName) = LCase(viewName) Then
            path = viewInfo(i).RefDocPath
            confName = viewInfo(i).RefConfigName
            Exit Function
        End If

    Next

    Err.Raise vbError, "", "Failed to find drawing view information"

End Function

Function IsDocsInfoEmpty(docsInfo() As DocumentInfo)
    IsDocsInfoEmpty = ((Not docsInfo) = -1)
End Function

Function FindPathByFileName(vFilePaths As Variant, fileName As String) As String

    Dim i As Integer

    For i = 0 To UBound(vFilePaths)
        Dim filePath As String
        filePath = vFilePaths(i)

        Dim thisFileName As String
        thisFileName = Right(filePath, InStrRev(filePath, "\") + 1)

        If LCase(thisFileName) = LCase(fileName) Then
            FindPathByFileName = filePath
            Exit Function
        End If

    Next

    Err.Raise vbError, "", "Failed to find the path by file name"

End Function

Function ContainsDocumentInfo(docsInfo() As DocumentInfo, path As String) As Boolean

    Dim i As Integer

    For i = 0 To UBound(docsInfo)
        If LCase(path) = LCase(docsInfo(i).filePath) Then
            ContainsDocumentInfo = True
            Exit Function
        End If
    Next

    ContainsDocumentInfo = False

End Function

Function ResolveReferencePath(rootDocPath As String, refPath As String) As String

    Dim pathParts As Variant
    pathParts = Split(refPath, "\")

    Dim rootFolder As String
    rootFolder = rootDocPath
    rootFolder = Left(rootFolder, InStrRev(rootFolder, "\") - 1)

    Dim i As Integer

    Dim curRelPath As String

    For i = UBound(pathParts) To 1 Step -1

        curRelPath = pathParts(i) & IIf(curRelPath <> "", "\", "") & curRelPath
        Dim path As String
        path = rootFolder & "\" & curRelPath

        If Dir(path) <> "" Then
            ResolveReferencePath = path
            Exit Function
        End If

    Next

    ResolveReferencePath = refPath

End Function
