Macro to change the Bill Of Materials options (Part Number source and children visibility) of SOLIDWORKS configuration

This VBA macro allows to change the options of the configuration regarding the processing in the Bill Of Materials

Part Number Source
- Configuration name
- Document name
- Parent name
Children Components Display
- Show
- Hide
- Promote

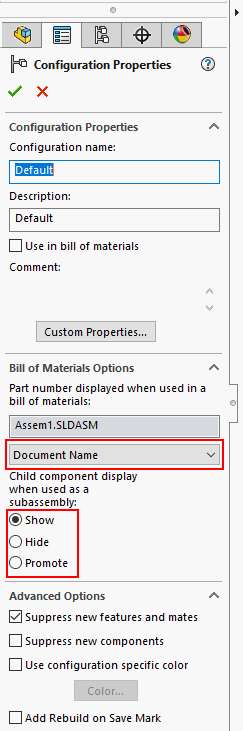

Configuration options Property Manager Page

Macro can process active configuration only or all configurations

Configure the macro by changing its constants

Specify -1 for PART_NUMBER_SRC or CHILD_COMPS_DISP options to keep original values or new value to override

Const ALL_CONFIGS As Boolean = True 'True to process all configurations, False to process active configuration only
Const PART_NUMBER_SRC As Integer = swBOMPartNumberSource_e.swBOMPartNumber_ConfigurationName 'Part number source: -1 to keep as is or swBOMPartNumberSource_e.swBOMPartNumber_ConfigurationName, swBOMPartNumberSource_e.swBOMPartNumber_DocumentName or swBOMPartNumberSource_e.swBOMPartNumber_ParentName
Const CHILD_COMPS_DISP As Integer = swChildComponentInBOMOption_e.swChildComponent_Promote 'Display of components in BOM: -1 to keep as is or swChildComponentInBOMOption_e.swChildComponent_Show, swChildComponentInBOMOption_e.swChildComponent_Hide or swChildComponentInBOMOption_e.swChildComponent_Promote

Const ALL_CONFIGS As Boolean = True
Const PART_NUMBER_SRC As Integer = swBOMPartNumberSource_e.swBOMPartNumber_ConfigurationName
Const CHILD_COMPS_DISP As Integer = swChildComponentInBOMOption_e.swChildComponent_Promote

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If swModel Is Nothing Then
        Err.Raise vbError, "", "Open document"
    End If

    If swModel.GetType() = swDocumentTypes_e.swDocDRAWING Then
        Err.Raise vbError, "", "Drawings are not supported"
    End If

    If ALL_CONFIGS Then

        Dim vConfNames As Variant

        vConfNames = swModel.GetConfigurationNames
        Dim i As Integer

        For i = 0 To UBound(vConfNames)
            Dim swConf As SldWorks.Configuration
            Set swConf = swModel.GetConfigurationByName(CStr(vConfNames(i)))
            SetConfigurationBomOptions swConf
        Next

    Else
        SetConfigurationBomOptions swModel.ConfigurationManager.ActiveConfiguration
    End If

End Sub

Sub SetConfigurationBomOptions(config As SldWorks.Configuration)

    If CHILD_COMPS_DISP <> -1 Then
        config.ChildComponentDisplayInBOM = CHILD_COMPS_DISP
    End If

    If PART_NUMBER_SRC <> -1 Then
        config.BOMPartNoSource = PART_NUMBER_SRC
    End If

End Sub
