Export dimensions information from SOLIDWORKS drawing to CSV file

Edit ArticleEdit Article
More 'Goodies'

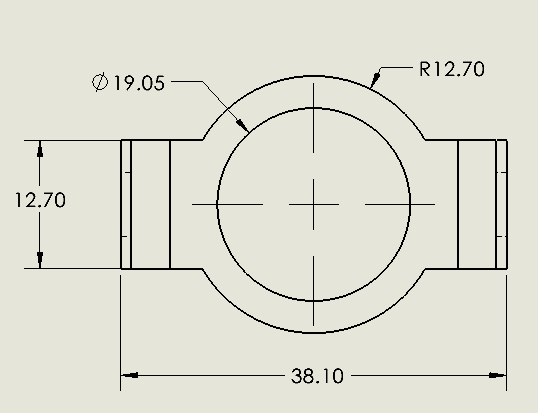

Dimensions in the drawing view
Dimensions in the drawing view

This VBA macro allows to export information of all dimensions in the active drawing to the CSV file which can be opened by Excel.

Macro includes the following information into the report:

  • Name - full name of the dimension
  • Owner - name of the drawing view or sheet this dimension belongs to
  • Type - type of the dimension (e.g. linear, angular, ordinate, etc.)
  • X - X position of the dimension in the current drawing units
  • Y - Y position of the dimension in the current drawing units
  • Value - value of the dimension in the current units
  • Grid Ref - reference of this dimension in the drawing grid (e.g. A5)
  • Tolerance - type of the tolerance assigned to this dimension (e.g. basic, symmetric, etc.)
  • Min - Minimum value of the tolerance in the current units
  • Max - Maximum value of the tolerance in the current units

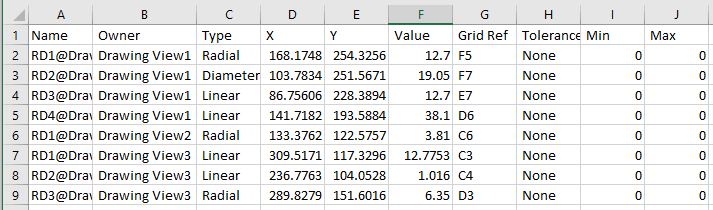

Dimensions information opened in Excel
Dimensions information opened in Excel

Output file is saved into the same folder as original drawing and named [drawing name]-dimensions.csv

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

try_:
    On Error GoTo catch_:

    Dim swDraw As SldWorks.DrawingDoc

    Set swDraw = swApp.ActiveDoc

    If swDraw Is Nothing Then
        Err.Raise vbError, "", "Please open drawing"
    End If

    ExportDrawingDimensions swDraw

    GoTo finally_

catch_:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally_:

End Sub

Sub ExportDrawingDimensions(draw As SldWorks.DrawingDoc)

    Dim vSheets As Variant
    vSheets = draw.GetViews

    Dim fileNmb As Integer
    fileNmb = FreeFile

    Dim filePath As String
    filePath = draw.GetPathName

    If filePath = "" Then
        Err.Raise vbError, "", "Please save drawing document"
    End If

    filePath = Left(filePath, InStrRev(filePath, ".") - 1) & "-dimensions.csv"

    Open filePath For Output As #fileNmb

    Dim header As String
    header = Join("Name", "Owner", "Type", "X", "Y", "Value", "Grid Ref", "Tolerance", "Min", "Max")

    Print #fileNmb, header

    Dim i As Integer

    For i = 0 To UBound(vSheets)

        Dim vViews As Variant
        vViews = vSheets(i)

        Dim j As Integer

        For j = 0 To UBound(vViews)

            Dim swView As SldWorks.view
            Set swView = vViews(j)

            ExportViewDimensions swView, draw, fileNmb

        Next

    Next

    Close #fileNmb

End Sub

Sub ExportViewDimensions(view As SldWorks.view, draw As SldWorks.DrawingDoc, fileNmb As Integer)

    Dim swDispDim As SldWorks.DisplayDimension
    Set swDispDim = view.GetFirstDisplayDimension5

    Dim swSheet As SldWorks.Sheet

    Set swSheet = view.Sheet

    If swSheet Is Nothing Then
        Set swSheet = draw.Sheet(view.name)
    End If

    While Not swDispDim Is Nothing

        Dim swAnn As SldWorks.Annotation
        Set swAnn = swDispDim.GetAnnotation

        Dim vPos As Variant
        vPos = swAnn.GetPosition()

        Dim swDim As SldWorks.dimension
        Set swDim = swDispDim.GetDimension2(0)

        Dim drwZone As String
        drwZone = swSheet.GetDrawingZone(vPos(0), vPos(1))
        vPos = GetPositionInDrawingUnits(vPos, draw)

        Dim tolType As String
        Dim minVal As Double
        Dim maxVal As Double

        GetDimensionTolerance draw, swDim, tolType, minVal, maxVal

        OutputDimensionData fileNmb, swDim.FullName, view.name, GetDimensionType(swDispDim), CDbl(vPos(0)), CDbl(vPos(1)), _
                CDbl(swDim.GetValue3(swInConfigurationOpts_e.swThisConfiguration, Empty)(0)), _
                drwZone, tolType, minVal, maxVal

        Set swDispDim = swDispDim.GetNext5

    Wend

End Sub

Function GetPositionInDrawingUnits(pos As Variant, draw As SldWorks.DrawingDoc) As Variant

    Dim dPt(1) As Double
    dPt(0) = ConvertToUserUnits(draw, CDbl(pos(0)), swLengthUnit)
    dPt(1) = ConvertToUserUnits(draw, CDbl(pos(1)), swLengthUnit)

    GetPositionInDrawingUnits = dPt

End Function

Function ConvertToUserUnits(model As SldWorks.ModelDoc2, val As Double, unitType As swUserUnitsType_e) As Double

    Dim swUserUnit As SldWorks.UserUnit
    Set swUserUnit = model.GetUserUnit(unitType)

    Dim convFactor As Double
    convFactor = swUserUnit.GetConversionFactor()

    ConvertToUserUnits = val * convFactor

End Function


Function GetDimensionType(dispDim As SldWorks.DisplayDimension) As String

    Select Case dispDim.Type2
        Case swDimensionType_e.swAngularDimension
            GetDimensionType = "Angular"
        Case swDimensionType_e.swArcLengthDimension
            GetDimensionType = "ArcLength"
        Case swDimensionType_e.swChamferDimension
            GetDimensionType = "Chamfer"
        Case swDimensionType_e.swDiameterDimension
            GetDimensionType = "Diameter"
        Case swDimensionType_e.swDimensionTypeUnknown
            GetDimensionType = "Unknown"
        Case swDimensionType_e.swHorLinearDimension
            GetDimensionType = "HorLinear"
        Case swDimensionType_e.swHorOrdinateDimension
            GetDimensionType = "HorOrdinate"
        Case swDimensionType_e.swLinearDimension
            GetDimensionType = "Linear"
        Case swDimensionType_e.swOrdinateDimension
            GetDimensionType = "Ordinate"
        Case swDimensionType_e.swRadialDimension
            GetDimensionType = "Radial"
        Case swDimensionType_e.swScalarDimension
            GetDimensionType = "Scalar"
        Case swDimensionType_e.swVertLinearDimension
            GetDimensionType = "VertLinear"
        Case swDimensionType_e.swVertOrdinateDimension
            GetDimensionType = "VertOrdinate"
        Case swDimensionType_e.swZAxisDimension
            GetDimensionType = "ZAxis"
    End Select

End Function

Sub GetDimensionTolerance(draw As SldWorks.DrawingDoc, swDim As SldWorks.dimension, ByRef tolType As String, ByRef minVal As Double, ByRef maxVal As Double)

    Dim swTol As SldWorks.DimensionTolerance
    Set swTol = swDim.Tolerance

    Select Case swTol.Type
        Case swTolType_e.swTolBASIC
            tolType = "Basic"
        Case swTolType_e.swTolBILAT
            tolType = "Bilat"
        Case swTolType_e.swTolBLOCK
            tolType = "Block"
        Case swTolType_e.swTolFIT
            tolType = "Fit"
        Case swTolType_e.swTolFITTOLONLY
            tolType = "FitTolOnly"
        Case swTolType_e.swTolFITWITHTOL
            tolType = "FitWithTol"
        Case swTolType_e.swTolGeneral
            tolType = "General"
        Case swTolType_e.swTolLIMIT
            tolType = "Limit"
        Case swTolType_e.swTolMAX
            tolType = "Max"
        Case swTolType_e.swTolMETRIC
            tolType = "Metric"
        Case swTolType_e.swTolMIN
            tolType = "Min"
        Case swTolType_e.swTolNONE
            tolType = "None"
        Case swTolType_e.swTolSYMMETRIC
            tolType = "Symmetric"
    End Select

    swTol.GetMinValue2 minVal
    swTol.GetMaxValue2 maxVal

    Dim unitType As swUserUnitsType_e

    If swDim.GetType() = swDimensionParamType_e.swDimensionParamTypeDoubleAngular Then
        unitType = swUserUnitsType_e.swAngleUnit
    Else
        unitType = swUserUnitsType_e.swLengthUnit
    End If

    minVal = ConvertToUserUnits(draw, minVal, unitType)
    maxVal = ConvertToUserUnits(draw, maxVal, unitType)

End Sub

Sub OutputDimensionData(fileNmb As Integer, dimName As String, owner As String, dimType As String, x As Double, y As Double, value As Double, gridRef As String, tol As String, min As Double, max As Double)

    Dim line As String
    line = Join(dimName, owner, dimType, x, y, value, gridRef, tol, min, max)

    Print #fileNmb, line

End Sub

Function Join(ParamArray parts() As Variant) As String

    Dim res As String

    If Not IsEmpty(parts) Then
        Dim i As Integer
        For i = 0 To UBound(parts)
            res = res & IIf(i = 0, "", ", ") & parts(i)
        Next
    End If

    Join = res

End Function
