Get bodies and materials from drawing view using SOLIDWORKS API

Edit ArticleEdit Article

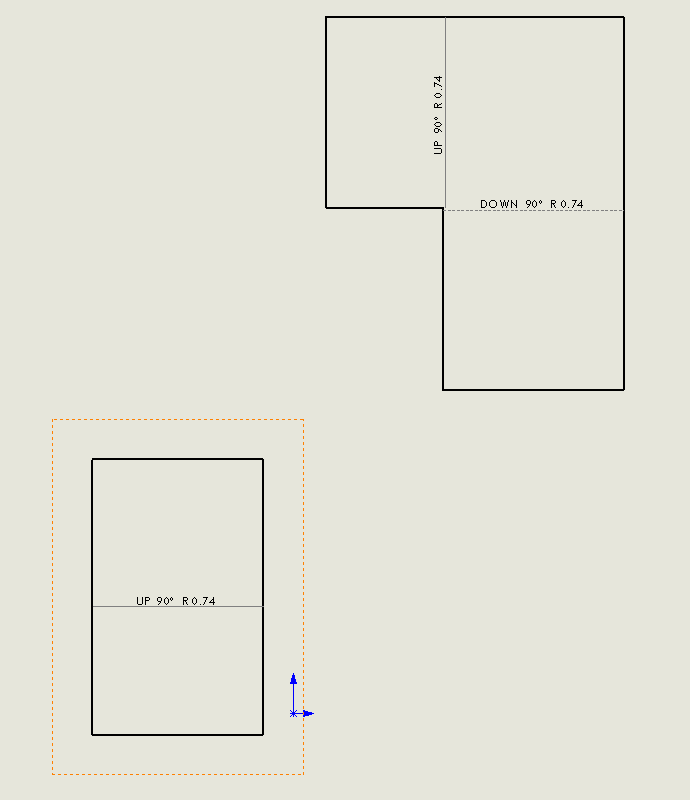

Flat pattern drawing views
Flat pattern drawing views

This VBA macro finds all bodies of the selected drawing view (including sheet metal flat pattern) and extracts their materials using SOLIDWORKS API.

IView::Bodies property finds the bodies of the drawing view, however this SOLIDWORKS API property returns Nothing for the drawing view created from sheet metal flat pattern.

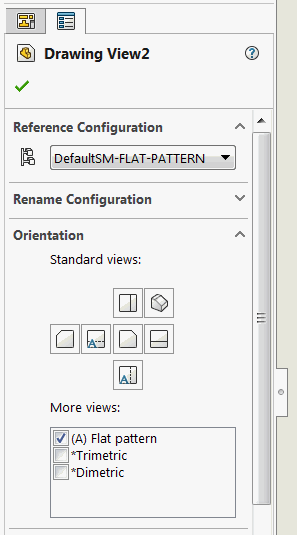

Flat pattern is set in the drawing view property page
Flat pattern is set in the drawing view property page

Macro below extracts bodies and finds the materials assigned to them in both cases (for regular parts and for sheet metal patterns). The result is output to Immediate window of VBA editor.

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swView As SldWorks.view
        Set swView = swModel.SelectionManager.GetSelectedObject6(1, -1)

        If Not swView Is Nothing Then

            Dim vBodies As Variant
            vBodies = GetBodies(swView)

            Dim i As Integer

            For i = 0 To UBound(vBodies)

                Dim swBody As SldWorks.Body2
                Set swBody = vBodies(i)

                Dim matDb As String
                Dim matName As String

                matName = swBody.GetMaterialPropertyName(swView.ReferencedConfiguration, matDb)

                Debug.Print swView.Name & " - " & swBody.Name & " - " & matName & " - " & matDb

            Next

        Else
            MsgBox "Please select view"
        End If

    Else
        MsgBox "Please open model"
    End If

End Sub

Function GetBodies(view As SldWorks.view) As Variant

    If view.IsFlatPatternView() Then

        Dim vComps As Variant
        vComps = view.GetVisibleComponents()

        'Flat pattern can be only created for a single body (either single body part or select body for multi-body part)
        Dim swComp As SldWorks.Component2
        Set swComp = vComps(0)

        Dim vFaces As Variant
        vFaces = view.GetVisibleEntities2(swComp, swViewEntityType_e.swViewEntityType_Face)

        Dim swFace As SldWorks.Face2
        Set swFace = vFaces(0)

        Dim swBodies(0) As SldWorks.Body2
        Set swBodies(0) = swFace.GetBody()

        GetBodies = swBodies

    Else
        GetBodies = view.Bodies
    End If

End Function
