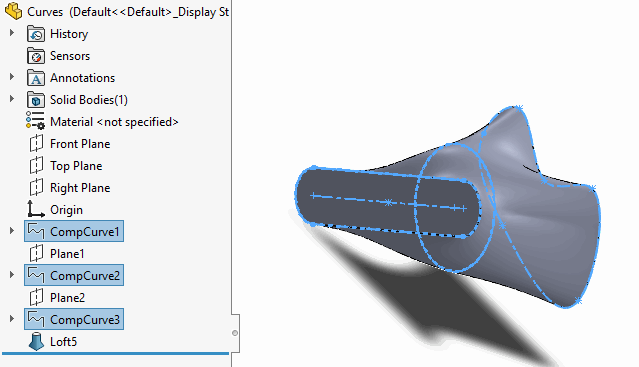

Loft feature through curves
Loft feature through curves

This VBA macro demonstrates how to utilize IFeatureManager::InsertProtrusionBlend2 API to create loft feature from the selected sketches or curves features selected in the Feature Manager Tree.

Dim swApp As SldWorks.SldWorks

Sub main()

    Dim swModel As SldWorks.ModelDoc2
    Dim swSelMgr As SldWorks.SelectionMgr

    Set swApp = Application.SldWorks
    Set swModel = swApp.ActiveDoc

    Set swSelMgr = swModel.SelectionManager

    Dim swFeats() As SldWorks.Feature
    ReDim swFeats(swSelMgr.GetSelectedObjectCount2(-1) - 1)

    Dim i As Integer

    For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)
        Dim swFeat As SldWorks.Feature
        Set swFeat = swSelMgr.GetSelectedObject6(i, -1)
        Set swFeats(i - 1) = swFeat
    Next

    Dim swSelData As SldWorks.SelectData
    Set swSelData = swSelMgr.CreateSelectData

    swSelData.Mark = 1

    If swModel.Extension.MultiSelect2(swFeats, False, swSelData) <> UBound(swFeats) + 1 Then
        Err.Raise vbError, "", "Failed to selected profiles"
    End If

    Const CONSTRAINT_DEFAULT As Integer = 6
    Const THIN_TYPE_ONE_DIR As Integer = 0

    swModel.FeatureManager.InsertProtrusionBlend2 False, True, False, 1, CONSTRAINT_DEFAULT, CONSTRAINT_DEFAULT, 1, 1, True, True, False, 0, 0, THIN_TYPE_ONE_DIR, True, True, True, swGuideCurveInfluence_e.swGuideCurveInfluenceNextGuide

End Sub
