This VBA example demonstrates how to create macro feature which generates custom geometry.

Open part document and run the macro. New feature is inserted in the Feature Manager tree and box geometry is generated either as solid, sheet or wire body.

Configuration

Embedding

Set the value of EMBED_MACRO_FEATURE constant to specify if macro feature should be embedded to file or not. If this option set to True then part document can be opened on any other computer and the geometry will be present without the need to copy the macro.

Box Size

Size of the box can be configured by changing the WIDTH, LENGTH and HEIGHT constants:

Const WIDTH As Double = 0.01
Const LENGTH As Double = 0.01
Const HEIGHT As Double = 0.01

Body Type

Generated body type can be set by assigning the value to BODY_TYPE constant

swBodyType_e.swSolidBody

Creates a box as a solid body geometry.

Macro feature generates solid body
Macro feature generates solid body

swBodyType_e.swSheetBody

Creates a single surface body by sewing the faces of the box.

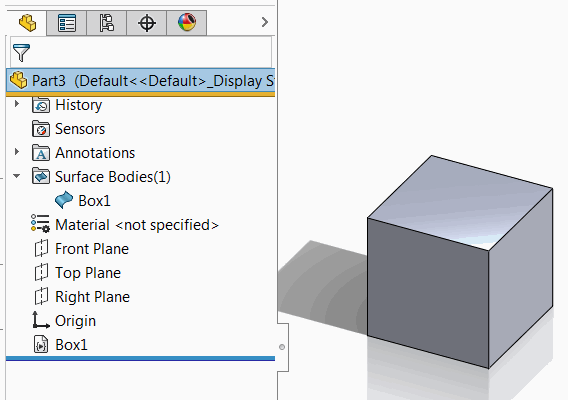

Macro feature generates surface (sheet) body
Macro feature generates surface (sheet) body

swBodyType_e.swWireBody

Creates wire bodies from all edges of the box geometry. Wire bodies are edges and not presented in the bodies folders. Example of wire bodies used in standard feature tree are curves (composite, through XYZ, projected etc.)

Macro feature generates wire body
Macro feature generates wire body
Const BODY_TYPE As Integer = swBodyType_e.swSolidBody
Const EMBED_MACRO_FEATURE As Boolean = False
Const BASE_NAME As String = "Box"

Const WIDTH As Double = 0.01
Const LENGTH As Double = 0.01
Const HEIGHT As Double = 0.01

Sub main()

    Dim swApp As SldWorks.SldWorks
    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim curMacroPath As String
        curMacroPath = swApp.GetCurrentMacroPathName

        Dim vMethods(8) As String
        Dim moduleName As String

        GetMacroEntryPoint swApp, curMacroPath, moduleName, ""

        vMethods(0) = curMacroPath: vMethods(1) = moduleName: vMethods(2) = "swmRebuild"
        vMethods(3) = curMacroPath: vMethods(4) = moduleName: vMethods(5) = "swmEditDefinition"
        vMethods(6) = curMacroPath: vMethods(7) = moduleName: vMethods(8) = "swmSecurity"

        Dim opts As swMacroFeatureOptions_e

        If EMBED_MACRO_FEATURE Then
            opts = swMacroFeatureOptions_e.swMacroFeatureEmbedMacroFile
        Else
            opts = swMacroFeatureOptions_e.swMacroFeatureByDefault
        End If

        Dim swFeat As SldWorks.Feature
        Set swFeat = swModel.FeatureManager.InsertMacroFeature3(BASE_NAME, "", vMethods, _
            Empty, Empty, Empty, Empty, Empty, Empty, _
            Empty, opts)

        If swFeat Is Nothing Then
            MsgBox "Failed to create box feature"
        End If

    Else
        MsgBox "Please open model"
    End If

End Sub

Sub GetMacroEntryPoint(app As SldWorks.SldWorks, macroPath As String, ByRef moduleName As String, ByRef procName As String)

    Dim vMethods As Variant
    vMethods = app.GetMacroMethods(macroPath, swMacroMethods_e.swMethodsWithoutArguments)

    Dim i As Integer

    If Not IsEmpty(vMethods) Then

        For i = 0 To UBound(vMethods)
            Dim vData As Variant
            vData = Split(vMethods(i), ".")

            If i = 0 Or LCase(vData(1)) = "main" Then
                moduleName = vData(0)
                procName = vData(1)
            End If
        Next

    End If

End Sub

Function swmRebuild(varApp As Variant, varDoc As Variant, varFeat As Variant) As Variant

    Dim swApp As SldWorks.SldWorks
    Dim swModeler As SldWorks.Modeler

    Set swApp = varApp
    Set swModeler = swApp.GetModeler

    Dim swTemplateBody As SldWorks.Body2

    Dim dCenter(2) As Double
    dCenter(0) = 0: dCenter(1) = 0: dCenter(2) = 0

    Dim dAxis(2) As Double
    dAxis(0) = 0: dAxis(1) = 0: dAxis(2) = 1

    Dim dBoxData(8) As Double
    dBoxData(0) = dCenter(0): dBoxData(1) = dCenter(1): dBoxData(2) = dCenter(2)
    dBoxData(3) = dAxis(0): dBoxData(4) = dAxis(1): dBoxData(5) = dAxis(2)
    dBoxData(6) = WIDTH: dBoxData(7) = LENGTH: dBoxData(8) = HEIGHT

    Set swTemplateBody = swModeler.CreateBodyFromBox3(dBoxData)

    Dim swBoxBody() As SldWorks.Body2

    Dim i As Integer

    Dim isInit As Boolean
    isInit = False

    Select Case BODY_TYPE
        Case swBodyType_e.swSolidBody
            isInit = True
            ReDim swBoxBody(0) As SldWorks.Body2
            Set swBoxBody(0) = swTemplateBody
        Case swBodyType_e.swSheetBody
            isInit = True
            ReDim swBoxBody(0) As SldWorks.Body2
            Set swBoxBody(0) = swModeler.CreateSheetFromFaces(swTemplateBody.GetFaces())
        Case swBodyType_e.swWireBody
            isInit = True

            Dim vEdges As Variant

            vEdges = swTemplateBody.GetEdges()

            ReDim swBoxBody(UBound(vEdges)) As SldWorks.Body2

            For i = 0 To swTemplateBody.GetEdgeCount() - 1
                Dim swEdge(0) As SldWorks.Edge
                Set swEdge(0) = vEdges(i)
                Set swBoxBody(i) = swModeler.CreateWireBody(swEdge, swCreateWireBodyOptions_e.swCreateWireBodyByDefault)
            Next
    End Select

    If isInit Then

        Dim swFeat As SldWorks.Feature
        Set swFeat = varFeat

        Dim swMacroFeatData As SldWorks.MacroFeatureData
        Set swMacroFeatData = swFeat.GetDefinition

        For i = 0 To UBound(swBoxBody)
            AssignUserIds swBoxBody(i), swMacroFeatData
        Next

        swMacroFeatData.EnableMultiBodyConsume = UBound(swBoxBody) > 0
        swmRebuild = swBoxBody

    Else
        swmRebuild = "Invalid body type. Only solid, sheet and wire body is supported"
    End If

End Function

Sub AssignUserIds(body As SldWorks.Body2, featData As SldWorks.MacroFeatureData)

    Dim vFaces As Variant
    Dim vEdges As Variant
    Dim i As Integer

    featData.GetEntitiesNeedUserId body, vFaces, vEdges

    If Not IsEmpty(vFaces) Then
        For i = 0 To UBound(vFaces)
            Dim swFace As SldWorks.Face2
            Set swFace = vFaces(i)
            featData.SetFaceUserId swFace, 0, i
        Next
    End If

    If Not IsEmpty(vEdges) Then
        For i = 0 To UBound(vEdges)
            Dim swEdge As SldWorks.Edge
            Set swEdge = vEdges(i)
            featData.SetEdgeUserId swEdge, 0, i
        Next
    End If

End Sub

Function swmEditDefinition(varApp As Variant, varDoc As Variant, varFeat As Variant) As Variant
    swmEditDefinition = True
End Function

Function swmSecurity(varApp As Variant, varDoc As Variant, varFeat As Variant) As Variant
    swmSecurity = SwConst.swMacroFeatureSecurityOptions_e.swMacroFeatureSecurityByDefault
End Function
