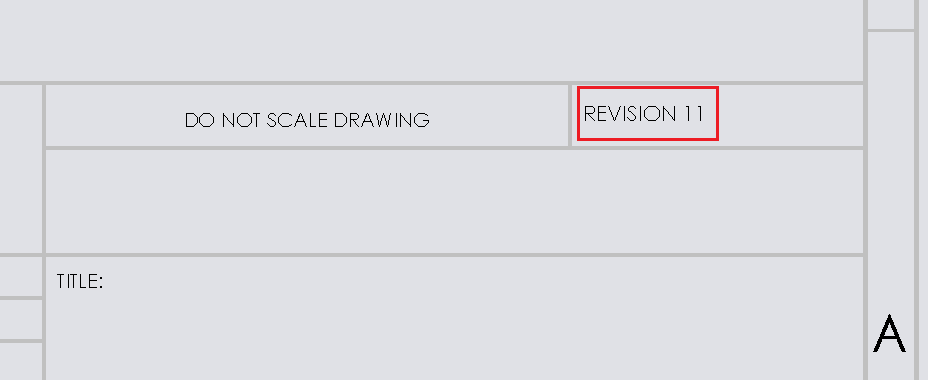

Revision number in the title block is incremented
Revision number in the title block is incremented

This macro increments the numeric value of the notes using SOLIDWORKS API. This can be useful if it required to increment the revision for note or notes without the need of manually selecting and changing the note. This macro can be also used in the batch processing software.

Revision in title block is incremented by running macro from the macro button
Revision in title block is incremented by running macro from the macro button

  • Numeric value is matched by specified regular expression. It is possible to modify the regular expression to match specific numeric values. Note can contain free text (in this case only numeric part will be updated as per specified regular expression)
  • It is required to add the text tag to the note in order to increment its value. Follow Add Tag To Selected Note example of instructions for adding the tag to the note.
  • By default the numeric value is incremented by 1, but this can be changed by modifying the value of increment parameter of the IncrementNoteValue function.

Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2

Sub main()

    Set swApp = Application.SldWorks

    Set swModel = swApp.ActiveDoc

    IncrementNoteValue "_CodeStackNote_", "\d+", 1

End Sub

Sub IncrementNoteValue(noteTag As String, pattern As String, increment As Double)

    Dim swNote As SldWorks.Note
    Set swNote = FindNodeByTag(swModel, noteTag)

    If Not swNote Is Nothing Then
        Dim newText As String
        newText = IncrementNumericMatches(swNote.GetText(), pattern, increment)
        swNote.SetText newText
    End If

End Sub

Function IncrementNumericMatches(text As String, pattern As String, increment As Double) As String

    Dim resultText As String
    resultText = text

    Dim regEx As Object
    Set regEx = CreateObject("VBScript.RegExp")

    regEx.Global = True
    regEx.IgnoreCase = True
    regEx.pattern = pattern

    Dim regExMatches As Object
    Set regExMatches = regEx.Execute(text)

    If regExMatches.Count > 0 Then

        Dim i As Integer

        Dim offset As Integer

        For i = 0 To regExMatches.Count - 1

            Dim regExMatch As Object
            Set regExMatch = regExMatches(i)

            Dim newValue As Double
            newValue = CDbl(regExMatch.Value) + increment

            resultText = Left(resultText, regExMatch.FirstIndex + offset) & newValue & Right(resultText, Len(resultText) - regExMatch.FirstIndex - regExMatch.Length - offset)

            offset = offset + Len(CStr(newValue)) - regExMatch.Length

        Next

    End If

    IncrementNumericMatches = resultText

End Function

Function FindNodeByTag(model As SldWorks.ModelDoc2, tag As String) As SldWorks.Note

    If tag <> "" Then

        Dim vAnnots As Variant
        vAnnots = model.Extension.GetAnnotations

        Dim swNote As SldWorks.Note
        Dim i As Integer

        If Not IsEmpty(vAnnots) Then

            For i = 0 To UBound(vAnnots)

                Dim swAnn As SldWorks.Annotation
                Set swAnn = vAnnots(i)

                If swAnn.GetType() = swAnnotationType_e.swNote Then
                    Set swNote = swAnn.GetSpecificAnnotation
                    If swNote.TagName = tag Then
                        Set FindNodeByTag = swNote
                        Exit Function
                    End If
                End If

            Next
        End If

        If model.GetType() = swDocumentTypes_e.swDocDRAWING Then

            Dim swDraw As SldWorks.DrawingDoc
            Set swDraw = model

            Dim vSheets As Variant
            vSheets = swDraw.GetViews()

            For i = 0 To UBound(vSheets)

                Dim vViews As Variant
                vViews = vSheets(i)

                Dim j As Integer

                For j = 0 To UBound(vViews)

                    Dim swView As SldWorks.View
                    Set swView = vViews(j)

                    Dim vNotes As Variant

                    vNotes = swView.GetNotes()

                    Dim k As Integer

                    For k = 0 To UBound(vNotes)

                        Set swNote = vNotes(k)

                        If swNote.TagName = tag Then
                            Set FindNodeByTag = swNote
                            Exit Function
                        End If

                    Next

                Next

            Next

        End If

    End If

End Function
