Select component in feature tree using its name via SOLIDWORKS API

Edit ArticleEdit Article

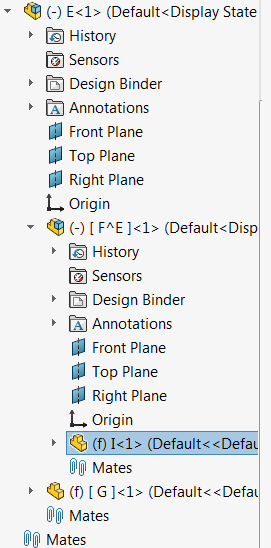

Multi-level tree of components
Multi-level tree of components

This example demonstrates the most performance efficient way to select a component on any level of the assembly by its full name using SOLIDWORKS API.

Name of the component is defined as a path where each level is separated by / symbol. Component instance id is specified with a - symbol (e.g. FirstLevelComp-1/SecondLevelComp-2/TargetComp-1)

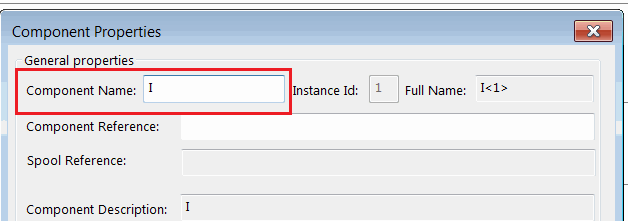

Component name can be found in the following dialog:

Component name in properties dialog
Component name in properties dialog

Refer Get Component By Name example for macro to retrieve the pointer to the component without the selection.

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks
    Dim swAssy As SldWorks.AssemblyDoc
    Set swAssy = swApp.ActiveDoc

    Debug.Print SelectComponentByName(swAssy, "E-1/F^E-1/I-1")

End Sub

Function SelectComponentByName(assy As SldWorks.AssemblyDoc, name As String) As Boolean
    Dim rootName As String
    rootName = assy.GetTitle()
    Dim extPos As Long
    extPos = InStr(rootName, ".")
    If extPos <> -1 Then
        rootName = Left(rootName, extPos - 1)
    End If
    Dim selByIdStr As String
    selByIdStr = ConvertToSelectByIDString(rootName, name)
    SelectComponentByName = assy.Extension.SelectByID2(selByIdStr, "COMPONENT", 0, 0, 0, False, -1, Nothing, swSelectOption_e.swSelectOptionDefault)
End Function

Function ConvertToSelectByIDString(rootName As String, name As String) As String

    Dim vNameParts As Variant
    vNameParts = Split(name, "/")
    Dim prevParentName As String
    prevParentName = rootName
    Dim selByIdStr As String
    Dim i As Integer
    For i = 0 To UBound(vNameParts)
        Dim curPartName As String
        curPartName = vNameParts(i)
        If selByIdStr <> "" Then
            selByIdStr = selByIdStr & "/"
        End If
        selByIdStr = selByIdStr & curPartName & "@" & prevParentName
        prevParentName = Left(curPartName, InStrRev(curPartName, "-") - 1)
    ConvertToSelectByIDString = selByIdStr
End Function
