Persistent reference ids available in SOLIDWORKS API allow to retrieve the persistent link to any selectable object in SOLIDWORKS. The main benefit of persistent reference is its life cycle as the reference remains valid across rebuild operations, SOLIDWORKS sessions or even SOLIDWORKS releases.

Persistent reference id is an array of bytes. This array may change for the same reference so it is not possible to compare two arrays to identify if the references are the same. Use IModelDocExtension::IsSamePersistentID method to identify if two persist references are the same.

Array of bytes of persist reference displayed in the watch window of VBA Editor
Array of bytes of persist reference displayed in the watch window of VBA Editor

Even if array may change for the same entity it is still possible to retrieve the valid pointer to the entity via IModelDocExtension::GetPersistReference3 SOLIDWORKS API method.

The following example outputs the persist id of any selected entity into immediate window in the format of base64 string

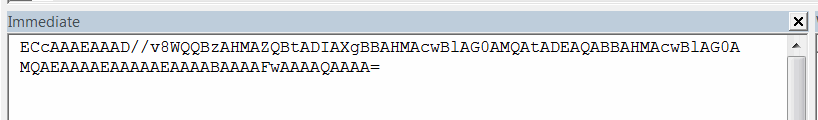

Persist reference id converted to base64 string displayed in the immediate window of VBA Editor
Persist reference id converted to base64 string displayed in the immediate window of VBA Editor

Use this example to read the id of the entity.

The id output to immediate Window might contain line break. It should be removed from the id and should be considered as single line string

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSelMgr As SldWorks.SelectionMgr
        Set swSelMgr = swModel.SelectionManager

        Dim swObj As Object
        Set swObj = swSelMgr.GetSelectedObject6(1, -1)

        If Not swObj Is Nothing Then
            Dim vId As Variant
            vId = swModel.Extension.GetPersistReference3(swObj)
            Debug.Print ConvertToBase64String(vId)
        Else
            MsgBox "Please select object to get its persist id"
        End If

    Else
        MsgBox "Please open the model"
    End If

End Sub

Function ConvertToBase64String(vArr As Variant) As String

    Dim xmlDoc As Object
    Dim xmlNode As Object

    Set xmlDoc = CreateObject("MSXML2.DOMDocument")

    Set xmlNode = xmlDoc.createElement("b64")

    xmlNode.DataType = "bin.base64"
    xmlNode.nodeTypedValue = vArr

    ConvertToBase64String = xmlNode.Text

End Function

The following example allows to select the object by retrieving its pointer from persist id.

  • Copy the id from the previous macro
  • Close the sample model
  • Reopen the model and run the example.
  • Enter the copied id into the box
  • The entities selected in previous example is re-selected
Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim id As String
        id = InputBox("Enter persist id encoded in base64 format")

        If id <> "" Then

            Dim vId As Variant
            vId = Base64ToArray(id)

            Dim swObj As Object
            Dim err As Long

            Set swObj = swModel.Extension.GetObjectByPersistReference3(vId, err)

            If Not swObj Is Nothing Then
                Dim swSelObj(0) As Object
                Set swSelObj(0) = swObj
                swModel.Extension.MultiSelect2 swSelObj, False, Nothing
            Else
                MsgBox "Failed to get the object by persist reference. Error code " & err & " as defined in swPersistReferencedObjectStates_e"
            End If

        End If

    Else
        MsgBox "Please open the model"
    End If

End Sub

Private Function Base64ToArray(base64 As String) As Variant

    Dim xmlDoc As Object
    Dim xmlNode As Object

    Set xmlDoc = CreateObject("MSXML2.DOMDocument")
    Set xmlNode = xmlDoc.createElement("b64")

    xmlNode.DataType = "bin.base64"
    xmlNode.Text = base64

    Base64ToArray = xmlNode.nodeTypedValue

End Function
