Tracking ids are used to map (track) entities across geometrical operations such as merge, subtract, copy, split, pattern while developing macros and applications using SOLIDWORKS API.

Tracking ids can be applied to faces, edges, loops, vertices and bodies.

Tracking ids are assigned temporarily until the model rebuilt.

Mainly the tracking ids are used for operations with temp bodies when it is required to track specific elements when the body get changed. Usually this is required in macro features.

Following example demonstrates the use of tracking ids from SOLIDWORKS API to track and map the user selected faces to the copied merged body.

  • Download Example File or use any other part document
  • Select at least one face. It is recommended to select at least two faces from the different bodies which are overlapping each other. This would allow to demonstrate the benefit of tracking ids as body will be merged.
  • Run the macro.

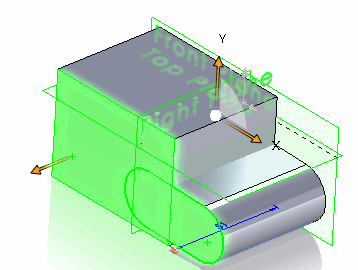

Two faces of two solid bodies selected in the graphics view
Two faces of two solid bodies selected in the graphics view

Macro will perform the following steps

  • Collect all selected faces
  • Find all bodies from the selected faces
  • Clear all existing tracking ids if any
  • Make a copy of the bodies
  • Merge all bodies into one
  • Create new part document
  • Create new body from the merged copy
  • Find the faces which correspond to originally selected faces
  • Select those corresponding faces in the merged body

Copy of the single body created as the result of a merge operation with two faces selected
Copy of the single body created as the result of a merge operation with two faces selected

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim vFaces As Variant
        vFaces = GetAllSelectedFaces(swModel)

        If Not IsEmpty(vFaces) Then

            Dim trackingCookie As Long
            Dim vBodiesCopy As Variant

            vBodiesCopy = CopyBodiesAndTrackFaces(vFaces, trackingCookie)

            CreateMergedBodyAndSelectFaces trackingCookie, vBodiesCopy
        Else
            MsgBox "Please select at least one face"
        End If

    Else
        MsgBox "Please open the model"
    End If

End Sub

Function GetAllSelectedFaces(model As SldWorks.ModelDoc2) As Variant

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = model.SelectionManager

    Dim i As Integer

    Dim swFaces() As SldWorks.Face2

    Dim isArrInit As Boolean

    For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)

        On Error Resume Next

        Dim swFace As SldWorks.Face2
        Set swFace = swSelMgr.GetSelectedObject6(i, -1)

        If Not swFace Is Nothing Then

            If Not isArrInit Then
                isArrInit = True
                ReDim swFaces(0)
            Else
                ReDim Preserve swFaces(UBound(swFaces) + 1)
            End If

            Set swFaces(i - 1) = swFace

        End If
    Next

    GetAllSelectedFaces = swFaces

End Function

Function CopyBodiesAndTrackFaces(vFaces As Variant, ByRef trackingCookie As Long) As Variant

    trackingCookie = swApp.RegisterTrackingDefinition("_MergeBodies_")

    Dim swFace As SldWorks.Face2

    Dim swBodies() As SldWorks.Body2
    ReDim swBodies(UBound(vFaces))

    Dim i As Integer

    'collect bodies and clear all tracking ids
    For i = 0 To UBound(vFaces)

        Set swFace = vFaces(i)
        Set swBodies(i) = swFace.GetBody()

        ClearAllFaceTrackingIds swBodies(i), trackingCookie

    Next

    'assign tracking ids for all faces
    For i = 0 To UBound(vFaces)

        Set swFace = vFaces(i)

        swFace.SetTrackingID trackingCookie, i

    Next

    'copy all bodies
    For i = 0 To UBound(swBodies)

        Set swBodies(i) = swBodies(i).Copy()

    Next

    CopyBodiesAndTrackFaces = swBodies

End Function

Sub CreateMergedBodyAndSelectFaces(trackingCookie As Long, vBodiesCopy As Variant)

    Dim partTemplate As String
    partTemplate = swApp.GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swDefaultTemplatePart)

    If partTemplate <> "" Then

        Dim swPart As SldWorks.PartDoc
        Set swPart = swApp.NewDocument(partTemplate, swDwgPaperSizes_e.swDwgPapersUserDefined, 0, 0)

        Dim swMergedBody As SldWorks.Body2

        Set swMergedBody = vBodiesCopy(0)

        Dim i As Integer

        For i = 1 To UBound(vBodiesCopy)

            Dim mergeErr As Long
            Dim vMergeRes As Variant

            vMergeRes = swMergedBody.Operations2(swBodyOperationType_e.SWBODYADD, vBodiesCopy(i), mergeErr)

            If UBound(vMergeRes) = 0 Then
                Set swMergedBody = vMergeRes(0)
            Else
                MsgBox "Selected bodies cannot be merged"
                End
            End If

        Next

        Dim swBodyFeat As SldWorks.Feature
        Set swBodyFeat = swPart.CreateFeatureFromBody3(swMergedBody, False, swCreateFeatureBodyOpts_e.swCreateFeatureBodySimplify)

        Dim vFaces As Variant
        vFaces = swBodyFeat.GetFaces()

        swPart.ClearSelection2 True

        For i = 0 To UBound(vFaces)

            Dim swFace As SldWorks.Face2
            Set swFace = vFaces(i)

            Dim vIds As Variant
            swFace.GetTrackingIDs trackingCookie, vIds

            If Not IsEmpty(vIds) Then

                Dim j As Integer

                For j = 0 To UBound(vIds)
                    Debug.Print vIds(j)
                Next

                swFace.Select4 True, Nothing
            End If
        Next

    Else
        MsgBox "Default part template is not specified"
    End If

End Sub

Sub ClearAllFaceTrackingIds(swBody As SldWorks.Body2, trackingCookie As Long)

    Dim vBodyFaces As Variant
    vBodyFaces = swBody.GetFaces

    Dim i As Integer

    For i = 0 To UBound(vBodyFaces)
        Dim swBodyFace As SldWorks.Face2
        Set swBodyFace = vBodyFaces(i)
        swBodyFace.RemoveTrackingID trackingCookie
    Next

End Sub
