Get b-spline parameters from the selected edge using SOLIDWORKS API

Edit ArticleEdit Article
Comments

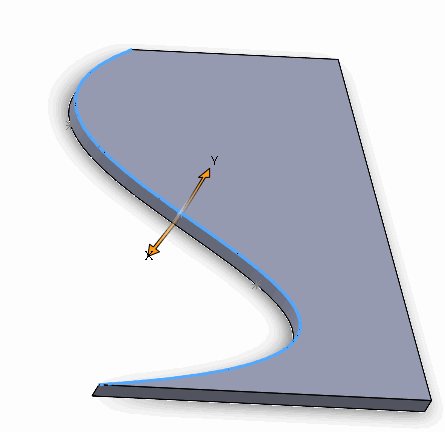

Selected b-spline edge
Selected b-spline edge

This VBA example extracts the parameters (dimension, order, periodicity, control and knot points) from the selected edge of b-spline type (e.g. edge derived from the spline segment). The extracted data can be used in the IModeler::CreateBsplineCurve SOLIDWORKS API method to build the curve of the same geometry.

The data is output into the Immediate window of VBA editor in the following format:

Props:
 Dimension Val
 Order Val
 Control Points Count Val
 Periodic Val
Knots:
 Val 1
 ...
 Val N
Control Points:
 Val 1
 ...
 Val N

Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2
Dim swSelMgr As SldWorks.SelectionMgr

Sub main()

    Set swApp = Application.SldWorks

    Set swModel = swApp.ActiveDoc

    Set swSelMgr = swModel.SelectionManager

    Dim swEdge As SldWorks.Edge

    Set swEdge = swSelMgr.GetSelectedObject6(1, -1)

    Dim swCurve As SldWorks.Curve

    Set swCurve = swEdge.GetCurve

    Dim swSplineData As SldWorks.SplineParamData
    Set swSplineData = swCurve.GetBCurveParams5(False, False, False, False)

    Dim i As Integer

    Debug.Print "Props:"
    Debug.Print swSplineData.Dimension
    Debug.Print swSplineData.Order
    Debug.Print swSplineData.ControlPointsCount
    Debug.Print swSplineData.Periodic

    Debug.Print "Knots:"
    Dim vKnotPts As Variant
    swSplineData.GetKnotPoints vKnotPts

    For i = 0 To UBound(vKnotPts)
        Debug.Print vKnotPts(i)
    Next

    Debug.Print "Control Points:"
    Dim vCtrlPts As Variant
    swSplineData.GetControlPoints vCtrlPts
    For i = 0 To UBound(vCtrlPts)
        Debug.Print vCtrlPts(i)
    Next

End Sub
