Create extruded slot temp body using SOLIDWORKS modeler API

Edit ArticleEdit Article

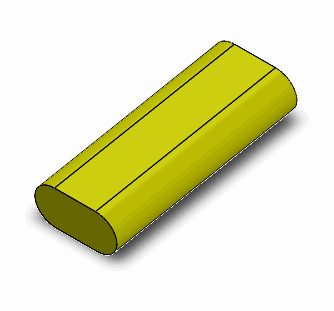

Extruded slot profile
Extruded slot profile

This VBA example demonstrates how to create a temp body by extruding the slot profile.

Macro will stop the execution and display the preview of the slot in the graphics area. Continue the macro to hide the preview and dispose temp body.

Slot profile is built in the GetSlotProfileBody function as per the parameters below:

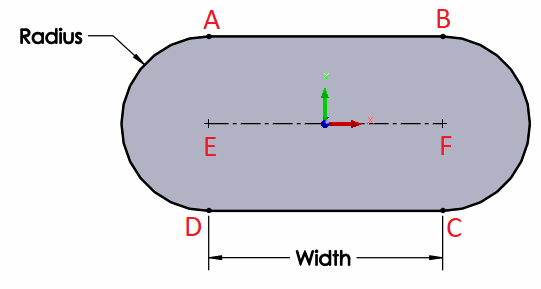

Parameters of the slot
Parameters of the slot

Dim swApp As SldWorks.SldWorks
Dim swModeler As SldWorks.Modeler

Sub main()

    Set swApp = Application.SldWorks

    Set swModeler = swApp.GetModeler

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSlotBody As SldWorks.Body2

        Dim swProfileBody As SldWorks.Body2
        Set swProfileBody = GetSlotProfileBody(0.02, 0.01)

        Dim dVec(2) As Double
        dVec(0) = 0: dVec(1) = 0: dVec(2) = 1
        Dim swDirVec As SldWorks.MathVector
        Set swDirVec = swApp.GetMathUtility().CreateVector((dVec))

        Set swSlotBody = swModeler.CreateExtrudedBody(swProfileBody, swDirVec, 0.1)

        swSlotBody.Display3 swModel, RGB(255, 255, 0), swTempBodySelectOptions_e.swTempBodySelectOptionNone

        Stop
        Set swSweptBody = Nothing

    Else
        MsgBox "Please open model"
    End If

End Sub

Function GetSlotProfileBody(width As Double, radius As Double) As SldWorks.Body2

    Dim dAxis(2) As Double
    dAxis(0) = 0: dAxis(1) = 0: dAxis(2) = 1

    Dim a(2) As Double
    a(0) = -width / 2: a(1) = radius: a(2) = 0

    Dim b(2) As Double
    b(0) = width / 2: b(1) = radius: b(2) = 0

    Dim c(2) As Double
    c(0) = width / 2: c(1) = -radius: c(2) = 0

    Dim d(2) As Double
    d(0) = -width / 2: d(1) = -radius: d(2) = 0

    Dim e(2) As Double
    e(0) = -width / 2: e(1) = 0: e(2) = 0

    Dim f(2) As Double
    f(0) = width / 2: f(1) = 0: f(2) = 0

    Dim swCurves(3) As SldWorks.Curve

    Set swCurves(0) = CreateTrimmedArc(e, a, d, dAxis, radius)
    Set swCurves(1) = CreateTrimmedLine(a, b)
    Set swCurves(2) = CreateTrimmedArc(f, c, b, dAxis, radius)
    Set swCurves(3) = CreateTrimmedLine(c, d)

    Dim swSurf As SldWorks.Surface
    Dim swBody As SldWorks.Body2
    Dim dRefAxis(2) As Double
    dRefAxis(0) = 1: dAxis(1) = 0: dRefAxis(2) = 0

    Set swSurf = swModeler.CreatePlanarSurface2(a, dAxis, dRefAxis)
    Set swBody = swSurf.CreateTrimmedSheet4(swCurves, False)

    Set GetSlotProfileBody = swBody

End Function

Function CreateTrimmedLine(vStartPt As Variant, vEndPt As Variant) As SldWorks.Curve

    Dim startX As Double, startY As Double, startZ As Double, endX As Double, endY As Double, endZ As Double

    startX = vStartPt(0): startY = vStartPt(1): startZ = vStartPt(2)
    endX = vEndPt(0): endY = vEndPt(1): endZ = vEndPt(2)

    Dim swModeler As SldWorks.Modeler
    Set swModeler = swApp.GetModeler

    Dim dCenter(2) As Double
    dCenter(0) = startX: dCenter(1) = startY: dCenter(2) = startZ

    Dim dDir(2) As Double
    dDir(0) = endX - startX: dDir(1) = endY - startY: dDir(2) = endZ - startZ

    Dim swCurve As SldWorks.Curve
    Set swCurve = swModeler.CreateLine(dCenter, dDir)

    Set swCurve = swCurve.CreateTrimmedCurve2(startX, startY, startZ, endX, endY, endZ)

    Set CreateTrimmedLine = swCurve

End Function

Function CreateTrimmedArc(vCenterPt As Variant, vStartPt As Variant, vEndPt As Variant, vAxis As Variant, radius As Double)

    Dim swCurve As SldWorks.Curve

    Set swCurve = swModeler.CreateArc(vCenterPt, vAxis, radius, vStartPt, vEndPt)
    Set swCurve = swCurve.CreateTrimmedCurve2(vStartPt(0), vStartPt(1), vStartPt(2), vEndPt(0), vEndPt(1), vEndPt(2))

    Set CreateTrimmedArc = swCurve

End Function
