• Create new project in Microsoft Visual Studio
  • Select Class Library template under the Visual Basic templates. Specify the location and the name of the project
Creating new type library in VB.NET project in Visual Studio
Creating new type library in VB.NET project in Visual Studio
  • Add reference to SolidWorks Interop libraries: SolidWorks.Interop.sldworks.dll, SolidWorks.Interop.swconst.dll, SolidWorks.Interop.swpublished.dll. Interop libraries are located at SOLIDWORKS Installation Folder\api\redist for projects targeting Framework 4.0 onwards and SOLIDWORKS Installation Folder\api\redist\CLR2 for projects targeting Framework 2.0 and 3.5.

If project targeting Framework 4.0 I would recommend setting the Embed Interop Types option for all SOLIDWORKS interop dlls to false. In some cases embedded interop libraries causing type casting issues which affects functionality and can result to crash.

Embedding SOLIDWORKS interops
Embedding SOLIDWORKS interops
  • Add a public class with a user friendly name which will represent the add-in. This class must be public and COM-visible. I would recommend to decorate the class with ComVisibleAttribute and GuidAttribute to expose the type to COM and assign the permanent Global Unique Identifier (GUID):
<ComVisible(True)>
<Guid("799707B3-1632-469F-B294-EC05A5FBFFC8")>
Public Class MySampleAddin
	Implements ISwAddin
    ...
End Class

Avoid selecting Make assembly COM-Visible option in the project settings to expose types to COM and only mark required classes as COM visible with the attributes described above.

  • Add-in dll must be registered with /codebase flag. Register for COM interop options available in the project setting doesn’t use this option while registering and not suitable in this case, furthermore this option would register the type in the 32-bit registry while SOLIDWORKS requires the entries in 64-bit registry. Instead add the post build action as follows:
"%windir%\Microsoft.NET\Framework64\v4.0.30319\regasm" /codebase "$(TargetPath)"

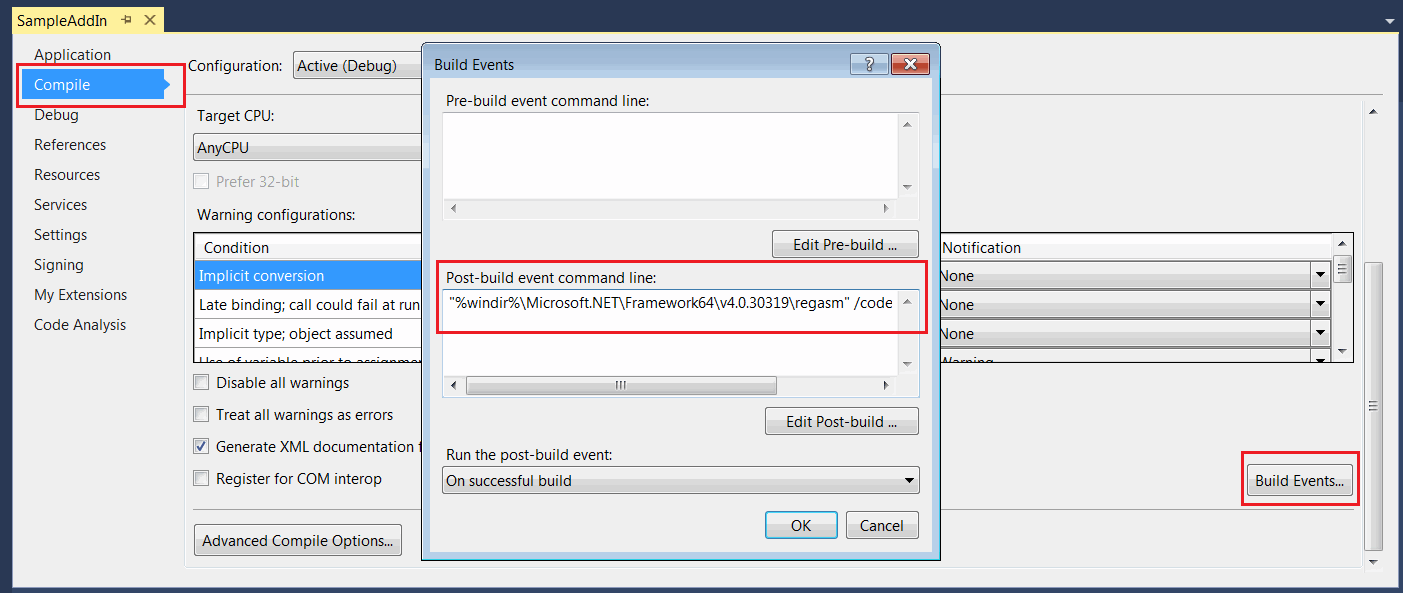

Post build event to register dll as a COM object
Post build event to register dll as a COM object

This would ensure the proper registration after each compilation of the add-in project.

  • For the enhanced debugging experience I would recommend to specify the full path to SOLIDWORKS as an external application in project settings.

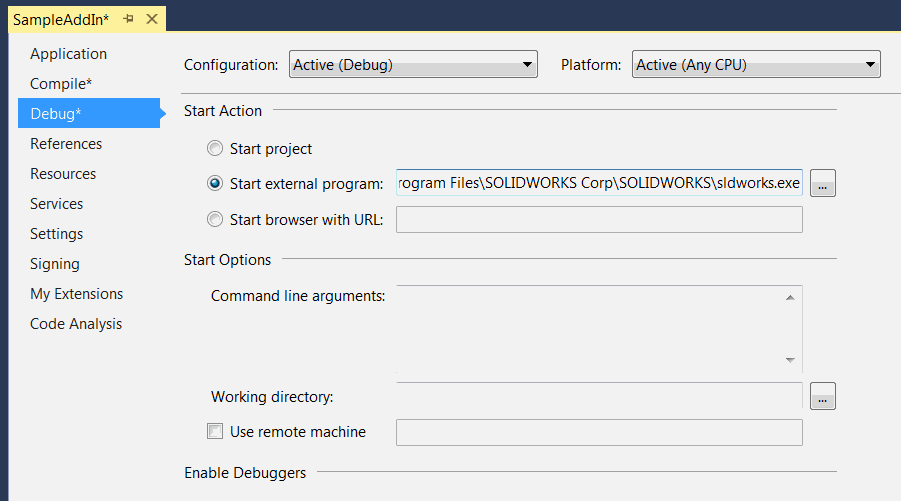

Starting SOLIDWORKS as an external program while debugging the add-in
Starting SOLIDWORKS as an external program while debugging the add-in

This would automatically start SOLIDWORKS by pressing green run button or F5 key and attach the debugger from the Visual Studio.

  • Registry information needs to be added to SOLIDWORKS registry branch to make it visible for the application. To simplify the process this information can be automatically added and removed when dll is registered and unregistered as COM object by defining the functions and decorating them with ComRegisterFunctionAttribute and ComUnregisterFunctionAttribute attributes.

  • Copy paste the code for the add-in as shown below and compile the project

Imports SolidWorks.Interop.sldworks
Imports SolidWorks.Interop.swpublished
Imports System
Imports System.ComponentModel
Imports System.Diagnostics
Imports System.Linq
Imports System.Runtime.InteropServices

<ComVisible(True)>
<Guid("799707B3-1632-469F-B294-EC05A5FBFFC8")>
<DisplayName("Sample Add-In")>
<Description("Sample 'Hello World' SOLIDWORKS add-in")>
Public Class MySampleAddin
    Implements ISwAddin

    Private Const ADDIN_KEY_TEMPLATE As String = "SOFTWARE\SolidWorks\Addins\{{{0}}}"
    Private Const ADDIN_STARTUP_KEY_TEMPLATE As String = "Software\SolidWorks\AddInsStartup\{{{0}}}"
    Private Const ADD_IN_TITLE_REG_KEY_NAME As String = "Title"
    Private Const ADD_IN_DESCRIPTION_REG_KEY_NAME As String = "Description"

#Region "Registration"

    <ComRegisterFunction>
    Public Shared Sub RegisterFunction(ByVal t As Type)
        Try
            Dim addInTitle = ""
            Dim loadAtStartup = True
            Dim addInDesc = ""
            Dim dispNameAtt = t.GetCustomAttributes(False).OfType(Of DisplayNameAttribute)().FirstOrDefault()

            If dispNameAtt IsNot Nothing Then
                addInTitle = dispNameAtt.DisplayName
            Else
                addInTitle = t.ToString()
            End If

            Dim descAtt = t.GetCustomAttributes(False).OfType(Of DescriptionAttribute)().FirstOrDefault()

            If descAtt IsNot Nothing Then
                addInDesc = descAtt.Description
            Else
                addInDesc = t.ToString()
            End If

            Dim addInkey = Microsoft.Win32.Registry.LocalMachine.CreateSubKey(String.Format(ADDIN_KEY_TEMPLATE, t.GUID))
            addInkey.SetValue(Nothing, 0)
            addInkey.SetValue(ADD_IN_TITLE_REG_KEY_NAME, addInDesc)
            addInkey.SetValue(ADD_IN_DESCRIPTION_REG_KEY_NAME, addInTitle)
            Dim addInStartupkey = Microsoft.Win32.Registry.CurrentUser.CreateSubKey(String.Format(ADDIN_STARTUP_KEY_TEMPLATE, t.GUID))
            addInStartupkey.SetValue(Nothing, Convert.ToInt32(loadAtStartup), Microsoft.Win32.RegistryValueKind.DWord)
        Catch ex As Exception
            Console.WriteLine("Error while registering the addin: " & ex.Message)
        End Try

    End Sub

    <ComUnregisterFunction>
    Public Shared Sub UnregisterFunction(ByVal t As Type)
        Try
            Microsoft.Win32.Registry.LocalMachine.DeleteSubKey(String.Format(ADDIN_KEY_TEMPLATE, t.GUID))
            Microsoft.Win32.Registry.CurrentUser.DeleteSubKey(String.Format(ADDIN_STARTUP_KEY_TEMPLATE, t.GUID))
        Catch e As Exception
            Console.WriteLine("Error while unregistering the addin: " & e.Message)
        End Try
    End Sub
#End Region

    Private m_App As ISldWorks

    Public Function ConnectToSW(ByVal ThisSW As Object, ByVal Cookie As Integer) As Boolean Implements ISwAddin.ConnectToSW
        m_App = TryCast(ThisSW, ISldWorks)
        m_App.SendMsgToUser("Hello World!")
        Return True
    End Function

    Public Function DisconnectFromSW() As Boolean Implements ISwAddin.DisconnectFromSW
        Return True
    End Function

End Class
  • You can ignore the following warning displayed in the Visual Studio window while compilation.

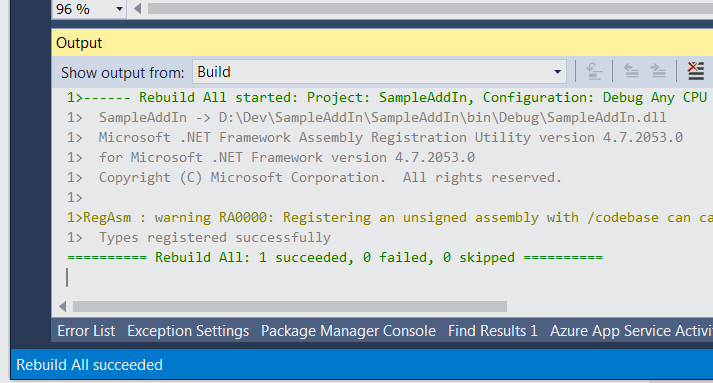

Unsigned assembly compile warning
Unsigned assembly compile warning
  • Run SOLIDWORKS and the Hello World message box is displayed on start.

The above code can be simplified as shown below with a help of SwEx.AddIn framework:

<AutoRegister("Sample Add-In", "Sample 'Hello World' SOLIDWORKS add-in", True)>
<ComVisible(True), Guid("799707B3-1632-469F-B294-EC05A5FBFFC8")>
Public Class MySampleAddIn
    Inherits SwAddInEx

    Public Overrides Function OnConnect() As Boolean
        Return True
    End Function

End Class
