Visual Basic array is a set of elements which is stored in the single variable and can be accessed by index.
In order to declare array it is required to append the variable name with parenthesis () symbol;
Dim arr() As Double 'declaring the array of doubles
Array elements can be accessed by the index
Dim arr(2) As String Dim elem As String elem = arr(0) 'getting first element
Initializing arrays in Visual Basic
Arrays is a set of the fixed size. Size can be assigned while declaration.
Dim arr(2) As Double 'declaring the array of 3 doubles (from 0 to 1)
The single number between the parenthesis represents the upper boundary of the array. By default arrays are 0-based. So specifying (5) as array size means that there will be 6 elements in the array.
It is possible to explicitly specify the upper and inner boundaries of the array
Dim arr(1 To 5) As Double 'declaring the array of 5 doubles (from 1 to 5)
It is recommended to use 0-based array as it is a common practice across different programming languages.
Array elements can be accessed and changed by their index. If specified index is outside of the boundaries of the array, run-time error is raised.
In some cases size of the array cannot be known at the compile time and it will be identified during the run-time. In this case array can be declared without the size (i.e. not initialized). Such array can be then resized dynamically using the ReDim keyword.
Dim arr() As Double ReDim arr(2) 'initializing the size of the array
In order to retrieve the upper and lower boundaries of the array UBound and LBound can be used respectively.

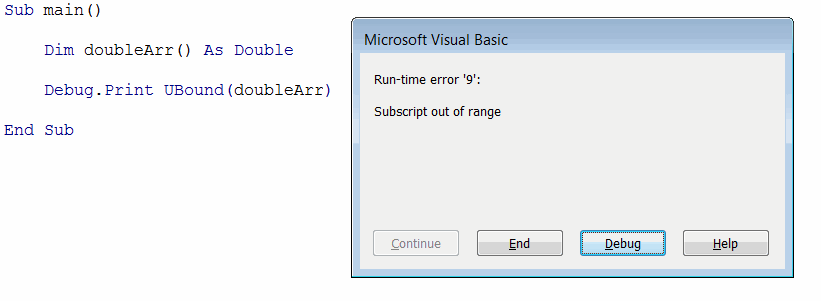

UBound function cannot be used to identify if the array is initialized as it will throw an exception when used on not initialized array. Use the IsArrayInitialized function from the example below to safely identify the state of the array.
Sub InitializeArray() Dim doubleArr() As Double 'not initialized array 'Array is initialized = False Debug.Print "Array is initialized = " & IsArrayInitialized(doubleArr) ReDim doubleArr(2) 'resizing array to hold 3 doubles 'Array is initialized = True of size 3 Debug.Print "Array is initialized = " & IsArrayInitialized(doubleArr) & " of size " & GetArraySize(doubleArr) Dim textArr(4) As String 'initialized at declaration 'Array is initialized = True of size 5 Debug.Print "Array is initialized = " & IsArrayInitialized(textArr) & " of size " & GetArraySize(textArr) 'initializing with custom boundaries Dim intArr(1 To 5) As Integer 'Array is initialized = True of size 5 (1 to 5) Debug.Print "Array is initialized = " & IsArrayInitialized(intArr) & " of size " & GetArraySize(intArr) & " (" & LBound(intArr) & " to " & UBound(intArr) & ")" 'Debug.Print intArr(0) 'Run-time error 9: subscript out of range End Sub Function IsArrayInitialized(vArr As Variant) As Boolean If IsArray(vArr) Then On Error GoTo End_ If UBound(vArr) >= 0 Then IsArrayInitialized = True Exit Function End If End If End_: IsArrayInitialized = False End Function Function GetArraySize(vArr As Variant) As Integer If IsArrayInitialized(vArr) Then GetArraySize = UBound(vArr) - LBound(vArr) + 1 Else GetArraySize = 0 End If End Function
Filling array with data
Array elements can be treated as individual variables and the same rules of reading and editing the data applies to array elements as any other variable. Refer Variables article for more information.
Dim arr(2) As Double arr(<INDEX>) = 10 'changing the value of the variable at <INDEX> Debug.Pring arr(<INDEX>) 'reading the value of the variable at <INDEX>
Sub FillArray() Dim doubleArr(2) As Double 'array initialized from the declaration Dim i As Integer For i = 0 To UBound(doubleArr) doubleArr(i) = i + 1 Next '1 2 3 For i = 0 To UBound(doubleArr) Debug.Print doubleArr(i) Next Dim vArr As Variant vArr = Array("A", "B", "C", "D") 'filling the variant array on initialization 'A B C D For i = 0 To UBound(vArr) Debug.Print vArr(i) Next End Sub
Array size can be changed at run-time. But that can only be done for the array whose size was not explicitly specified on declaration
Dim arrCanResize() As Integer 'size of this array can be resized Dim arrCannotResize(3) As Integer 'size of this array cannot be resized
Attempt of resizing the already dimensioned array will result in the compile error:
Clearing the existing values
ReDim keyword allows to resize the array. In this case all existing values will be cleared.
Sub ResizeAndClearArray() Dim doubleArr() As Double Dim i As Integer ReDim doubleArr(2) For i = 0 To UBound(doubleArr) doubleArr(i) = i + 1 Next 'resizing and clearing the array ReDim doubleArr(3) doubleArr(3) = 4 '0 0 0 4 For i = 0 To UBound(doubleArr) Debug.Print doubleArr(i) Next End Sub
Preserving existing values
In order to keep the existing values of the array it is required to use ReDim Preserve keyword.
Sub ResizeAndPreserveArray() Dim doubleArr() As Double 'array initialized from the declaration Dim i As Integer ReDim doubleArr(3) For i = 0 To UBound(doubleArr) doubleArr(i) = i + 1 Next 'resizing the array and preserving the values ReDim Preserve doubleArr(4) doubleArr(4) = 5 '1 2 3 4 5 For i = 0 To UBound(doubleArr) Debug.Print doubleArr(i) Next End Sub
Two dimensional array
Two-dimensional array allows to store the table data and can be declared in the following format
Dim table(<ROWS COUNT>, <COLUMNS COUNT>) As String
2-dimensional array can be resized, but if it is required to preserve the values only second (column) dimension can be resized.
Sub TwoDimensionalArrays() '3 rows and 4 columns Dim matrixArr() As String ReDim matrixArr(2, 3) Dim i As Integer Dim j As Integer For i = 0 To UBound(matrixArr, 1) For j = 0 To UBound(matrixArr, 2) matrixArr(i, j) = (i + 1) & "." & (j + 1) Next Next 'first dimension cannot be resized 'ReDim Preserve matrixArr(5, 5) 'Run-time error 9: subscript out of range 'second dimension can be resized preserving the data ReDim Preserve matrixArr(2, 4) ReDim matrixArr(5, 5) 'dimensions of the array can be changed when cleared End Sub
