This example demonstrates how to use 3rd Party Storage in SOLIDWORKS API to read and write custom structure directly within the model.

Example SOLIDWORKS add-in is built using the SwEx.AddIn framework but it could work with any other methods of creating the add-ins.

Add-in adds two buttons in the menu and toolbar and provides two handlers correspondingly:

  • SaveTree - asynchronous method to store the data in the stream. This method bumps the revision of the structure after each save.
  • LoadTree - loads the data from the stream and displays the name of the root element and the version

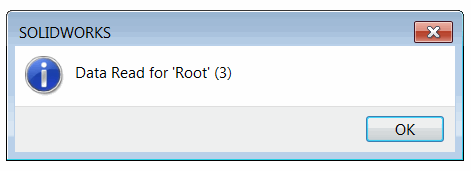

Result displayed from the data read from the stream
Result displayed from the data read from the stream

Usage Instructions

  • Open any model
  • Click “Save Data” button. First version of the structure is saved with the model
  • You can close the model and SOLIDWORKS
  • Reopen the model and click “Load Data”. Information about saved structure is displayed in the message box
  • Click “Save Data” button again. Data version is updated

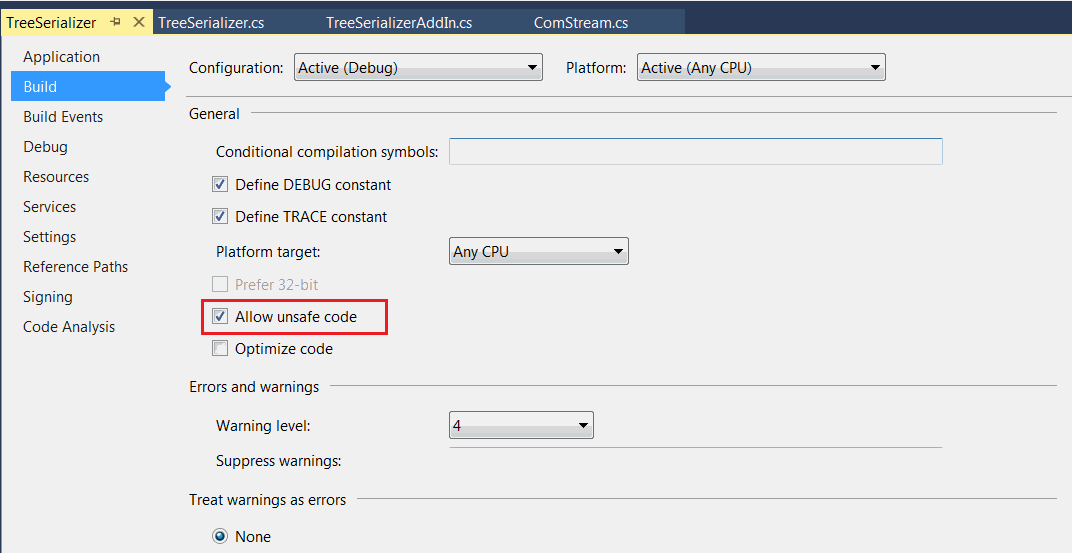

It is required to set the ‘Allow unsafe code’ option in the Visual Studio Project settings:

Allow unsafe code option in C# project
Allow unsafe code option in C# project

TreeSerializerAddIn.cs

using CodeStack.SwEx.AddIn;
using CodeStack.SwEx.AddIn.Attributes;
using SolidWorks.Interop.sldworks;
using SolidWorks.Interop.swconst;
using System;
using System.Runtime.InteropServices;
using System.Threading.Tasks;

namespace TreeSerializer
{
    [ComVisible(true), Guid("6B8E1B39-5898-46F0-B8DE-753066A2326F")]
    [AutoRegister("Tree Serializer", "Sample Demonstrating use of 3rd party store")]
    public partial class TreeSerializer : SwAddInEx
    {
        private const string STREAM_NAME = "CodeStackSampleStream";

        [CodeStack.SwEx.Common.Attributes.Title("Tree Serializer")]
        public enum Commands_e
        {
            SaveToCurrentDoc,
            LoadFromCurrentDoc
        }

        public override bool OnConnect()
        {
            AddCommandGroup<Commands_e>(OnButtonClick);
            return true;
        }

        private async void OnButtonClick(Commands_e cmd)
        {
            switch (cmd)
            {
                case Commands_e.SaveToCurrentDoc:
                    await SaveTree();
                    break;

                case Commands_e.LoadFromCurrentDoc:
                    LoadTree();
                    break;
            }
        }

        private async Task SaveTree()
        {
            try
            {
                ElementsTree tree = null;

                try
                {
                    tree = ReadDataFromDocument(App.IActiveDoc2);
                    tree.Version = tree.Version + 1;
                }
                catch (ThirdPartyStreamNotFoundException)
                {
                    //create new tree only if stream was never created, show an error otherwise
                    tree = new ElementsTree(1,
                        new Element(1, "Root",
                            new Element(2, "Level1-A",
                                new Element(4, "Level2")),
                            new Element(5, "Level1-B")));
                }

                await SaveDataToDocument(App.IActiveDoc2, tree);
                App.SendMsgToUser2("Data saved",
                    (int)swMessageBoxIcon_e.swMbInformation,
                    (int)swMessageBoxBtn_e.swMbOk);
            }
            catch (Exception ex)
            {
                App.SendMsgToUser2(ex.Message,
                    (int)swMessageBoxIcon_e.swMbStop,
                    (int)swMessageBoxBtn_e.swMbOk);
            }
        }

        private void LoadTree()
        {
            try
            {
                var readTree = ReadDataFromDocument(App.IActiveDoc2);
                App.SendMsgToUser2($"Data Read for '{readTree.Root.Name}' ({readTree.Version})",
                    (int)swMessageBoxIcon_e.swMbInformation,
                    (int)swMessageBoxBtn_e.swMbOk);
            }
            catch (Exception ex)
            {
                App.SendMsgToUser2(ex.Message,
                    (int)swMessageBoxIcon_e.swMbStop,
                    (int)swMessageBoxBtn_e.swMbOk);
            }
        }
    }
}

Structure used in this example represents the simple hierarchical data

ElementsTree.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TreeSerializer
{
    public class ElementsTree
    {
        public int Version { get; set; }
        public Element Root { get; set; }

        public ElementsTree()
        {
        }

        public ElementsTree(int version, Element root)
        {
            Version = version;
            Root = root;
        }
    }

    public class Element
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public Element[] Children { get; set; }

        public Element()
        {
        }

        public Element(int id, string name, params Element[] children)
        {
            Id = id;
            Name = name;
            Children = children;
        }
    }
}

For simplicity IStream com stream is wrapped into the System.IO.Stream type.

ComStream.cs

using System;
using System.IO;
using System.Runtime.InteropServices.ComTypes;

namespace ThirdPartyStorage
{
    public class ComStream : Stream
    {
        private readonly IStream m_ComStream;
        private readonly bool m_Commit;

        private bool m_IsWritable;

        public override bool CanRead
        {
            get
            {
                return true;
            }
        }

        public override bool CanSeek
        {
            get
            {
                return true;
            }
        }

        public override bool CanWrite
        {
            get
            {
                return m_IsWritable;
            }
        }

        public override long Length
        {
            get
            {
                const int STATSFLAG_NONAME = 1;

                STATSTG statstg;

                m_ComStream.Stat(out statstg, STATSFLAG_NONAME);

                return statstg.cbSize;
            }
        }

        public override long Position
        {
            get
            {
                return Seek(0, SeekOrigin.Current);
            }
            set
            {
                Seek(value, SeekOrigin.Begin);
            }
        }

        public ComStream(IStream comStream, bool writable, bool commit = true)
        {
            if (comStream == null)
            {
                throw new ArgumentNullException(nameof(comStream));
            }

            m_ComStream = comStream;
            m_Commit = commit;
            m_IsWritable = writable;
        }

        public override void Flush()
        {
            if (m_Commit)
            {
                const int STGC_DEFAULT = 0;

                m_ComStream.Commit(STGC_DEFAULT);
            }
        }

        public unsafe override int Read(byte[] buffer, int offset, int count)
        {
            if (offset != 0)
            {
                throw new NotSupportedException("Offset is not supported");
            }

            int bytesRead;

            var address = new IntPtr(&bytesRead);

            m_ComStream.Read(buffer, count, address);

            return bytesRead;
        }

        public unsafe override long Seek(long offset, SeekOrigin origin)
        {
            long position = 0;

            var address = new IntPtr(&position);

            m_ComStream.Seek(offset, (int)origin, address);

            return position;
        }

        public override void SetLength(long value)
        {
            m_ComStream.SetSize(value);
        }

        public override void Write(byte[] buffer, int offset, int count)
        {
            if (offset != 0)
            {
                throw new NotSupportedException("Offset is not supported");
            }

            m_ComStream.Write(buffer, count, IntPtr.Zero);
        }

        protected override void Dispose(bool disposing)
        {
            try
            {
                if (disposing)
                {
                    m_IsWritable = false;
                }
            }
            finally
            {
                base.Dispose(disposing);
            }
        }

        ~ComStream()
        {
            Dispose(false);
        }
    }
}

Serialization and deserialization routine utilizing the XmlSerializer class, but any other serialization methods could be used.

TreeSerializer.cs

using SolidWorks.Interop.sldworks;
using SolidWorks.Interop.swconst;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.InteropServices.ComTypes;
using System.Text;
using System.Threading.Tasks;
using System.Xml.Serialization;
using ThirdPartyStorage;

namespace TreeSerializer
{
    public partial class TreeSerializer
    {
        public class ThirdPartyStreamNotFoundException : Exception
        {
        }

        private async Task SaveDataToDocument(IModelDoc2 model, ElementsTree data)
        {
            int err = -1;
            int warn = -1;

            model.SetSaveFlag();

            const int S_OK = 0;

            bool? result = null; ;

            var onSaveToStorageNotifyFunc = new Func<int>(() =>
            {
                try
                {
                    StoreData(model, data, STREAM_NAME);
                    result = true;
                }
                catch
                {
                    result = false;
                }
                return S_OK;
            });

            var partSaveToStorageNotify = new DPartDocEvents_SaveToStorageNotifyEventHandler(onSaveToStorageNotifyFunc);
            var assmSaveToStorageNotify = new DAssemblyDocEvents_SaveToStorageNotifyEventHandler(onSaveToStorageNotifyFunc);
            var drwSaveToStorageNotify = new DDrawingDocEvents_SaveToStorageNotifyEventHandler(onSaveToStorageNotifyFunc);

            #region Attach Event Handlers

            switch ((swDocumentTypes_e)model.GetType())
            {
                case swDocumentTypes_e.swDocPART:
                    (model as PartDoc).SaveToStorageNotify += partSaveToStorageNotify;
                    break;

                case swDocumentTypes_e.swDocASSEMBLY:
                    (model as AssemblyDoc).SaveToStorageNotify += assmSaveToStorageNotify;
                    break;

                case swDocumentTypes_e.swDocDRAWING:
                    (model as DrawingDoc).SaveToStorageNotify += drwSaveToStorageNotify;
                    break;
            }

            #endregion

            if (!model.Save3((int)swSaveAsOptions_e.swSaveAsOptions_Silent, ref err, ref warn))
            {
                throw new InvalidOperationException($"Failed to save the model: {(swFileSaveError_e)err}");
            }

            await Task.Run(() =>
            {
                while (!result.HasValue)
                {
                    System.Threading.Thread.Sleep(10);
                }
            });

            #region Detach Event Handlers

            switch ((swDocumentTypes_e)model.GetType())
            {
                case swDocumentTypes_e.swDocPART:
                    (model as PartDoc).SaveToStorageNotify -= partSaveToStorageNotify;
                    break;

                case swDocumentTypes_e.swDocASSEMBLY:
                    (model as AssemblyDoc).SaveToStorageNotify -= assmSaveToStorageNotify;
                    break;

                case swDocumentTypes_e.swDocDRAWING:
                    (model as DrawingDoc).SaveToStorageNotify -= drwSaveToStorageNotify;
                    break;
            }

            #endregion

            if (!result.Value)
            {
                throw new Exception("Failed to store the data");
            }
        }

        private ElementsTree ReadDataFromDocument(IModelDoc2 model)
        {
            return ReadData<ElementsTree>(model, STREAM_NAME);
        }

        private void StoreData<T>(IModelDoc2 model, T data, string streamName)
        {
            try
            {
                var stream = model.IGet3rdPartyStorage(streamName, true) as IStream;

                using (var comStr = new ComStream(stream, true, false))
                {
                    comStr.Seek(0, System.IO.SeekOrigin.Begin);
                    var ser = new XmlSerializer(typeof(T));
                    ser.Serialize(comStr, data);
                }
            }
            catch
            {
                throw;
            }
            finally
            {
                model.IRelease3rdPartyStorage(streamName);
            }
        }

        private T ReadData<T>(IModelDoc2 model, string streamName)
        {
            try
            {
                var stream = model.IGet3rdPartyStorage(streamName, false) as IStream;

                if (stream != null)
                {
                    using (var comStr = new ComStream(stream, false))
                    {
                        comStr.Seek(0, System.IO.SeekOrigin.Begin);
                        var ser = new XmlSerializer(typeof(T));
                        return (T)ser.Deserialize(comStr);
                    }
                }
                else
                {
                    throw new ThirdPartyStreamNotFoundException();
                }
            }
            catch
            {
                throw;
            }
            finally
            {
                model.IRelease3rdPartyStorage(streamName);
            }
        }
    }
}
