VBA macro to hide all selected features from the SOLIDWORKS file tree

Edit ArticleEdit Article
Comments

This VBA macro allows to make invisible selected features in the tree. The features still continue to be fully operational and visible in the graphics area (e.g. planes), but not visible in the feature manager tree.

Even default features (such as planes) can be made invisible.

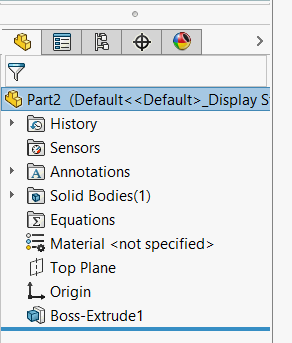

Sketch, Right and Top planes hidden in the feature manager tree
Sketch, Right and Top planes hidden in the feature manager tree

To show the hidden features use the Reveal Hidden Features macro.

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSelMgr As SldWorks.SelectionMgr
        Set swSelMgr = swModel.SelectionManager

        Dim i As Integer

        For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)
            Dim swFeat As SldWorks.Feature
            Set swFeat = swSelMgr.GetSelectedObject6(i, -1)
            swFeat.SetUIState swUIStates_e.swIsHiddenInFeatureMgr, True
        Next

        swModel.EditRebuild3
    Else
        MsgBox "Please open the model"
    End If

End Sub
