Reveal (display or delete) all feature hidden in the SOLIDWORKS Feature Manager tree

Edit ArticleEdit Article
More 'Goodies'

Hidden feature
Hidden feature

This VBA macro helps to reveal all features in the active SOLIDWORKS model which are hidden in the feature manager tree.

There are may be various reasons for the features to be hidden in the SOLIDWORKS files. In some cases those feature are invalid or dangling. This could cause unpredicted behavior of SOLIDWORKS, including performance problems or instability such as crashes or hanging.

  • Create a new macro and paste the module code into the macro
  • Add new user form into the macro and name it FeaturesForm and paste the code. The macro structure should look similar to the image below

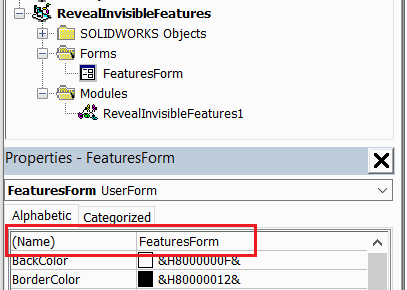

Macro project tree
Macro project tree

  • Add controls to the form and name according the to image below. Optionally specify more attributes to controls such as caption.

    • List Box named lstFeatures
    • Button named btnShow
    • Button named btnDelete

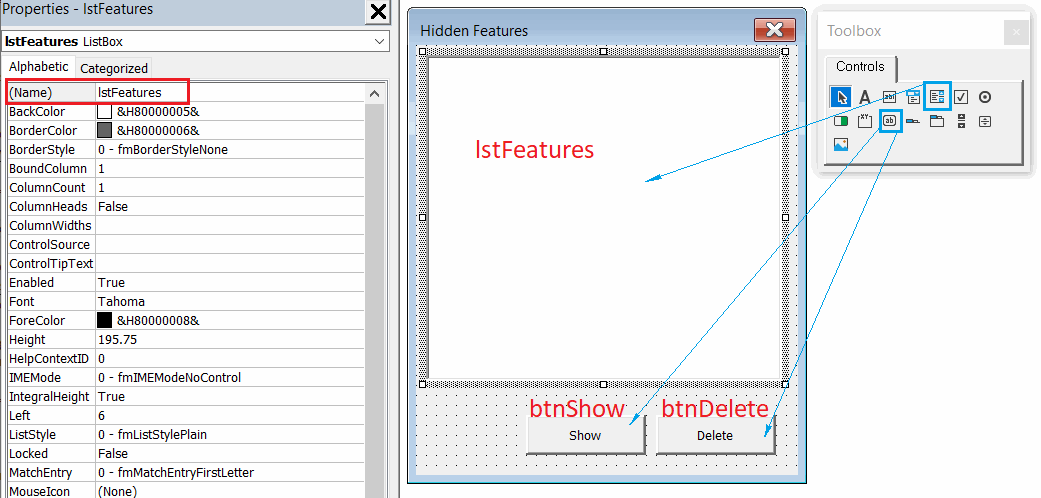

Form with controls
Form with controls

As the result of running the macro all hidden features will be populated in the list. Select (or multi select) features in the list and click Show or Delete button to either show or remove features from the model.

Hidden features displayed in the Feature Manager Tree
Hidden features displayed in the Feature Manager Tree

!IMPORTANT: use delete option on your own risk. In some cases the hidden feature is a valid feature created by SOLIDWORKS or 3rd party applications. For example attributes can be created as a hidden features and can contain important information. Removing this can have unexpected results.

To hide the feature use the following macro macro.

Macro Module

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    Dim swFeatsColl As Collection
    Set swFeatsColl = GetAllHiddenFeatures(swModel)

    If swFeatsColl.Count > 0 Then

        FeaturesForm.ShowFeatures swModel, swFeatsColl

    Else
        MsgBox "There are no hidden features in the model"
    End If

End Sub

Public Sub DeleteAllFeatures(model As SldWorks.ModelDoc2, feats As Variant)

    If Not IsEmpty(feats) Then
        ShowAllFeatures model, feats

        If model.Extension.MultiSelect2(feats, False, Nothing) <> UBound(feats) + 1 Then
            Err.Raise vbError, "", "Failed to select features to delete"
        End If

        model.Extension.DeleteSelection2 swDeleteSelectionOptions_e.swDelete_Absorbed
    End If

End Sub

Public Sub ShowAllFeatures(model As SldWorks.ModelDoc2, feats As Variant)

    If Not IsEmpty(feats) Then
        Dim i As Integer

        For i = 0 To UBound(feats)
            Dim swFeat As SldWorks.Feature
            Set swFeat = feats(i)
            swFeat.SetUIState swUIStates_e.swIsHiddenInFeatureMgr, False
        Next

        model.ForceRebuild3 False
    End If

End Sub

Function GetAllHiddenFeatures(model As SldWorks.ModelDoc2) As Collection

    Dim swProcFeatsColl As Collection
    Set swProcFeatsColl = New Collection

    Dim swFeat As SldWorks.Feature
    Set swFeat = model.FirstFeature

    Dim isAfterOrigin As Boolean
    isAfterOrigin = False

    While Not swFeat Is Nothing

        If swFeat.GetTypeName2() <> "HistoryFolder" Then

            If isAfterOrigin Then
                AddFeatureIfRequired swProcFeatsColl, swFeat

                CollectAllSubFeatures swFeat, swProcFeatsColl
            End If

            If swFeat.GetTypeName2() = "OriginProfileFeature" Then
                isAfterOrigin = True
            End If

        End If

        Set swFeat = swFeat.GetNextFeature

    Wend

    Set GetAllHiddenFeatures = swProcFeatsColl

End Function

Sub CollectAllSubFeatures(parentFeat As SldWorks.Feature, procFeatsColl As Collection)

    Dim swSubFeat As SldWorks.Feature
    Set swSubFeat = parentFeat.GetFirstSubFeature

    While Not swSubFeat Is Nothing

        AddFeatureIfRequired procFeatsColl, swSubFeat

        CollectAllSubFeatures swSubFeat, procFeatsColl
        Set swSubFeat = swSubFeat.GetNextSubFeature

    Wend

End Sub

Sub AddFeatureIfRequired(featColl As Collection, feat As Feature)

    If False <> feat.GetUIState(swUIStates_e.swIsHiddenInFeatureMgr) Then
        If Not Contains(featColl, feat) Then
            featColl.Add feat
        End If
    End If

End Sub

Function Contains(coll As Collection, item As Object) As Boolean

    Dim i As Integer

    For i = 1 To coll.Count
        If coll.item(i) Is item Then
            Contains = True
            Exit Function
        End If
    Next

    Contains = False

End Function

FeaturesForm User Form

Dim swModel As SldWorks.ModelDoc2
Dim swHiddenFeats As Collection

Private Sub UserForm_Initialize()
    Me.Caption = "Hidden Features"
    lstFeatures.MultiSelect = fmMultiSelectExtended
    lstFeatures.ColumnCount = 2
End Sub

Public Sub ShowFeatures(model As SldWorks.ModelDoc2, featsColl As Collection)

    Set swModel = model
    Set swHiddenFeats = featsColl

    Dim i As Integer

    For i = 1 To featsColl.Count
        Dim swFeat As SldWorks.Feature
        Set swFeat = featsColl.item(i)
        lstFeatures.AddItem swFeat.Name
        lstFeatures.List(i - 1, 1) = swFeat.GetTypeName2
    Next

    Show vbModeless
End Sub

Private Sub btnDelete_Click()
    DeleteAllFeatures swModel, CollectionToArray(ExtractSelected)
End Sub

Private Sub btnShow_Click()
    ShowAllFeatures swModel, CollectionToArray(ExtractSelected)
End Sub

Function ExtractSelected() As Collection

    Dim swSelFeats As Collection
    Set swSelFeats = New Collection

    Dim i As Integer

    For i = swHiddenFeats.Count To 1 Step -1
        If True = lstFeatures.Selected(i - 1) Then
            swSelFeats.Add swHiddenFeats(i)
            swHiddenFeats.Remove i
            lstFeatures.RemoveItem i - 1
        End If
    Next

    Set ExtractSelected = swSelFeats

End Function

Function CollectionToArray(coll As Collection) As Variant

    If coll.Count() > 0 Then

        Dim arr() As Object

        ReDim arr(coll.Count() - 1)
        Dim i As Integer

        For i = 1 To coll.Count
            Set arr(i - 1) = coll(i)
        Next

        CollectionToArray = arr

    Else
        CollectionToArray = Empty
    End If

End Function
