Create and display b-spline curve using SOLIDWORKS API

Edit ArticleEdit Article

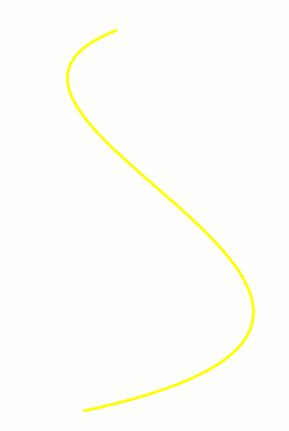

Preview of b-spline curve
Preview of b-spline curve

This VBA example demonstrates the use of IModeler::CreateBsplineCurve method to create and preview b-spline curve using sample data.

Open part document and run the macro. Curve will be previewed and macro stops. Continue the macro to dispose the curve.

Follow the Get B-Spline Curve Parameters example for a guide of extracting the required data from the selected edge.

Type DoubleRec
    dValue As Double
End Type
Type Int2Rec
    iLower As Long
    iUpper As Long
End Type


Dim swApp As SldWorks.SldWorks
Dim swModeler As SldWorks.Modeler

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    Set swModeler = swApp.GetModeler

    Dim dProps(1) As Double
    dProps(0) = PackToDouble(3, 4)
    dProps(1) = PackToDouble(4, 0)

    Dim dKnots(7) As Double
    dKnots(0) = 0: dKnots(1) = 0: dKnots(2) = 0: dKnots(3) = 0
    dKnots(4) = 1: dKnots(5) = 1: dKnots(6) = 1: dKnots(7) = 1

    Dim dCtrlPts(11) As Double
    dCtrlPts(0) = 0: dCtrlPts(1) = 0: dCtrlPts(2) = 0
    dCtrlPts(3) = -0.15: dCtrlPts(4) = 0: dCtrlPts(5) = 0.05
    dCtrlPts(6) = 0.25: dCtrlPts(7) = 0: dCtrlPts(8) = 0.2
    dCtrlPts(9) = -0.05: dCtrlPts(10) = 0: dCtrlPts(11) = 0.25

    Dim swCurve As SldWorks.Curve
    Set swCurve = swModeler.CreateBsplineCurve(dProps, dKnots, dCtrlPts)

    Dim swCurveBody As SldWorks.Body2
    Set swCurveBody = swCurve.CreateWireBody

    swCurveBody.Display3 swModel, RGB(255, 255, 0), swTempBodySelectOptions_e.swTempBodySelectOptionNone

    Stop

End Sub

Function PackToDouble(val1 As Long, val2 As Long) As Double

    Dim dr As DoubleRec
    Dim i2r As Int2Rec

    i2r.iLower = val1
    i2r.iUpper = val2
    LSet dr = i2r

    PackToDouble = dr.dValue

End Function
