Bodies fillet feature in Geometry++

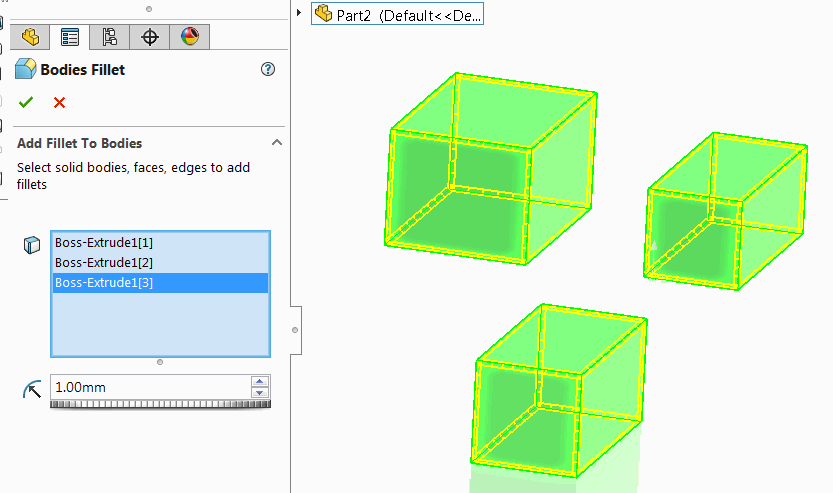

This commands allows adding the simple fillet to bodies, faces and edges. This command supports multi-bodies which means that single feature can be used to add fillets to different bodies.

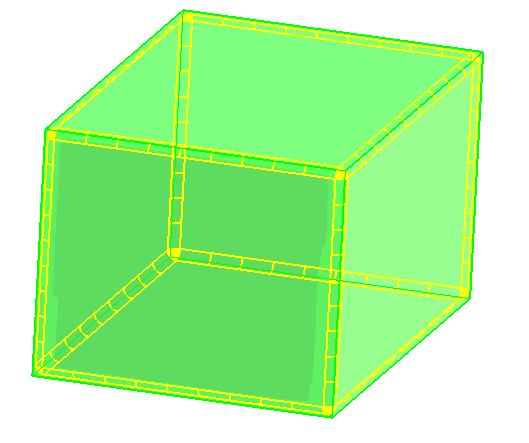

Adding fillet to bodies

Select the entire body from either from the feature tree or using the selection filter. Fillet will be added to each edge of the body.

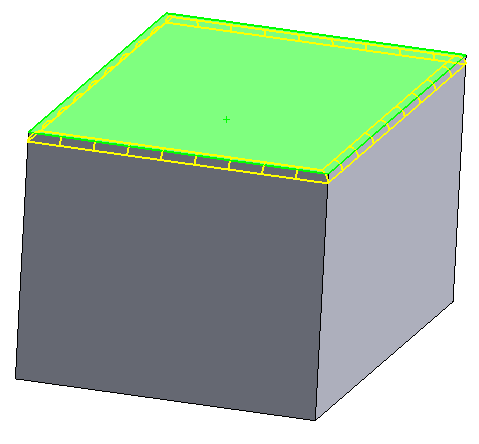

Adding fillet to faces

Select face or faces to add fillet to. Fillet is added to all edges of this face

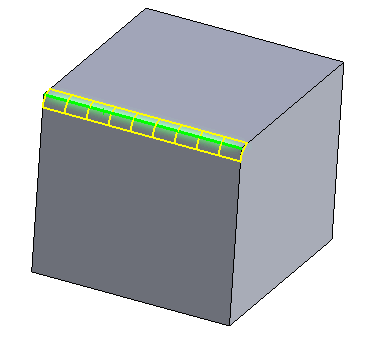

Adding fillet to edges

Select edge or edges to add fillet to.

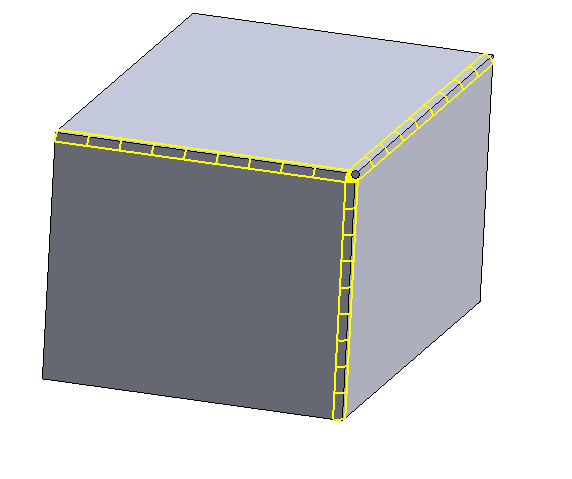

Adding fillet to vertices

Select vertex or vertices to add fillet to. Fillet is added to all connected edges of this vertex.
