Capture measurement of SOLIDWORKS entities using eDrawings markup API

Edit ArticleEdit Article
Comments

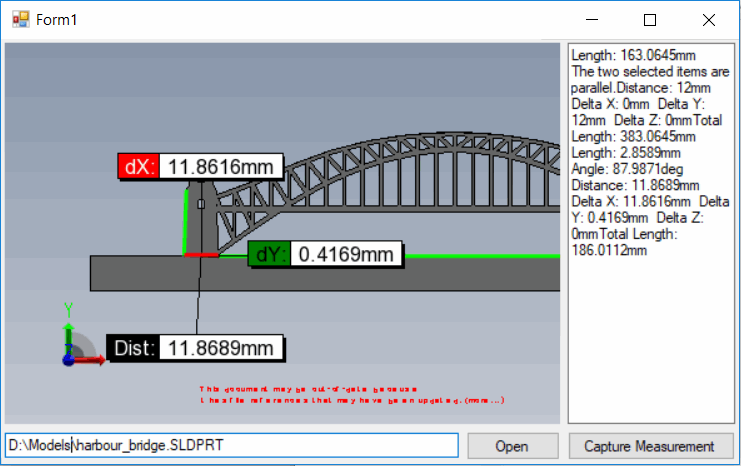

Measurement captured in the text box
Measurement captured in the text box

This example demonstrate how to use eDrawings markup API to capture the measurements of selected entities into a text box.

This example is based on Hosting eDrawings control in Windows Forms

  • Run the form
  • Open any SOLIDWORKS or eDrawings file by specifying the full path to a file and clicking Open button
  • Measurement is automatically enabled
  • Select any entity or entities and click Capture Measurement. The measurement value is appended into a text box

using eDrawings.Interop.EModelMarkupControl;
using eDrawings.Interop.EModelViewControl;
using System;
using System.Diagnostics;
using System.Windows.Forms;

namespace CodeStack.Examples.eDrawingsApi
{
    public partial class MainForm : Form
    {
        private EModelViewControl m_EDrawingsCtrl;
        private EModelMarkupControl m_EDrawingsMarkupCtrl;

        public MainForm()
        {
            InitializeComponent();
        }

        protected override void OnShown(EventArgs e)
        {
            base.OnShown(e);

            ctrlEDrw.LoadEDrawings();
        }

        private void OnControlLoaded(EModelViewControl ctrl)
        {
            m_EDrawingsCtrl = ctrl;

            m_EDrawingsCtrl.OnFinishedLoadingDocument += OnFinishedLoadingDocument;
            m_EDrawingsCtrl.OnFailedLoadingDocument += OnFailedLoadingDocument;

            m_EDrawingsMarkupCtrl = m_EDrawingsCtrl.CoCreateInstance("EModelViewMarkup.EModelMarkupControl") as EModelMarkupControl;
        }

        private void OnFailedLoadingDocument(string fileName, int errorCode, string errorString)
        {
            Trace.WriteLine($"{fileName} failed to loaded: {errorString}");
        }

        private void OnFinishedLoadingDocument(string fileName)
        {
            Trace.WriteLine($"{fileName} loaded");

            m_EDrawingsMarkupCtrl.ViewOperator = EMVMarkupOperators.eMVOperatorMeasure;
        }

        private void OnOpen(object sender, EventArgs e)
        {
            var filePath = txtFilePath.Text;

            if (!string.IsNullOrEmpty(filePath))
            {
                if (m_EDrawingsCtrl == null)
                {
                    throw new NullReferenceException("eDrawings control is not loaded");
                }

                txtMeasurements.Clear();
                m_EDrawingsCtrl.CloseActiveDoc("");
                m_EDrawingsCtrl.OpenDoc(filePath, false, false, false, "");
            }
        }

        private void OnCaptureMeasurement(object sender, EventArgs e)
        {
            txtMeasurements.Text += (!string.IsNullOrEmpty(txtMeasurements.Text) ? Environment.NewLine : "")
                + m_EDrawingsMarkupCtrl.MeasureResultString;
        }
    }
}

Source code is available on GitHub.
