Check-in all checked-out files in SOLIDWORKS PDM vault

Edit ArticleEdit Article

This VB.NET command line utility searches for all checked-out files in the specified SOLIDWORKS PDM Professional vault and checks them in.

Utility can be called from the command line and can be a part of the automation process (such as Windows Task Scheduler).

Utility expects 3 arguments to be specified:

  • Vault Name
  • User Name
  • User Password

The list of files, ids and the locked by user information is displayed in the command line. Once script finishes execution, all files are checked-in. Any errors occurred during the execution are printed into the console window.

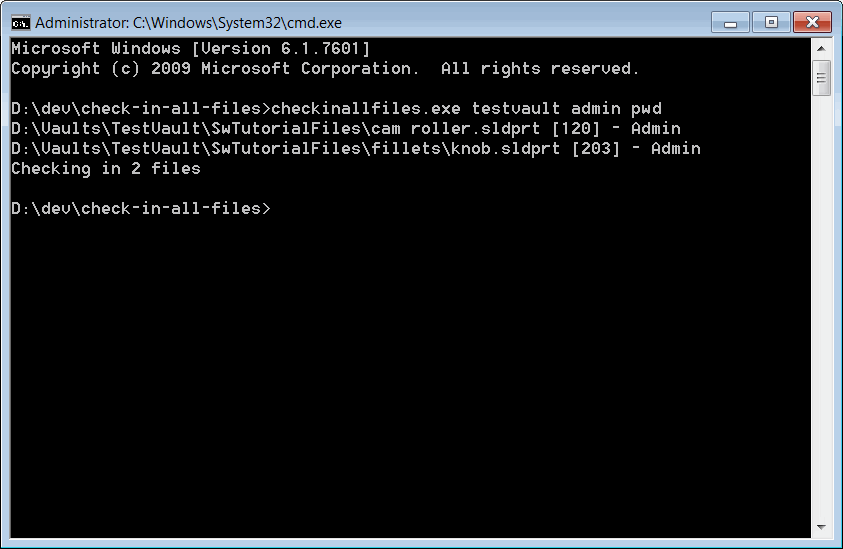

Output of command line
Output of command line

Imports EPDM.Interop.epdm

Module Module1

    Sub Main()
            Dim vault As New EdmVault5

            Dim args As String() = Environment.GetCommandLineArgs()

            Dim vaultName As String = args(1)
            Dim login As String = args(2)
            Dim password As String = args(3)

            vault.Login(login, password, vaultName)

            If vault.IsLoggedIn Then
                Throw New Exception("Failed to login to vault")
            End If
        Catch ex As Exception
        End Try
    End Sub

    Sub CheckInAllCheckedOutFiles(vault As EdmVault5)

        Dim checkOutFiles = GetCheckedOutFilesList(vault)

        If checkOutFiles.Any() Then

            Console.WriteLine(String.Format("Checking in {0} files", checkOutFiles.Length))

            Dim selItems(checkOutFiles.Length - 1) As EdmSelItem

            For i As Integer = 0 To checkOutFiles.Length - 1
                selItems(i) = New EdmSelItem()
                selItems(i).mlDocID = checkOutFiles(i)

            Dim batchUnlockUtil As IEdmBatchUnlock2 = vault.CreateUtility(EdmUtility.EdmUtil_BatchUnlock)

            batchUnlockUtil.AddSelection(vault, selItems)

            batchUnlockUtil.CreateTree(IntPtr.Zero, EdmUnlockBuildTreeFlags.Eubtf_MayUnlock + EdmUnlockBuildTreeFlags.Eubtf_MayUndoLock + EdmUnlockBuildTreeFlags.Eubtf_UndoLockDefault + EdmUnlockBuildTreeFlags.Eubtf_RefreshFileListing)

            batchUnlockUtil.GetFileList(EdmUnlockFileListFlag.Euflf_GetUnlocked + EdmUnlockFileListFlag.Euflf_GetUndoLocked + EdmUnlockFileListFlag.Euflf_GetUnprocessed)

            batchUnlockUtil.UnlockFiles(IntPtr.Zero, Nothing)
            Console.WriteLine("There are not files to check-in")
        End If

    End Sub

    Function GetCheckedOutFilesList(vault As EdmVault5) As Integer()

        Dim fileIds As New List(Of Integer)
        Dim search As IEdmSearch6

        search = vault.CreateSearch()

        search.FindFiles = True
        search.FindFolders = False
        search.Recursive = True
        search.FindLockedFiles = True
        search.FindUnlockedFiles = False

        Dim searchRes As IEdmSearchResult5 = search.GetFirstResult

        While Not searchRes Is Nothing
            Console.WriteLine(String.Format("{0} [{1}] - {2}", searchRes.Path, searchRes.ID, searchRes.LockedByUserName))
            searchRes = search.GetNextResult()
        End While

        Return fileIds.ToArray()

    End Function

End Module
