This macro will display the callouts with the diameter values of all selected circular edges in the 3D model.

This can be useful while inspecting the model and it is required to see multiple diameters at the same time.

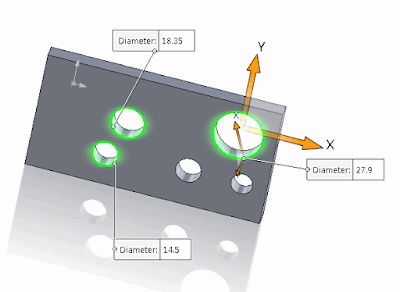

Diameters displayed in the callout for selected holes
Diameters displayed in the callout for selected holes

The callout is a visual element in SOLIDWORKS which displays data organized in key-value pairs (single or multiple rows). The callout elements are used in some standard SOLIDWORKS tools such as Measure tool. Usually callouts are attached to the selection and destroyed once the object is deselected.

To run the macro:

  1. Select circular edges and run the macro
  2. Callouts with the diameter value in the model’s units are displayed for all circular edges
  3. Clear the selection to remove the callouts

Create new macro and copy the following code into the macro’s module:

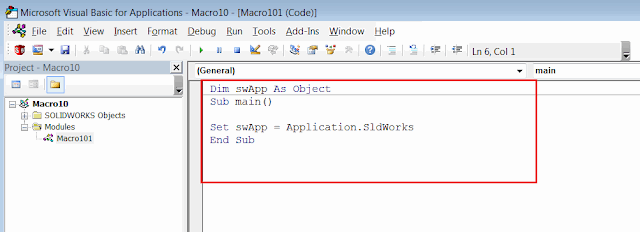

Macro module in VBA editor
Macro module in VBA editor
Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2
Dim swSelMgr As SldWorks.SelectionMgr

Sub main()

    Set swApp = Application.SldWorks

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Set swSelMgr = swModel.SelectionManager

        Dim swCalloutHandler As New HoleDiamCalloutHandler

        Dim i As Integer

        Dim swCalloutsCollection As New Collection

        For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)

            If swSelMgr.GetSelectedObjectType3(i, -1) = swSelectType_e.swSelEDGES Then

                Dim swEdge As SldWorks.Edge

                Set swEdge = swSelMgr.GetSelectedObject6(i, -1)

                Dim swCurve As SldWorks.Curve

                Set swCurve = swEdge.GetCurve

                If swCurve.IsCircle() Then

                    Dim vParams As Variant
                    vParams = swCurve.CircleParams

                    Dim diam As Double
                    diam = vParams(6) * 2

                    Dim swUserUnit As SldWorks.UserUnit
                    Set swUserUnit = swModel.GetUserUnit(swUserUnitsType_e.swLengthUnit)

                    Dim diamVal As String
                    diamVal = swUserUnit.ConvertToUserUnit(diam, False, False)

                    Dim swCallout As SldWorks.Callout
                    Set swCallout = swSelMgr.CreateCallout2(1, swCalloutHandler)

                    swCallout.Label2(0) = "Diameter"
                    swCallout.Value(0) = diamVal

                    swSelMgr.SetCallout i, swCallout

                    swCalloutsCollection.Add swCallout

                End If

            End If

        Next

        While swSelMgr.GetSelectedObjectCount2(-1) > 0
            DoEvents
        Wend

    Else
        MsgBox "Please open the model"
    End If

End Sub

Create new class module and name it HoleDiamCalloutHandler.

Adding class module to VBA macro
Adding class module to VBA macro

Copy the following code in there:

Implements swCalloutHandler

Private Function swCalloutHandler_OnStringValueChanged(ByVal pManipulator As Object, ByVal RowID As Long, ByVal Text As String) As Boolean

End Function
