Components replaced in the tree

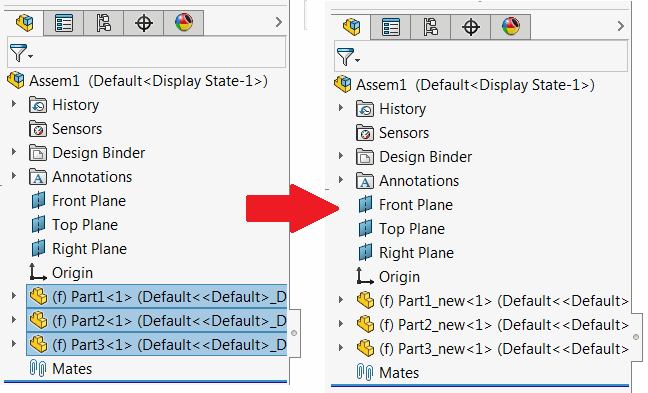

Components replaced in the tree

This macro allows to replace the selected components in the tree with the components from the nominated folder (optionally with additional suffix in name).

This could be useful when managing similar types of projects where some files were copied, updated and renamed and need to be replaced in the original assembly.

This macro is using the API only selections which allows to keep the original selected components and avoiding the need to use the temp collection variables to satisfy the requirement of IAssemblyDoc::ReplaceComponents2 where each component needs to be selected for replacement.

  • Modify the input parameters. Set the directory where the replacement parts are located via REPLACEMENT_DIR and optional SUFFIX for file name.
Const REPLACEMENT_DIR As String = "D:\Assembly\Replacement"
Const SUFFIX As String = "_new"
  • Select components
  • Run macro. All components are replaced
Const REPLACEMENT_DIR As String = "D:\Assembly\Replacement"
Const SUFFIX As String = "_new"

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swAssy As SldWorks.AssemblyDoc
        Set swAssy = swModel

        Dim swSelMgr As SldWorks.SelectionMgr
        Set swSelMgr = swModel.SelectionManager

        Dim i As Integer

        For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)

            If swSelMgr.GetSelectedObjectType3(i, -1) = swSelectType_e.swSelCOMPONENTS Then

                Dim swComp As SldWorks.Component2
                Set swComp = swSelMgr.GetSelectedObject6(i, -1)

                Debug.Print swSelMgr.SuspendSelectionList

                swSelMgr.AddSelectionListObject swComp, Nothing

                swAssy.ReplaceComponents2 GetReplacementPath(swComp), swComp.ReferencedConfiguration, False, swReplaceComponentsConfiguration_e.swReplaceComponentsConfiguration_MatchName, True

                swSelMgr.ResumeSelectionList

            End If
        Next

    Else
        MsgBox ("Please open assembly document")
    End If

End Sub

Function GetReplacementPath(comp As SldWorks.Component2)

    Dim replFilePath As String

    Dim compPath As String
    compPath = comp.GetPathName()

    Dim dir As String
    dir = REPLACEMENT_DIR

    If Right(dir, 1) <> "\" Then
        dir = dir & "\"
    End If

    Dim fileName As String
    fileName = Right(compPath, Len(compPath) - InStrRev(compPath, "\"))

    If SUFFIX <> "" Then

        Dim ext As String

        ext = Right(fileName, Len(".SLDXXX"))

        fileName = Left(fileName, Len(fileName) - Len(ext)) & SUFFIX & ext

    End If

    replFilePath = dir & fileName

    GetReplacementPath = replFilePath

End Function
