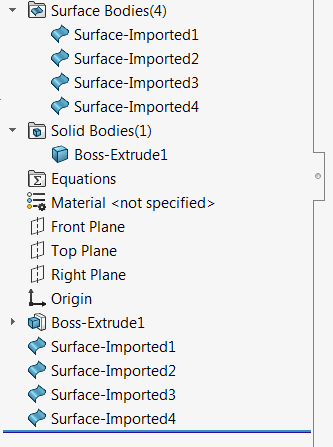

Feature Manager Tree with sheet bodies for each face
Feature Manager Tree with sheet bodies for each face

This macro creates individual surface (sheet) body for each face of the selected solid or surface body using the IModeler::CreateSheetFromFaces SOLIDWORKS API method.

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks
    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc
    If Not swModel Is Nothing Then
        Dim swSelMgr As SldWorks.SelectionMgr
        Set swSelMgr = swModel.SelectionManager
        Dim swBody As SldWorks.Body2
        Set swBody = swSelMgr.GetSelectedObject6(1, -1)
        If Not swBody Is Nothing Then
            SplitBodyFaces swModel, swBody
            MsgBox "Please select body"
        End If
        MsgBox "Please open part"
    End If
End Sub

Sub SplitBodyFaces(part As SldWorks.PartDoc, body As SldWorks.Body2)
    Dim swModeler As SldWorks.Modeler
    Set swModeler = swApp.GetModeler
    Dim vFaces As Variant
    vFaces = body.GetFaces
    Dim i As Integer
    For i = 0 To UBound(vFaces)
        Dim swFace(0) As SldWorks.Face2
        Set swFace(0) = vFaces(i)
        Dim swSheetBody As SldWorks.Body2
        Set swSheetBody = swModeler.CreateSheetFromFaces(swFace)
        part.CreateFeatureFromBody3 swSheetBody, True, swCreateFeatureBodyOpts_e.swCreateFeatureBodySimplify
End Sub

For more advanced functionality (supporting parametric approach) refer the Geomtery++ Split Body By Faces feature
