Export assembly or part to IFC 2x3 or 4 using SOLIDWORKS API

Edit ArticleEdit Article

This example demonstrates how to export active assembly or part document into IFC format using SOLIDWORKS API.

Save As Dialog with 2 ifc format options
Save As Dialog with 2 ifc format options

Currently SOLIDWORKS supports 2 schemas for IFC format

  • IFC 2x3
  • IFC 4

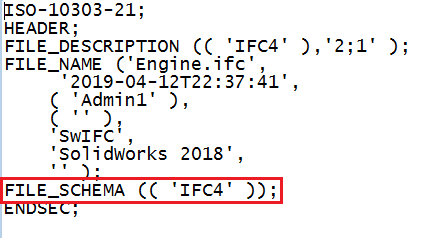

The schema can be validated in the output IFC file when opened in text editor.

IFC schema
IFC schema

This VBA macro demonstrates how to export file to both IFC schemas. Change the value of the IfcFormat_e enumeration to change the format:

ExportIfc swModel, OUT_FILE_PATH, IfcFormat_e.Ifc4 'Export to IFC 4
ExportIfc swModel, OUT_FILE_PATH, IfcFormat_e.Ifc2x3 'Export to IFC 2x3

Change the value of OUT_FILE_PATH constant to specify the output file location

Const OUT_FILE_PATH As String = "C:\Output\Building.ifc"

Enum IfcFormat_e
    Ifc2x3 = 23
    Ifc4 = 4
End Enum

Const OUT_FILE_PATH As String = "C:\Engine.ifc"

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks
    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc
    If Not swModel Is Nothing Then
        ExportIfc swModel, OUT_FILE_PATH, IfcFormat_e.Ifc4
        MsgBox "Please open the model"
    End If
End Sub

Sub ExportIfc(model As SldWorks.ModelDoc2, path As String, format As IfcFormat_e)
    Dim curIfcFormat As Integer
    curIfcFormat = swApp.GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveIFCFormat)

    swApp.SetUserPreferenceIntegerValue swUserPreferenceIntegerValue_e.swSaveIFCFormat, format
    Dim errors As Long
    Dim warnings As Long
    If False = model.Extension.SaveAs(path, swSaveAsVersion_e.swSaveAsCurrentVersion, swSaveAsOptions_e.swSaveAsOptions_Silent, Nothing, errors, warnings) Then
        Err.Raise vbError, "", "Failed to export file. Error code: " & errors
    End If
    swApp.SetUserPreferenceIntegerValue swUserPreferenceIntegerValue_e.swSaveIFCFormat, curIfcFormat
End Sub
