Selecting entities in drawing view using SOLIDWORKS API

Edit ArticleEdit Article

Named edge is selected in 3 drawing views
Named edge is selected in 3 drawing views

This example demonstrates different approaches of selecting entities (e.g. edge, face, vertex) in the drawing views using SOLIDWORKS API

  1. Selecting entity in the target view via direct IView:SelectEntity method. This method is useful when it is required to select entity without the need of passing any additional data (such as selection mark or callout).
  2. Selecting entity by specifying the view in the selection data via ISelectData::View SOLIDWORKS API property. This enables more flexibility compared to previous method as it is possible to provide more selection information.
  3. Selecting visual entities. This approach allows to find the entity in the context of the drawing view. The main benefit as it would only attempt to select the entity which is visible in the current view orientation while previous two approaches do not consider the case where entity is hidden behind other entities.

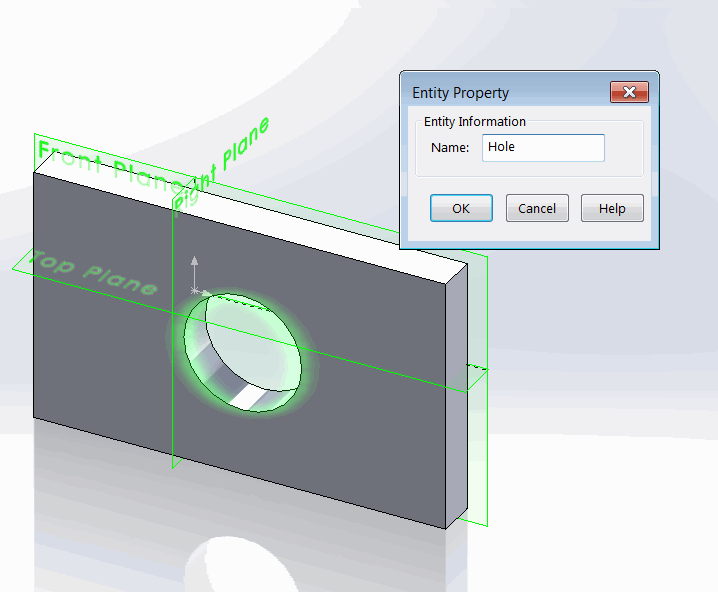

Named edge in SOLIDWORKS part
Named edge in SOLIDWORKS part

  • Run the macro and this edge is selected in all 3 views with 3 different approaches described above.

Const ENT_NAME As String = "Hole"

Dim swApp As SldWorks.SldWorks
Dim swDraw As SldWorks.DrawingDoc

Sub main()

    Set swApp = Application.SldWorks

    Set swDraw = swApp.ActiveDoc

    Dim swView1 As SldWorks.view
    Dim swView2 As SldWorks.view
    Dim swView3 As SldWorks.view

    Set swView1 = swDraw.FeatureByName("Drawing View1").GetSpecificFeature()
    Set swView2 = swDraw.FeatureByName("Drawing View2").GetSpecificFeature()
    Set swView3 = swDraw.FeatureByName("Drawing View3").GetSpecificFeature()

    Dim swRefDoc As SldWorks.PartDoc
    Set swRefDoc = swView1.ReferencedDocument

    Dim swEdge As SldWorks.Edge
    Set swEdge = swRefDoc.GetEntityByName(ENT_NAME, swSelectType_e.swSelEDGES)

    swDraw.ClearSelection2 True

    SelectInView swView1, swEdge
    SelectInViewBySelData swView2, swEdge
    SelectFromVisibleEntities swView3

End Sub

Sub SelectInView(view As SldWorks.view, ent As SldWorks.Entity)
    view.SelectEntity ent, True
End Sub

Sub SelectInViewBySelData(view As SldWorks.view, ent As SldWorks.Entity)

    Dim swSelMgr As SldWorks.SelectionMgr
    Dim swSelData As SldWorks.SelectData

    Set swSelMgr = swDraw.SelectionManager

    Set swSelData = swSelMgr.CreateSelectData
    swSelData.view = view 'specify the view to select entity in

    ent.Select4 True, swSelData

End Sub

Sub SelectFromVisibleEntities(view As SldWorks.view)

    Dim vVisComps As Variant
    vVisComps = view.GetVisibleComponents()

    Dim vVisEnts As Variant
    vVisEnts = view.GetVisibleEntities2(vVisComps(0), swViewEntityType_e.swViewEntityType_Edge)

    Dim i As Integer

    For i = 0 To UBound(vVisEnts)
        Dim swEdge As SldWorks.Entity
        Set swEdge = vVisEnts(i)
        If swEdge.ModelName = ENT_NAME Then
            swEdge.Select4 True, Nothing 'no need to explicitly specify the view to select in as pointer to the entity already belongs to the view
            Exit Sub
        End If
    Next

End Sub
