SOLIDWORKS macro to find the geometrical difference between parts

This macro allows to compare two parts by its geometry.

IBody2::GetCoincidenceTransform2 SOLIDWORKS API is used to compare bodies and if equal find the transformation between them.

Notes

Macro supports multi-bodies parts
Macro will compare the bodies even if they are located in different position (i.e. moved or rotated) in the comparable parts.
Comparable parts might have different number of bodies
Macro will try to find the most suitable transformation between two parts

Example

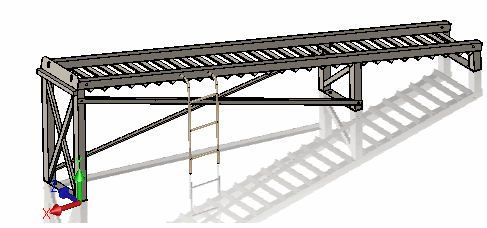

Original part to be compared:

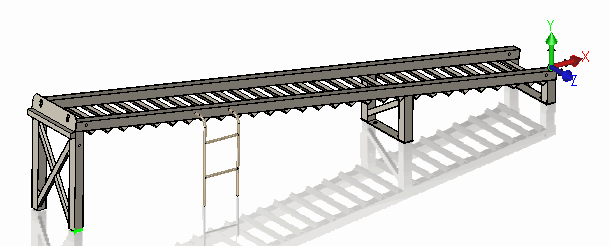

Part to compare

Second part has a modified geometry and was reoriented in space. Some of the bodies have been deleted from the second part.

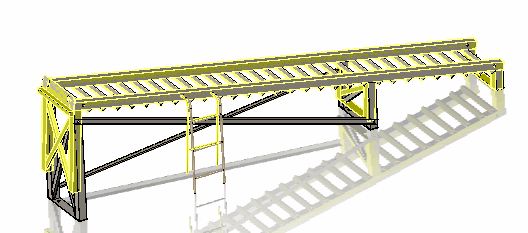

The following result is calculated by the macro:

Instructions

Open the original part file
Run the macro.
Specify the full path for the part file to compare to
As the result second part is displayed within the original part
Continue the macro (F5) to clear the preview

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swPart As SldWorks.PartDoc

    Set swPart = swApp.ActiveDoc

    If Not swPart Is Nothing Then

        Dim otherFilePath As String
        otherFilePath = InputBox("Please specify the part path to compare to")

        If otherFilePath <> "" Then

            Dim swOtherPart As SldWorks.PartDoc
            Set swOtherPart = swApp.OpenDoc6(otherFilePath, swDocumentTypes_e.swDocPART, swOpenDocOptions_e.swOpenDocOptions_Silent, "", 0, 0)

            If Not swOtherPart Is Nothing Then
                Dim swXform As SldWorks.MathTransform
                Set swXform = GetClosestTransform(swPart, swOtherPart)
                PreviewPart swOtherPart, swXform, swPart
            Else
                MsgBox "Failed to open the part to compare to"
            End If

        End If

    Else
        MsgBox "Please open part"
    End If

End Sub

Sub PreviewPart(part As SldWorks.PartDoc, transform As SldWorks.MathTransform, context As PartDoc)

    Dim vBodies As Variant

    vBodies = part.GetBodies2(swBodyType_e.swSolidBody, True)

    Dim i As Integer

    For i = 0 To UBound(vBodies)

        Dim swBody As SldWorks.Body2
        Set swBody = vBodies(i)
        Set swBody = swBody.Copy

        If Not transform Is Nothing Then
            Debug.Print swBody.ApplyTransform(transform)
        End If

        Set vBodies(i) = swBody
        swBody.Display3 context, RGB(255, 255, 0), swTempBodySelectOptions_e.swTempBodySelectOptionNone

    Next

    Stop 'continue the macro to hide preview

End Sub

Function GetClosestTransform(thisPart As SldWorks.PartDoc, otherPart As SldWorks.PartDoc) As SldWorks.MathTransform

    Dim vThisBodies As Variant
    Dim vOtherBodies As Variant

    vThisBodies = thisPart.GetBodies2(swBodyType_e.swSolidBody, True)
    vOtherBodies = otherPart.GetBodies2(swBodyType_e.swSolidBody, True)

    Dim transformsHits As Object
    Set transformsHits = CreateObject("Scripting.Dictionary") 'by some reasons sometimes the first null element is added on creation

    If Not IsEmpty(vThisBodies) And Not IsEmpty(vOtherBodies) Then

        Dim i As Integer
        Dim j As Integer

        For i = 0 To UBound(vOtherBodies)

            Dim swOtherBody As SldWorks.Body2

            Set swOtherBody = vOtherBodies(i)

            For j = 0 To UBound(vThisBodies)

                Dim swThisBody As SldWorks.Body2
                Set swThisBody = vThisBodies(j)
                Dim swTransform As SldWorks.MathTransform

                If swThisBody.GetCoincidenceTransform2(swOtherBody, swTransform) Then

                    If Not swTransform Is Nothing Then

                        Dim contains As Boolean
                        contains = False
                        For Each key In transformsHits.Keys
                            If Not key Is Nothing Then
                                Dim tx As SldWorks.MathTransform
                                Set tx = key
                                If CompareTransforms(swTransform, tx) Then
                                    transformsHits(tx) = transformsHits(tx) + 1
                                    contains = True
                                    Exit For
                                End If
                            End If
                        Next

                        If Not contains Then
                            transformsHits.Add swTransform, 1
                        End If

                    End If

                End If

            Next

        Next

    End If

    Dim curMaxHit As Integer
    curMaxHit = 0

    For Each key In transformsHits.Keys
        If Not key Is Nothing Then
            Dim curTx As SldWorks.MathTransform
            Set curTx = key
            If transformsHits(curTx) > curMaxHit Then
                curMaxHit = transformsHits(curTx)
                Set GetClosestTransform = curTx
            End If
        End If
    Next

End Function

Function CompareTransforms(firstTransform As SldWorks.MathTransform, secondTransform As SldWorks.MathTransform) As Boolean

    Dim vFirstArrayData As Variant
    vFirstArrayData = firstTransform.ArrayData

    Dim vSecondArrayData As Variant
    vSecondArrayData = secondTransform.ArrayData

    Dim i As Integer

    For i = 0 To UBound(vFirstArrayData)
        If Not CompareValues(CDbl(vFirstArrayData(i)), CDbl(vSecondArrayData(i))) Then
            CompareTransforms = False
            Exit Function
        End If
    Next

    CompareTransforms = True

End Function

Function CompareValues(firstValue As Double, secondValue As Double, Optional tol As Double = 0.00000001) As Boolean

    CompareValues = Abs(secondValue - firstValue) <= tol

End Function
