Find cut-list item from the sheet metal flat pattern using SOLIDWORKS API

Edit ArticleEdit Article
Comments

Cut-List folder and flat pattern feature
Cut-List folder and flat pattern feature

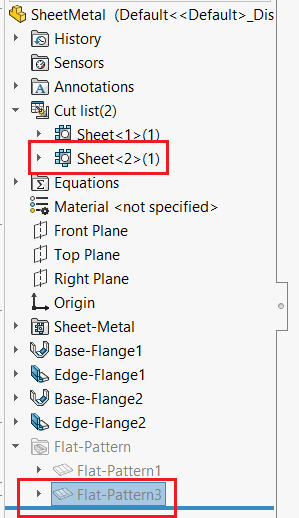

This VBA macro demonstrates how to find the corresponding cut-list folder feature from the selected sheet metal flat pattern feature.

This macro supports both flatten and unflatten state of sheet metal feature.

Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2

Sub main()

    Set swApp = Application.SldWorks

    Set swModel = swApp.ActiveDoc

    Dim swFeat As SldWorks.Feature

    Set swFeat = swModel.SelectionManager.GetSelectedObject6(1, -1)

    If Not swFeat Is Nothing Then

        If swFeat.GetTypeName2 = "FlatPattern" Then

            Dim swFlatPattern As SldWorks.FlatPatternFeatureData
            Set swFlatPattern = swFeat.GetDefinition

            Dim swFixedFace As SldWorks.Face2
            Set swFixedFace = swFlatPattern.FixedFace2

            Dim swBody As SldWorks.Body2
            Set swBody = swFixedFace.GetBody

            Dim swCutListFeat As SldWorks.Feature

            Set swCutListFeat = GetCutListFromBody(swModel, swBody)

            Debug.Print swCutListFeat.Name

        Else
            Err.Raise vbError, "", "Selected feature is not sheet metal flat pattern"
        End If

    Else
        Err.Raise vbError, "", "Select feature"
    End If

End Sub

Function GetCutListFromBody(model As SldWorks.ModelDoc2, body As SldWorks.Body2) As SldWorks.Feature

    Dim swFeat As SldWorks.Feature
    Dim swBodyFolder As SldWorks.BodyFolder

    Set swFeat = model.FirstFeature

    Do While Not swFeat Is Nothing

        If swFeat.GetTypeName2 = "CutListFolder" Then

            Set swBodyFolder = swFeat.GetSpecificFeature2

            Dim vBodies As Variant

            vBodies = swBodyFolder.GetBodies

            Dim i As Integer

            If Not IsEmpty(vBodies) Then
                For i = 0 To UBound(vBodies)

                    Dim swCutListBody As SldWorks.Body2
                    Set swCutListBody = vBodies(i)

                    If swApp.IsSame(swCutListBody, body) = swObjectEquality.swObjectSame Then
                        Set GetCutListFromBody = swFeat
                        Exit Function
                    End If

                Next
            End If

        End If

        Set swFeat = swFeat.GetNextFeature

    Loop

End Function
