This VBA macro allows to perform operations usually required to upgrade the model to new version of SOLIDWORKS. It allows to:

  • Force rebuild the model (ctrl+Q)

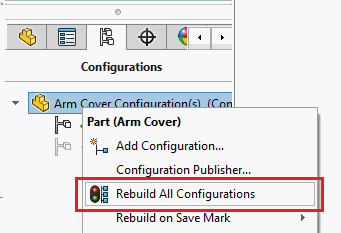

Rebuild all configurations
Rebuild all configurations

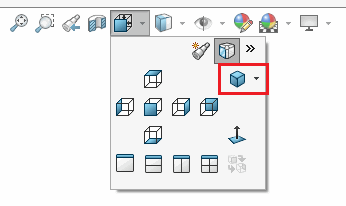

  • Set model to isometric orientation

Zoom to fit
Zoom to fit

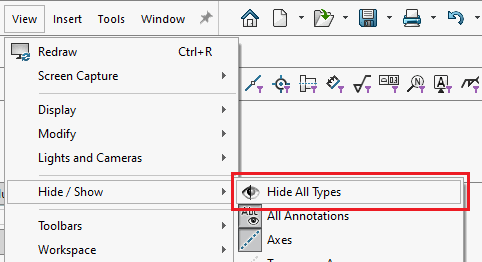

  • Hide all view types

Hide all types
Hide all types

Configure the macro actions by setting the values of corresponding constants

Const DEFAULT_VIEWZOOMTOFIT As Boolean = True
Const DEFAULT_REBUILD As Boolean = True
Const DEFAULT_HIDE_ALL_TYPES As Boolean = True

This macro also supports macro arguments: -zoomtofit, -rebuild, -hidealltypes

Macro arguments specified in Batch+
Macro arguments specified in Batch+

Const DEFAULT_VIEWZOOMTOFIT As Boolean = True
Const DEFAULT_REBUILD As Boolean = True
Const DEFAULT_HIDE_ALL_TYPES As Boolean = True

Const ARG_VIEWZOOMTOFIT As String = "-zoomtofit"
Const ARG_REBUILD As String = "-rebuild"
Const ARG_HIDE_ALL_TYPES As String = "-hidealltypes"

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim vArgs As Variant
        vArgs = GetArguments()

        If IsEmpty(vArgs) Then
            Err.Raise vbError, "", "Arguments are empty"
        End If

        If ContainsArguments(vArgs, ARG_VIEWZOOMTOFIT) Then
            swModel.ShowNamedView2 "", swStandardViews_e.swIsometricView
            swModel.ViewZoomtofit2
        End If

        If ContainsArguments(vArgs, ARG_HIDE_ALL_TYPES) Then
            swModel.SetUserPreferenceToggle swUserPreferenceToggle_e.swViewDisplayHideAllTypes, True
        End If

        If ContainsArguments(vArgs, ARG_REBUILD) Then

            swModel.ForceRebuild3 False

            Dim isSw2017OrNewer As Boolean
            isSw2017OrNewer = (CInt(Split(swApp.RevisionNumber(), ".")(0))) >= 25

            If isSw2017OrNewer Then
                swModel.Extension.ForceRebuildAll
            End If

        End If

    Else
        Err.Raise vbError, "", "No active model"
    End If

End Sub

Function GetArguments() As Variant

    Dim vArgs As Variant

    On Error GoTo catch_

try_:
    Dim macroRunner As Object
    Set macroRunner = CreateObject("CadPlus.MacroRunner.Sw")

    Dim param As Object
    Set param = macroRunner.PopParameter(swApp)

    vArgs = param.Get("Args")

    If IsEmpty(vArgs) Then
        Err.Raise vbError, "", "No arguments specified"
    End If

    GoTo finally_

catch_:

    Dim sArgs() As String
    Dim isInit As Boolean
    isInit = False

    If DEFAULT_REBUILD Then
        If Not isInit Then
            ReDim sArgs(0)
            isInit = True
        Else
            ReDim Preserve sArgs(UBound(sArgs) + 1)
        End If
        sArgs(UBound(sArgs)) = ARG_REBUILD
    End If

    If DEFAULT_VIEWZOOMTOFIT Then
        If Not isInit Then
            ReDim sArgs(0)
            isInit = True
        Else
            ReDim Preserve sArgs(UBound(sArgs) + 1)
        End If
        sArgs(UBound(sArgs)) = ARG_VIEWZOOMTOFIT
    End If

    If DEFAULT_HIDE_ALL_TYPES Then
        If Not isInit Then
            ReDim sArgs(0)
            isInit = True
        Else
            ReDim Preserve sArgs(UBound(sArgs) + 1)
        End If
        sArgs(UBound(sArgs)) = ARG_HIDE_ALL_TYPES
    End If

    If isInit Then
        vArgs = sArgs
    Else
        vArgs = Empty
    End If

finally_:

    GetArguments = vArgs

End Function

Function ContainsArguments(args As Variant, arg As String) As Boolean

    Dim i As Integer

    For i = 0 To UBound(args)
        If LCase(args(i)) = LCase(arg) Then
            ContainsArguments = True
            Exit Function
        End If
    Next

    ContainsArguments = False

End Function
