Purge components configurations (remove all unused configurations) from SOLIDWORKS assembly

Comments
More 'Goodies'

In some cases it might be required to remove (purge) all unused configurations from the components in the assembly. It is in particular useful for the fastener or toolbox components as file can contains thousands of configurations but only few are used in the assembly.

This macro allows to create a copy of all selected components, purge their configurations and replace them in the assembly.

It is strongly recommended to backup your assembly before using this macro

You can either select components manually or use advanced component selection tool to select components based on the criteria (e.g. or fasteners or toolbars):

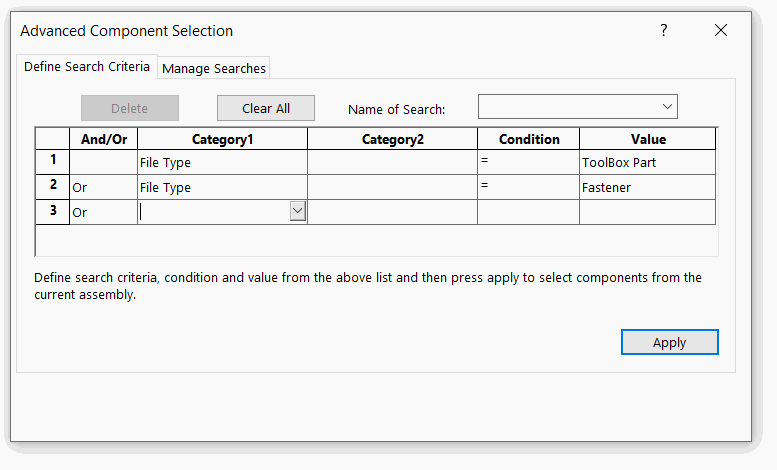

Selecting all fasteners and toolbox parts in the assembly via Advanced Components Selection tool
Selecting all fasteners and toolbox parts in the assembly via Advanced Components Selection tool

For additional criteria use the extended advanced selection macro.

Notes

  • Macro will only work with permanent components. Error will be generated for virtual components
  • Macro will only work with part based (*.sldprt) components
  • Macro will only work wil fully loaded components, suppressed or lightweight components are not supported
  • Macro doesn't save the document after processing. Use Save All to save all modifications
  • Macro will copy all replacement part at the same location as source part
  • Component can be selected in the Feature Manager tree or from the graphics view (it is possible to select any entity of the component as well, such as face or edge)
  • Design table will be removed if exists
  • Macro will not replace existing files and File already exist wil be generated if target file already created. Remove all of these files manually. If macro failed, some of the files may be loaded into the memory despite they are not used in the assembly. Use Close All command to release those files
  • Mates will be reattached

Options

Replacement Name

Specify the name of the replacement file by changing the REPLACEMENT_NAME constant. Use fre text with the [title] and [conf] placeholders which will be replaced with title of the source file and the component's referenced configuration respectively. If the GROUP_BY_CONFIGURATIONS option is set to True, the [conf] placeholder will be replaced by the join of all configuration names separated by _ symbol.

Grouping Configurations

GROUP_BY_CONFIGURATIONS option allows to specify if the components referencing the same document in different configuration should be replaced by single component or new single configuration part should be created for each component irrespectively.

Examples

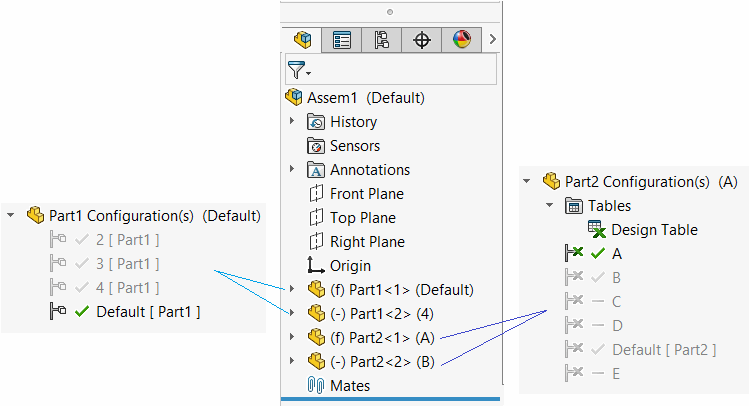

Unused configurations of components
Unused configurations of components

There are 2 files with multiple configuration

  • Part1.sldprt contains 4 configurations: Default, 2, 3 and 4
  • Part2.sldprt contains 6 configurations driven by the design table: Default, A, B, C, D, E
  • Part1 is placed into the assembly 2 times in configurations Default and 4
  • Part2 is placed into the assembly 2 times in configurations A and B

User selects first 3 components and runs the macro. The following results will be produced depending on the specified settings

Option 1

Const GROUP_BY_CONFIGURATIONS As Boolean = False
Const REPLACEMENT_NAME As String = "[title]_[conf]"

As the result 3 new files will be generated with a single configuration: Part1_Default.sldprt, Part1_4.sldprt, Part2_A.sldprt (design table is removed) and all selected component will be replaced. The 4th component will not be changed as it was not selected initially.

Results of components purge
Results of components purge

Option 2

Const GROUP_BY_CONFIGURATIONS As Boolean = True
Const REPLACEMENT_NAME As String = "[title]_[conf]_replacement"

As the result 2 new files will be generated: Part1_Default_4_replacement.sldprt (with 2 configurations), Part2_A_replacement.sldprt (design table is removed) and all selected component will be replaced. The 4th component will not be changed as it was not selected initially.

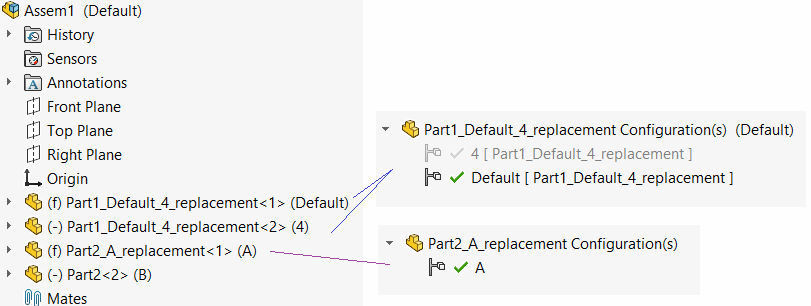

Second results of components purge
Second results of components purge

Const GROUP_BY_CONFIGURATIONS As Boolean = False
Const REPLACEMENT_NAME As String = "[title]_[conf]"

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

try:
    On Error GoTo catch

    Dim swAssy As SldWorks.AssemblyDoc

    Set swAssy = swApp.ActiveDoc

    If Not swAssy Is Nothing Then

        Dim vComps As Variant
        vComps = GetReplacementComponents(swAssy)

        Dim swCompGroups As Object
        Set swCompGroups = GroupByModel(vComps)

        Dim replacementsMap As Object

        Set replacementsMap = CreateReplacementModels(swCompGroups)

        ReplaceComponents swAssy, vComps, replacementsMap

    Else
        Err.Raise vbError, "", "Open assembly document"
    End If

    GoTo finally

catch:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally:

End Sub

Sub ReplaceComponents(assy As SldWorks.AssemblyDoc, comps As Variant, replacementMap As Object)

    Dim i As Integer

    For i = 0 To UBound(comps)

        Dim swComp As SldWorks.Component2
        Set swComp = comps(i)

        Dim srcKey As String

        srcKey = swComp.GetModelDoc2().GetPathName

        If Not GROUP_BY_CONFIGURATIONS Then
            srcKey = srcKey & "::" & swComp.ReferencedConfiguration
        End If

        If False <> swComp.Select4(False, Nothing, False) Then
            Dim fileName As String
            fileName = replacementMap.item(srcKey)

            If False = assy.ReplaceComponents2(fileName, swComp.ReferencedConfiguration, False, swReplaceComponentsConfiguration_e.swReplaceComponentsConfiguration_MatchName, True) Then
                Err.Raise vbError, "", "Failed to replace the component " & swComp.Name2
            End If

        Else
            Err.Raise vbError, "", ""
        End If

    Next

End Sub

Function CreateReplacementModels(modelsMap As Object) As Object

    Const PLACEHOLDER_TITLE As String = "[title]"
    Const PLACEHOLDER_CONF As String = "[conf]"

    Dim replacementsMap As Object
    Set replacementsMap = CreateObject("Scripting.Dictionary")

    Dim i As Integer

    Dim vModels As Variant
    vModels = modelsMap.keys

    For i = 0 To UBound(vModels)

        Dim swModel As SldWorks.ModelDoc2
        Set swModel = vModels(i)

        Dim refConfs As Collection
        Set refConfs = modelsMap.item(swModel)

        Dim path As String
        Dim dir As String
        Dim title As String

        path = swModel.GetPathName
        title = Mid(path, InStrRev(path, "\") + 1, InStrRev(path, ".") - InStrRev(path, "\") - 1)
        dir = Left(path, InStrRev(path, "\"))

        Dim newTitle As String
        Dim newPath As String
        Dim j As Integer

        If GROUP_BY_CONFIGURATIONS Then

            Dim confs As String
            confs = ""
            For j = 1 To refConfs.Count
                confs = confs & refConfs(j) & IIf(j <> refConfs.Count, "_", "")
            Next

            newTitle = Replace(REPLACEMENT_NAME, PLACEHOLDER_TITLE, title)
            newTitle = Replace(newTitle, PLACEHOLDER_CONF, confs)
            newPath = dir & newTitle & ".sldprt"

            CreateFileCopy path, newPath

            RemoveConfigurations newPath, refConfs
            replacementsMap.Add path, newPath
        Else
            For j = 1 To refConfs.Count

                newTitle = Replace(REPLACEMENT_NAME, PLACEHOLDER_TITLE, title)
                newTitle = Replace(newTitle, PLACEHOLDER_CONF, refConfs(j))
                newPath = dir & newTitle & ".sldprt"

                CreateFileCopy path, newPath

                Dim keepConf As Collection
                Set keepConf = New Collection
                keepConf.Add refConfs(j)

                RemoveConfigurations newPath, keepConf
                replacementsMap.Add path & "::" & refConfs(j), newPath
            Next
        End If

    Next

    Set CreateReplacementModels = replacementsMap

End Function

Sub CreateFileCopy(srcFile As String, destFile As String)

    Dim fso As Object
    Set fso = CreateObject("Scripting.FileSystemObject")

    fso.CopyFile srcFile, destFile, False

End Sub

Sub RemoveConfigurations(filePath As String, confsToKeep As Collection)

try:
    On Error GoTo catch

    Dim swModel As SldWorks.ModelDoc2

    Dim swDocSpec As SldWorks.DocumentSpecification
    Set swDocSpec = swApp.GetOpenDocSpec(filePath)

    swApp.DocumentVisible False, swDocumentTypes_e.swDocPART
    Set swModel = swApp.OpenDoc7(swDocSpec)
    swApp.DocumentVisible True, swDocumentTypes_e.swDocPART

    swModel.ShowConfiguration2 confsToKeep(1)

    Dim vConfNames As Variant

    vConfNames = swModel.GetConfigurationNames

    Dim i As Integer

    For i = 0 To UBound(vConfNames)

        Dim confName As String
        confName = CStr(vConfNames(i))

        If Not CollectionContains(confsToKeep, confName) Then
            swModel.DeleteConfiguration2 confName
        End If

    Next

    If False <> swModel.Extension.HasDesignTable() Then
        swModel.DeleteDesignTable
    End If

    GoTo finally

catch:
    swApp.DocumentVisible True, swDocumentTypes_e.swDocPART
    Err.Raise Err.Number, Err.Source, Err.Description
finally:

End Sub

Function GroupByModel(comps As Variant) As Object

    Dim modelsMap As Object
    Set modelsMap = CreateObject("Scripting.Dictionary")

    Dim refConfNames As Collection

    Dim i As Integer

    For i = 0 To UBound(comps)

        Dim swComp As SldWorks.Component2
        Set swComp = comps(i)

        Dim swCompModel As SldWorks.ModelDoc2
        Set swCompModel = swComp.GetModelDoc2

        If Not modelsMap.exists(swCompModel) Then
            Set refConfNames = New Collection
            refConfNames.Add swComp.ReferencedConfiguration
            modelsMap.Add swCompModel, refConfNames
        Else
            Set refConfNames = modelsMap.item(swCompModel)

            If Not CollectionContains(refConfNames, swComp.ReferencedConfiguration) Then
                refConfNames.Add swComp.ReferencedConfiguration
            End If
        End If
    Next

    Set GroupByModel = modelsMap

End Function

Function GetReplacementComponents(model As SldWorks.ModelDoc2) As Variant

    Dim swComps() As SldWorks.Component2
    Dim isInit As Boolean

    Dim i As Integer

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = model.SelectionManager

    For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)

        Dim swComp As SldWorks.Component2
        Set swComp = swSelMgr.GetSelectedObjectsComponent4(i, -1)

        If False = swComp.IsVirtual Then

            Dim swCompModel As SldWorks.ModelDoc2
            Set swCompModel = swComp.GetModelDoc2

            If swCompModel Is Nothing Then
                Err.Raise vbError, "", "Failed to get document from the component: " & swComp.Name2 & ". Make sure component is fully resolved and not suppressed"
            End If

            If Not TypeOf swCompModel Is SldWorks.PartDoc Then
                Err.Raise vbError, "", "Only part components are supported"
            End If

            If isInit Then
                If Not Contains(swComps, swComp) Then
                    ReDim Preserve swComps(UBound(swComps) + 1)
                    Set swComps(UBound(swComps)) = swComp
                End If
            Else
                ReDim swComps(0)
                Set swComps(0) = swComp
                isInit = True
            End If

        Else
            Err.Raise vbError, "", "Virtual components are not supported"
        End If

    Next

    If isInit Then
        GetReplacementComponents = swComps
    Else
        GetReplacementComponents = Empty
    End If

End Function

Function Contains(arr As Variant, item As Object) As Boolean

    Dim i As Integer

    For i = 0 To UBound(arr)
        If arr(i) Is item Then
            Contains = True
            Exit Function
        End If
    Next

    Contains = False

End Function

Function CollectionContains(coll As Collection, item As String) As Boolean

    Dim i As Integer

    For i = 1 To coll.Count
        If LCase(coll.item(i)) = LCase(item) Then
            CollectionContains = True
            Exit Function
        End If
    Next

    CollectionContains = False

End Function
