Fill hole with temp body using SOLIDWORKS API

Edit ArticleEdit Article
Comments

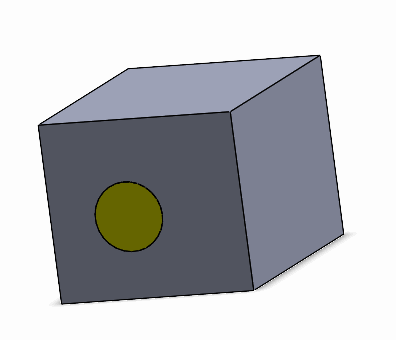

Hole filled with a temp geometry
Hole filled with a temp geometry

This VBA example demonstrates how to use IModeler::CreateBodyFromFaces2 API to fill the hole of the selected feature (e.g. cut-extrude) with temp geometry.

Macro stops execution and displays temp body. Continue execution to remove the temp body.

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If swModel Is Nothing Then
        Err.Raise vbError, "", "Open model"
    End If

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = swModel.SelectionManager

    Dim swFeat As SldWorks.Feature
    Set swFeat = swSelMgr.GetSelectedObject6(1, -1)

    If swFeat Is Nothing Then
        Err.Raise vbError, "", "Select feature"
    End If

    Dim vFaces As Variant

    Dim swTempBody As SldWorks.Body2

    vFaces = swFeat.GetFaces

    Dim swModeler As SldWorks.Modeler
    Set swModeler = swApp.GetModeler

    Set swTempBody = swModeler.CreateBodyFromFaces2(UBound(vFaces) + 1, vFaces, swCreateFacesBodyAction_e.swCreateFacesBodyActionCap, _
                                                False, False)

    If swTempBody Is Nothing Then
        Err.Raise vbError, "", "Failed to create body"
    End If

    swTempBody.Display3 swModel, RGB(255, 255, 0), swTempBodySelectOptions_e.swTempBodySelectOptionNone

    Stop

End Sub
