Insert BOM balloons into drawing view using SOLIDWORKS API

Edit ArticleEdit Article

BOM Balloons in the component
BOM Balloons in the component

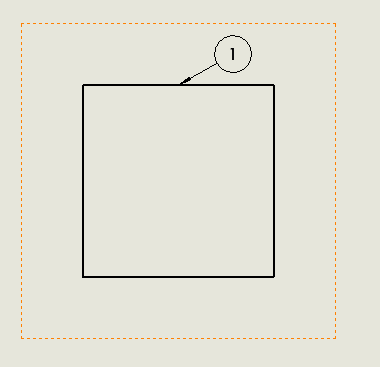

This VBA macro demonstrates how to insert balloons for all visible components of the first drawing view in the active drawing sheet using SOLIDWORKS API.

Macro will traverse all visible components and all visible entities of the view and will attach balloon linked to Item Number to the first visible entity.

Balloon leader will be attached to the middle of the corresponding edge. While balloon itself will be offset by 10 mm in X and Y directions from the middle of the edge.

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks
    Dim swModel As SldWorks.ModelDoc2
    Dim swDraw As SldWorks.DrawingDoc
    Dim swSelMgr As SldWorks.SelectionMgr
    Set swModel = swApp.ActiveDoc
    Set swDraw = swModel
    Set swSelMgr = swModel.SelectionManager
    Dim swSheet As SldWorks.Sheet
    Dim swView As SldWorks.view
    Set swSheet = swDraw.GetCurrentSheet()
    Set swView = swSheet.GetViews()(0)
    Dim vComps As Variant
    vComps = swView.GetVisibleComponents()
    Dim i As Integer
    For i = 0 To UBound(vComps)
        Dim swComp As SldWorks.Component2
        Set swComp = vComps(i)
        Dim vEdges As Variant
        vEdges = swView.GetVisibleEntities2(swComp, swViewEntityType_e.swViewEntityType_Edge)
        Dim swEdge As SldWorks.edge
        Set swEdge = vEdges(0)
        Dim swEnt As SldWorks.Entity
        Set swEnt = swEdge
        Dim swSelData As SldWorks.SelectData
        Set swSelData = swSelMgr.CreateSelectData
        swSelData.view = swView
        swEnt.Select4 False, swSelData
        Dim swBomBalloonParams As SldWorks.BalloonOptions

        Set swBomBalloonParams = swModel.Extension.CreateBalloonOptions()
        Dim swBalloonNote As SldWorks.Note
        Set swBalloonNote = swModel.Extension.InsertBOMBalloon2(swBomBalloonParams)
        Dim swAnn As SldWorks.Annotation
        Set swAnn = swBalloonNote.GetAnnotation
        Dim vPos As Variant
        vPos = CalculateBaloonPosition(swEdge, swView)
        swAnn.SetLeaderAttachmentPointAtIndex 0, vPos(0), vPos(1), 0
        swAnn.SetPosition2 vPos(0) + 0.01, vPos(1) + 0.01, 0
End Sub

Function CalculateBaloonPosition(edge As SldWorks.edge, view As SldWorks.view) As Variant
    Dim swCurve As SldWorks.Curve
    Set swCurve = edge.GetCurve
    Dim swMathUtils As SldWorks.MathUtility
    Set swMathUtils = swApp.GetMathUtility
    Dim swVertex As SldWorks.Vertex
    Dim vStartPt As Variant
    Dim vEndPt As Variant
    Set swVertex = edge.GetStartVertex()
    vStartPt = swVertex.GetPoint
    Set swVertex = edge.GetEndVertex()
    vEndPt = swVertex.GetPoint
    Dim dPt(2) As Double
    dPt(0) = (vEndPt(0) + vStartPt(0)) / 2
    dPt(1) = (vEndPt(1) + vStartPt(1)) / 2
    dPt(2) = (vEndPt(2) + vStartPt(2)) / 2
    Dim swMathPt As SldWorks.MathPoint
    Set swMathPt = swMathUtils.CreatePoint(dPt)

    Dim swTransform As SldWorks.MathTransform
    Set swTransform = view.ModelToViewTransform

    Set swMathPt = swMathPt.MultiplyTransform(swTransform)
    Dim vPt As Variant
    vPt = swMathPt.ArrayData
    vPt(0) = CDbl(vPt(0))
    vPt(1) = CDbl(vPt(1))
    vPt(2) = CDbl(vPt(2))
    CalculateBaloonPosition = vPt
End Function
