Custom properties in SOLIDWORKS drawing
Custom properties in SOLIDWORKS drawing

This macro copies the specified custom properties from the SOLIDWORKS part or assembly referenced in the drawing view to the drawing view itself.

Custom properties can be specified in the PRP_NAMES constant in the macro. Use comma to specify multiple properties to copy.

Const PRP_NAMES As String = "PartNo,Description,Title"

In order to select the properties to copy at runtime, specify an empty string as the value of PRP_NAMES

Const PRP_NAMES As String = ""

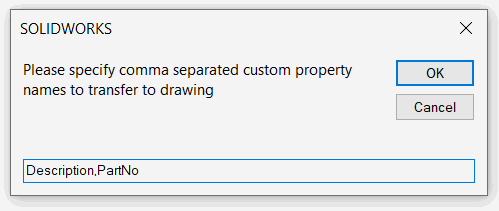

In this case the following input box will be displayed.

Input box for properties to be copied to drawing
Input box for properties to be copied to drawing

User can specify either single property or multiple properties, separated by comma.

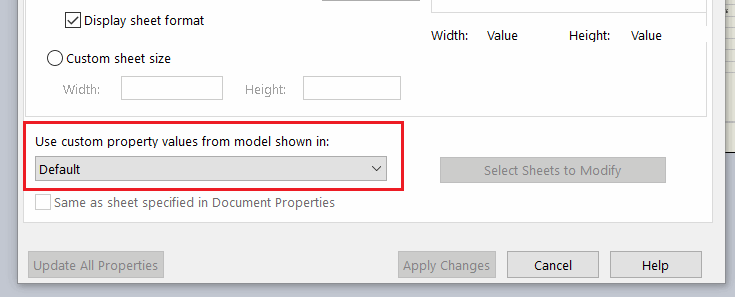

If drawing view is selected when running the macro, properties will be copied from this drawing view. Otherwise, the default properties view will be used as specified in the sheet properties (this is usually the first view in the drawing):

Drawing View for custom properties
Drawing View for custom properties

At first, custom property value will be extracted from the configuration of the model which corresponds to the referenced configuration of the drawing view. If the property doesn't exist or empty, file specific custom property will be extracted.

Const PRP_NAMES As String = "Description" 'comma separated, empty string for popup select

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    On Error GoTo catch

try:

    Dim swDraw As SldWorks.DrawingDoc

    Set swDraw = swApp.ActiveDoc

    If swDraw Is Nothing Then
        Err.Raise vbError, , "Please open the drawing"
    End If

    Dim vPrpNames As Variant
    vPrpNames = GetPropertyNames()

    Dim swPrpsView As SldWorks.view
    Set swPrpsView = GetPropertiesView(swDraw)

    If swPrpsView Is Nothing Then
        Err.Raise vbError, , "Failed to find the drawing view with properties"
    End If

    Dim i As Integer

    Dim swDrwPrpMgr As SldWorks.CustomPropertyManager
    Set swDrwPrpMgr = swDraw.Extension.CustomPropertyManager("")

    For i = 0 To UBound(vPrpNames)

        Dim prpName As String
        Dim prpVal As String

        prpName = vPrpNames(i)
        prpVal = GetPropertyValue(swPrpsView, prpName)

        swDrwPrpMgr.Add2 prpName, swCustomInfoType_e.swCustomInfoText, prpVal
        swDrwPrpMgr.Set prpName, prpVal

    Next

    GoTo finally

catch:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally:

End Sub

Function GetPropertyValue(view As SldWorks.view, prpName As String)

    Dim swViewDoc As SldWorks.ModelDoc2
    Set swViewDoc = view.ReferencedDocument

    If swViewDoc Is Nothing Then
        Err.Raise vbError, , "Cannot get document from the view. Make sure view is not empty and document is not lightweigh"
    End If

    Dim prpVal As String

    Dim swCustPrpMgr As SldWorks.CustomPropertyManager
    Set swCustPrpMgr = swViewDoc.Extension.CustomPropertyManager(view.ReferencedConfiguration)

    swCustPrpMgr.Get3 prpName, False, "", prpVal

    If prpVal = "" Then
        Set swCustPrpMgr = swViewDoc.Extension.CustomPropertyManager("")

        swCustPrpMgr.Get3 prpName, False, "", prpVal
    End If

    GetPropertyValue = prpVal

End Function

Function GetPropertyNames() As Variant

    Dim prpNames As String
    prpNames = PRP_NAMES

    If prpNames = "" Then
        prpNames = InputBox("Please specify comma separated custom property names to transfer to drawing")
    End If

    If prpNames = "" Then
        End
    End If

    Dim vPrpNames As Variant
    vPrpNames = Split(prpNames, ",")

    Dim i As Integer

    For i = 0 To UBound(vPrpNames)
        vPrpNames(i) = Trim(CStr(vPrpNames(i)))
    Next

    GetPropertyNames = vPrpNames

End Function

Function GetPropertiesView(draw As SldWorks.DrawingDoc) As SldWorks.view

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = draw.SelectionManager

    Dim swCustPrpView As SldWorks.view
    Set swCustPrpView = swSelMgr.GetSelectedObjectsDrawingView2(1, -1)

    If Not swCustPrpView Is Nothing Then
        Set GetPropertiesView = swCustPrpView
        Exit Function
    End If

    Dim vSheetNames As Variant
    vSheetNames = draw.GetSheetNames

    Dim i As Integer

    For i = 0 To UBound(vSheetNames)

        Dim swSheet As SldWorks.Sheet
        Set swSheet = draw.Sheet(vSheetNames(i))

        Dim custPrpViewName As String
        custPrpViewName = swSheet.CustomPropertyView

        Dim vViews As Variant
        vViews = swSheet.GetViews()

        Dim j As Integer

        For j = 0 To UBound(vViews)

            Dim swView As SldWorks.view
            Set swView = vViews(j)

            If LCase(swView.Name) = LCase(custPrpViewName) Then
                Set swCustPrpView = swView
                Exit For
            End If

        Next

        If swCustPrpView Is Nothing Then
            Set swCustPrpView = vViews(0)
        End If

    Next

    Set GetPropertiesView = swCustPrpView

End Function
