VBA macro to align referenced configuration of components to assembly configurations

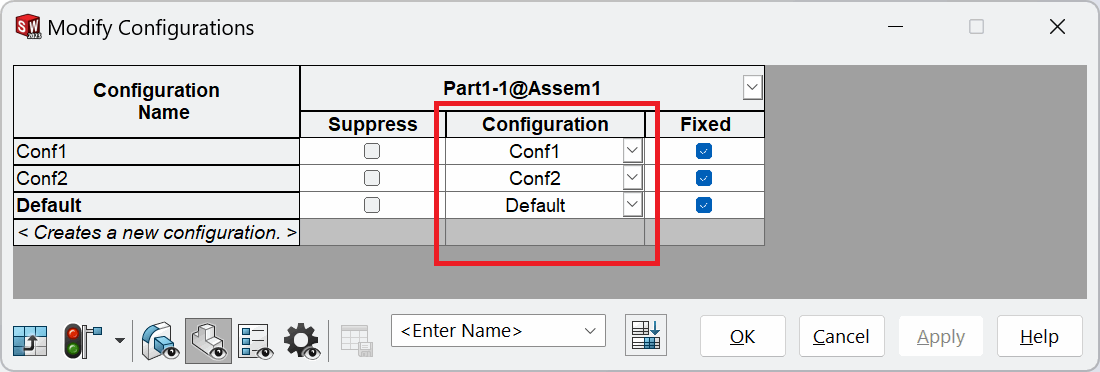

This VBA macro aligns the referenced configurations of all selected components to the corresponding assembly configuration. For example if assembly has 3 configurations A, B and C, then referenced configurations for all selected components will be set to A, B and C in the respective configuration of the assembly.

Macro processes all root configurations (or optionally all configurations)

Const ROOT_CONFS_ONLY As Boolean = False 'Process all assembly configurations

Multiple components can be selected and processed at the same time. Only top level-components are supported. For aligning configurations for sub-assembly, it is required to activate the sub-assembly in its own window.

Components in the lightweight mode are supported.

Const ROOT_CONFS_ONLY As Boolean = True

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    Dim swAssy As SldWorks.AssemblyDoc

    Set swAssy = swModel

    If Not swAssy Is Nothing Then

        Dim vComps As Variant
        vComps = GetSelectedRootComponents(swAssy)

        If Not IsEmpty(vComps) Then

            Dim vConfs As Variant
            vConfs = swModel.GetConfigurationNames

            Dim i As Integer

            For i = 0 To UBound(vConfs)

                Dim swConf As SldWorks.Configuration
                Set swConf = swModel.GetConfigurationByName(CStr(vConfs(i)))

                If swConf.GetParent() Is Nothing Or Not ROOT_CONFS_ONLY Then

                    Dim confParams() As String
                    Dim confParamVals() As String

                    ReDim confParams(UBound(vComps))
                    ReDim confParamVals(UBound(vComps))

                    Dim j As Integer

                    For j = 0 To UBound(vComps)

                        Dim swComp As SldWorks.Component2
                        Set swComp = vComps(j)

                        If HasConfiguration(swComp, swConf.Name) Then

                           confParams(j) = "$CONFIGURATION@" & GetComponentNameForParameter(swComp)
                           confParamVals(j) = swConf.Name

                        Else
                            Err.Raise vbError, "", swComp.Name2 & " does not contain configuration " & swConf.Name
                        End If

                    Next

                    swConf.SetParameters (confParams), (confParamVals)

                End If

            Next

        Else
            Err.Raise vbError, "", "Select components to process"
        End If

    Else
        Err.Raise vbError, "", "Open assembly"
    End If

End Sub

Function GetSelectedRootComponents(assm As SldWorks.AssemblyDoc) As Variant

    Dim swComps() As SldWorks.Component2

    Dim swSelMgr As SldWorks.SelectionMgr

    Set swSelMgr = assm.SelectionManager

    Dim i As Integer

    For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)

        Dim swComp As SldWorks.Component2
        Set swComp = swSelMgr.GetSelectedObjectsComponent4(i, -1)

        If Not swComp Is Nothing Then

            If swComp.GetParent() Is Nothing Then

                If (Not swComps) = -1 Then
                    ReDim swComps(0)
                Else
                    ReDim Preserve swComps(UBound(swComps) + 1)
                End If

                Set swComps(UBound(swComps)) = swComp

            Else
                Err.Raise vbError, "", "Only top level components are supported"
            End If

        End If

    Next

    If (Not swComps) = -1 Then
        GetSelectedRootComponents = Empty
    Else
        GetSelectedRootComponents = swComps
    End If

End Function

Function GetComponentNameForParameter(comp As SldWorks.Component2) As String

    Dim instId As Integer
    Dim compName As String
    compName = comp.Name2
    instId = CInt(Right(compName, Len(compName) - InStrRev(compName, "-")))
    compName = Left(compName, InStrRev(compName, "-") - 1)

    GetComponentNameForParameter = compName & "<" & instId & ">"

End Function

Function HasConfiguration(comp As SldWorks.Component2, confName As String) As Boolean

    Dim swRefModel As SldWorks.ModelDoc2
    Set swRefModel = comp.GetModelDoc2

    Dim vConfs As Variant

    If Not swRefModel Is Nothing Then
        vConfs = swRefModel.GetConfigurationNames
    Else
        vConfs = swApp.GetConfigurationNames(comp.GetPathName())
    End If

    HasConfiguration = Contains(vConfs, confName)

End Function

Function Contains(vArr As Variant, item As String) As Boolean

    Contains = False

    If Not IsEmpty(vArr) Then

        Dim i As Integer

        For i = 0 To UBound(vArr)
            If LCase(CStr(vArr(i))) = LCase(item) Then
                Contains = True
                Exit Function
            End If
        Next

    End If

End Function
