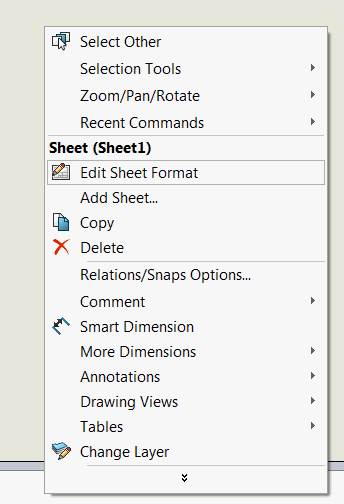

Edit sheet format context menu command
Edit sheet format context menu command

This VBA macro allows to disable (or password protect) the editing of the sheet format in SOLIDWORKS drawing using SOLIDWORKS API.

This macro can be useful where it is required to disallow users to modify the standard sheet format.

Macro provides 2 options which could be configured by changing the constants below:

Public Const LOCK_WITH_PASSWORD As Boolean = False
Public Const PASSWORD As String = ""

Locking the editing

Set the value of LOCK_WITH_PASSWORD to False.

The following message is displayed every time the Edit Sheet Format command is called and command is cancelled:

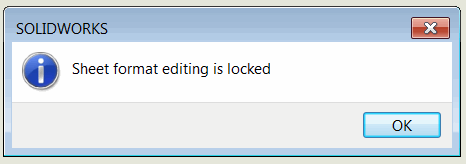

Message indicating that the sheet is locked for editing
Message indicating that the sheet is locked for editing

Password protecting the editing

Set the value of LOCK_WITH_PASSWORD to True. Set the value of PASSWORD to the target password.

It is recommended to password protect the VBA macro, so the password cannot be seen from the macro itself.

The following prompt is displayed every time the Edit Sheet Format command is called

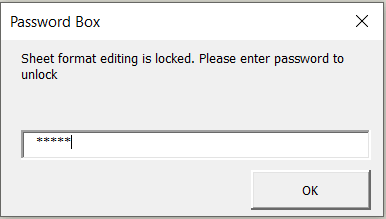

Prompt to enter password to unlock spreadsheet
Prompt to enter password to unlock spreadsheet

If password matches, the sheet format can be edited, otherwise the command is cancelled and error message is displayed.

Creating the macro

  • Create new macro and paste the code of Macro Module
  • Add new class module and name it SheetFormatEditorHandler. Paste the code below into class module.
  • Add new user form and name it PasswordBox. Paste the code below into the user form code
  • Add the controls to the form as shown below and specify the name of each control as marked on the image

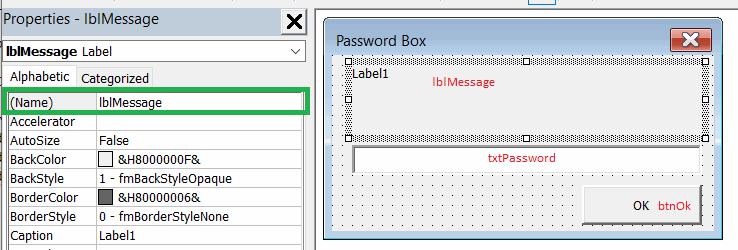

Controls in password box user form
Controls in password box user form
  • Set the value of PasswordChar property of Text Box control to * to hide the password from user interface while typing
Password char in text box control
Password char in text box control

The files tree should look similar to below image.

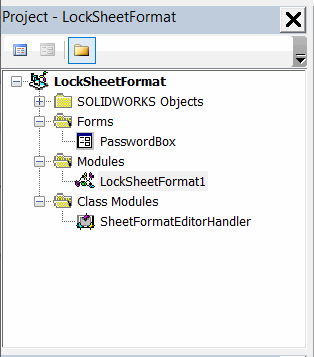

Macro files tree
Macro files tree

Follow the Run Macro On SOLIDWORKS Start for the instruction of setting up the automatic run of the macro on SOLIDWORKS startup.

Blocking other commands

This macro can be modified to block another commands. It could be also changed to handle multiple commands at the same time. In order to enable this it is required to modify the following line

If Command = swCommands_Edit_Template Then

To the

If Command = CmdId1 Or Command = CmdId2 ... Or Command = CmdId3 Then

For example the following line would block editing sketch, opening the SOLIDWORKS options dialog and printing the document. Refer the Capture Commands macro for an explanation of how to extract the IDs for the specific command in SOLIDWORKS.

If Command = 859 Or Command = 342 Or Command = 589 Then

Macro Module

Public Const LOCK_WITH_PASSWORD As Boolean = True
Public Const PASSWORD As String = "admin"

Dim swSheetFormatEditorHandler As SheetFormatEditorHandler

Sub main()

    Set swSheetFormatEditorHandler = New SheetFormatEditorHandler

End Sub

SheetFormatEditorHandler Class

Dim WithEvents swApp As SldWorks.SldWorks

Private Sub Class_Initialize()
    Set swApp = Application.SldWorks
End Sub

Private Function swApp_CommandOpenPreNotify(ByVal Command As Long, ByVal UserCommand As Long) As Long

    Const swCommands_Edit_Template As Long = 1501

    If Command = swCommands_Edit_Template Then
        Dim cancel As Boolean
        cancel = True

        If LOCK_WITH_PASSWORD Then

            Dim pwd As String
            PasswordBox.Message = "Sheet format editing is locked. Please enter password to unlock"
            PasswordBox.ShowDialog
            pwd = PasswordBox.Password

            If pwd <> "" Then
                If pwd = Password Then
                    cancel = False
                Else
                    swApp.SendMsgToUser2 "Password is incorrect", swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
                End If
            End If
        Else
            swApp.SendMsgToUser2 "Sheet format editing is locked", swMessageBoxIcon_e.swMbInformation, swMessageBoxBtn_e.swMbOk
        End If

        swApp_CommandOpenPreNotify = IIf(cancel, 1, 0)
    End If

End Function

PasswordBox User Form

Public Password As String

Public Property Let Message(msg As String)
     lblMessage.Caption = msg
End Property

Public Sub ShowDialog()
    Password = ""
    txtPassword.Text = ""
    Show vbModal
End Sub

Private Sub btnOk_Click()

    Password = txtPassword.Text
    Me.Hide

End Sub
