VBA macro to export sketch point coordinates to CSV file

Edit ArticleEdit Article
More 'Goodies'

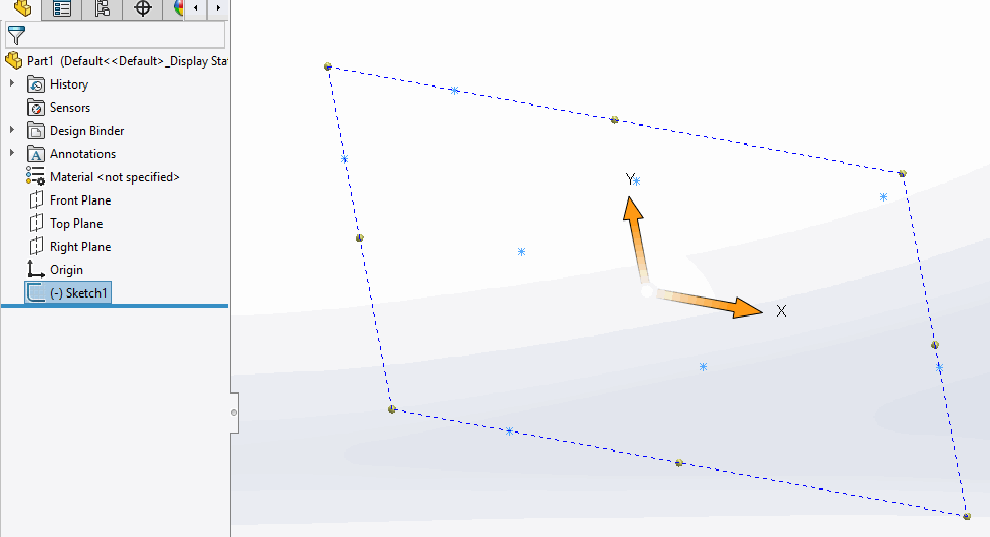

Sketch points in the selected sketch
Sketch points in the selected sketch

This VBA macro allows to export the coordinates of all sketch points from the selected sketch into the CSV file.

CSV file can be opened in Excel

Sketch points coordinates opened in Excel
Sketch points coordinates opened in Excel

Macro has an option to export coordinates in the sketch space (XY for 2D sketch) or in the model space (XYZ). Macro has an option to convert the points coordinates to system units (meters) or user units, currently assigned to the model.

Configure the macro by changing the constants below.

Const CONVERT_TO_USER_UNIT As Boolean = True 'True to use the current model units, False to use system units (meters)
Const CONVERT_TO_MODEL_SPACE As Boolean = True 'For 2D Sketches, True to export coordinates in the sketch space, False to convert coordinates to the model space
Const OUT_PATH As String = "D:\points.csv" 'Full path to the output file

Const CONVERT_TO_USER_UNIT As Boolean = True
Const CONVERT_TO_MODEL_SPACE As Boolean = True
Const OUT_PATH As String = "D:\points.csv"

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

try_:
    On Error GoTo catch_

    Set swModel = swApp.ActiveDoc

    If swModel Is Nothing Then
        Err.Raise vbError, "", "Please open model"
    End If

    Dim swSelMgr As SldWorks.SelectionMgr

    Set swSelMgr = swModel.SelectionManager

    Dim swSketchFeat As SldWorks.Feature

    Set swSketchFeat = swSelMgr.GetSelectedObject6(1, -1)

    Dim swSketch As SldWorks.sketch

    If Not swSketchFeat Is Nothing Then
        Set swSketch = swSketchFeat.GetSpecificFeature2
    End If

    If swSketch Is Nothing Then
        Err.Raise vbError, "", "Please select sketch"
    End If

    Dim vPts As Variant
    vPts = ExtractPoints(swModel, swSketch, CONVERT_TO_MODEL_SPACE, CONVERT_TO_USER_UNIT)

    WritePointsToCsvFile OUT_PATH, vPts

    GoTo finally_

catch_:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally_:

End Sub

Function ExtractPoints(model As SldWorks.ModelDoc2, sketch As SldWorks.sketch, convertCoordsToModelSpace As Boolean, convertCoordsToUserUnits As Boolean) As Variant

    Dim vSkPts As Variant
    vSkPts = sketch.GetSketchPoints2()

    Dim i As Integer

    If IsEmpty(vSkPts) Then
        Err.Raise vbError, "", "Sketch contains no points"
    End If

    Dim vPts() As Variant
    ReDim vPts(UBound(vSkPts))

    For i = 0 To UBound(vSkPts)

        Dim swSkPt As SldWorks.SketchPoint
        Set swSkPt = vSkPts(i)

        Dim dPt(2) As Double
        dPt(0) = swSkPt.X: dPt(1) = swSkPt.Y: dPt(2) = swSkPt.Z

        Dim vPt As Variant
        vPt = dPt

        If convertCoordsToModelSpace Then
            vPt = ConvertPointLocation(vPt, sketch.ModelToSketchTransform.Inverse())
        End If

        If convertCoordsToUserUnits Then
            vPt = ConvertToUserUnits(vPt, model)
        End If

        vPts(i) = vPt

    Next

    ExtractPoints = vPts

End Function

Function ConvertPointLocation(pt As Variant, transform As SldWorks.MathTransform) As Variant

    Dim swMathUtils As SldWorks.MathUtility
    Set swMathUtils = swApp.GetMathUtility

    Dim swMathPt As SldWorks.MathPoint
    Set swMathPt = swMathUtils.CreatePoint(pt)

    Set swMathPt = swMathPt.MultiplyTransform(transform)

    ConvertPointLocation = swMathPt.ArrayData

End Function

Function ConvertToUserUnits(pt As Variant, model As SldWorks.ModelDoc2) As Variant

    Dim swUserUnits As SldWorks.UserUnit
    Set swUserUnits = model.GetUserUnit(swUserUnitsType_e.swLengthUnit)

    Dim convFactor As Double
    convFactor = swUserUnits.GetConversionFactor

    Dim dPt(2) As Double

    dPt(0) = pt(0) * convFactor
    dPt(1) = pt(1) * convFactor
    dPt(2) = pt(2) * convFactor

    ConvertToUserUnits = dPt

End Function

Sub WritePointsToCsvFile(filePath As String, vPts As Variant)

    Dim fileNmb As Integer
    fileNmb = FreeFile

    Open filePath For Output As #fileNmb

    Dim i As Integer

    For i = 0 To UBound(vPts)

        Print #fileNmb, vPts(i)(0) & "," & vPts(i)(1) & "," & vPts(i)(2)

    Next

    Close #fileNmb

End Sub
