Section slices of the body
Section slices of the body

This example demonstrates how to slice the selected body and find the section properties of the resulting section slices using SOLIDWORKS API.

  • Specify the number of required slices in the SLICES_COUNT constant
    Const SLICES_COUNT As Integer = 100

  • Select solid body in Part document
  • As the result:
    • Body is sliced in Y direction
    • Area of each slice is output to the immediate window in VBA editor

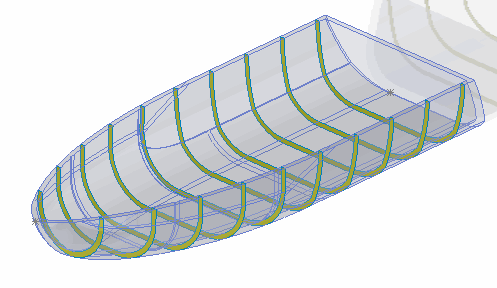

    • Previews of each slice is displayed in the graphics area
  • Continue the macro to hide the preview

Algorithm

Identifying the starting point and the maximum length of the body

  • Find 2 extreme points in positive and negative direction of the direction vector (Y vector in this example)
  • Project those points onto the direction vector line (vector can be fixed at any point, in this example it is fixed at 0, 0, 0).
  • Once projected calculate the distance between points - this will be equal to the maximum length of the body
  • First extreme point is a starting point

Identifying the maximum radius of the body

It is only required to find big enough radius to cover the body. This radius will be used to create a planar body for intersection purposes. In this example the maximum radius is equal to the diagonal of the bounding box which will ensure the planar section will cover the input body

Calculate sections

  • Calculate the step of section
  • For each section move the starting point by the step. Sections at end points should be skipped as it won’t produce any intersection results
  • At each step create a temp section plane (disc) and intersect it with the solid body
    • Result of the intersection is the sheet body (or bodies) which is a section slice at this position
    • Store the pointer to the section in the collection
    • All the properties can be accessed from the resulting body (e.g. surface area)

Preview the results

  • Display each of the resulting bodies as a preview
  • Stop the execution of the macro to validate the result
    • It might be required to hide or change the transparency of the original body to see the sections displayed
  • Continue macro execution. This will clear the preview
Const SLICES_COUNT As Integer = 100

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swBody As SldWorks.Body2
        Set swBody = swModel.SelectionManager.GetSelectedObject6(1, -1)

        If Not swBody Is Nothing Then

            Dim startTime As Double
            startTime = Timer

            Dim swSliceBodies As Collection
            Set swSliceBodies = New Collection

            Dim maxRadius As Double
            maxRadius = GetMaxRadius(swBody)

            Dim i As Integer

            Dim dNorm(2) As Double
            Dim dRef(2) As Double

            dNorm(0) = 0: dNorm(1) = 1: dNorm(2) = 0
            dRef(0) = 1: dRef(1) = 0: dRef(2) = 0

            Dim vStartPt As Variant
            Dim length As Double
            vStartPt = GetStartPoint(swBody, dNorm, length)

            Dim step As Double
            step = length / (SLICES_COUNT + 1)

            For i = 1 To (SLICES_COUNT + 1) - 1

                Dim swCutPlane As SldWorks.Body2

                Dim vRoot As Variant
                vRoot = MovePoint(vStartPt, dNorm, step * i)

                Set swCutPlane = CreatePlanarBody(vRoot, dNorm, dRef, maxRadius)

                Dim swTempBody As SldWorks.Body2
                Set swTempBody = swBody.Copy

                Dim bodyErr As Long
                Dim vRes As Variant
                vRes = swCutPlane.Operations2(swBodyOperationType_e.SWBODYINTERSECT, swTempBody, bodyErr)

                Dim j As Integer

                If Not IsEmpty(vRes) Then
                    For j = 0 To UBound(vRes)
                        Dim swResBody As SldWorks.Body2
                        Set swResBody = vRes(j)
                        Debug.Print "Area: " & swResBody.GetMassProperties(0)(4)
                        swSliceBodies.Add swResBody
                    Next
                Else
                    err.Raise vbError, , "Intersection failed"
                End If

            Next

            Debug.Print "Time: " & Round(Timer - startTime, 2)

            For i = 1 To swSliceBodies.Count
                swSliceBodies(i).Display3 swModel, RGB(255, 255, 0), swTempBodySelectOptions_e.swTempBodySelectOptionNone
            Next

            Stop

            For i = swSliceBodies.Count To 1 Step -1
                swSliceBodies.Remove i
            Next

        Else
            MsgBox "Please select body"
        End If

    Else
        MsgBox "Please open model"
    End If

End Sub

Function GetMaxRadius(body As SldWorks.Body2) As Double

    Dim vBox As Variant
    vBox = body.GetBodyBox()

    GetMaxRadius = Sqrt((vBox(3) - vBox(0)) ^ 2 + (vBox(4) - vBox(1)) ^ 2 + (vBox(5) - vBox(2)) ^ 2)

End Function

Function GetStartPoint(body As SldWorks.Body2, vDir As Variant, ByRef length As Double) As Variant

    Dim x As Double
    Dim y As Double
    Dim z As Double

    body.GetExtremePoint CDbl(-vDir(0)), CDbl(-vDir(1)), CDbl(-vDir(2)), x, y, z

    Dim dPt(2) As Double
    dPt(0) = x: dPt(1) = y: dPt(2) = z

    GetStartPoint = dPt

    body.GetExtremePoint CDbl(vDir(0)), CDbl(vDir(1)), CDbl(vDir(2)), x, y, z

    dPt(0) = x: dPt(1) = y: dPt(2) = z

    Dim dVecPt(2) As Double

    Dim vPt1 As Variant
    Dim vPt2 As Variant

    vPt1 = ProjectPointOnVector(GetStartPoint, vDir, dVecPt)
    vPt2 = ProjectPointOnVector(dPt, vDir, dVecPt)

    length = Sqrt((vPt1(0) - vPt2(0)) ^ 2 + (vPt1(1) - vPt2(1)) ^ 2 + (vPt1(2) - vPt2(2)) ^ 2)

End Function

Function ProjectPointOnVector(vPt As Variant, vVec As Variant, vPtOnVec As Variant) As Variant

    Dim swMathUtils As SldWorks.MathUtility
    Set swMathUtils = swApp.GetMathUtility

    Dim swPt As SldWorks.MathPoint
    Dim swVec As SldWorks.MathVector
    Dim swPtOnVec As SldWorks.MathPoint

    Set swPt = swMathUtils.CreatePoint(vPt)
    Set swVec = swMathUtils.CreateVector(vVec)
    Set swPtOnVec = swMathUtils.CreatePoint(vPtOnVec)

    Dim swVec2 As SldWorks.MathVector
    Set swVec2 = swPtOnVec.Subtract(swPt)

    Dim magn As Double
    Dim prod As Double
    Dim dist As Double

    prod = swVec.Dot(swVec2)
    magn = swVec.GetLength() ^ 2
    dist = prod / magn

    Dim swDestPt As SldWorks.MathPoint
    Set swDestPt = swPtOnVec.AddVector(swVec.Scale(dist))

    ProjectPointOnVector = swDestPt.ArrayData

End Function

Function CreatePlanarBody(vRoot As Variant, vNorm As Variant, vRef As Variant, radius As Double) As SldWorks.Body2

    Dim swModeler As SldWorks.Modeler

    Set swModeler = swApp.GetModeler

    Dim swSurf As SldWorks.Surface

    Set swSurf = swModeler.CreatePlanarSurface2(vRoot, vNorm, vRef)

    Dim swTrimCurve(0) As SldWorks.Curve

    Dim vArcPt As Variant
    vArcPt = MovePoint(vRoot, vRef, radius)

    Set swTrimCurve(0) = swModeler.CreateArc(vRoot, vNorm, radius, vArcPt, vArcPt)

    Set CreatePlanarBody = swSurf.CreateTrimmedSheet4(swTrimCurve, True)

End Function

Function MovePoint(vPt As Variant, vDir As Variant, dist As Double) As Variant

    Dim swMathUtils As SldWorks.MathUtility

    Set swMathUtils = swApp.GetMathUtility

    Dim swPt As SldWorks.MathPoint
    Dim swDir As SldWorks.MathVector

    Set swPt = swMathUtils.CreatePoint(vPt)
    Set swDir = swMathUtils.CreateVector(vDir)

    Set swDir = swDir.Normalise()
    Set swDir = swDir.Scale(dist)

    Set swPt = swPt.AddVector(swDir)

    MovePoint = swPt.ArrayData

End Function
