Rename cut list features based on custom properties using SOLIDWORKS API

This VBA macro allows to rename all cut list features for weldment and sheet metal part based on the name template which can include values of file and cut-list custom properties, file name, configuration name and free text.

To configure the macro modify the values of NAME_TEMPLATE, INDEX_FORMAT and ALWAYS_ADD_INDEX constants

NAME_TEMPLATE can contain free text and placeholders which will be dynamically replaced by corresponding custom properties values

The following placeholders are supported

<_FileName_> - name of the part file (without extension) where the cut-list resides in
<_ConfName_> - name of the active configuration of the part file

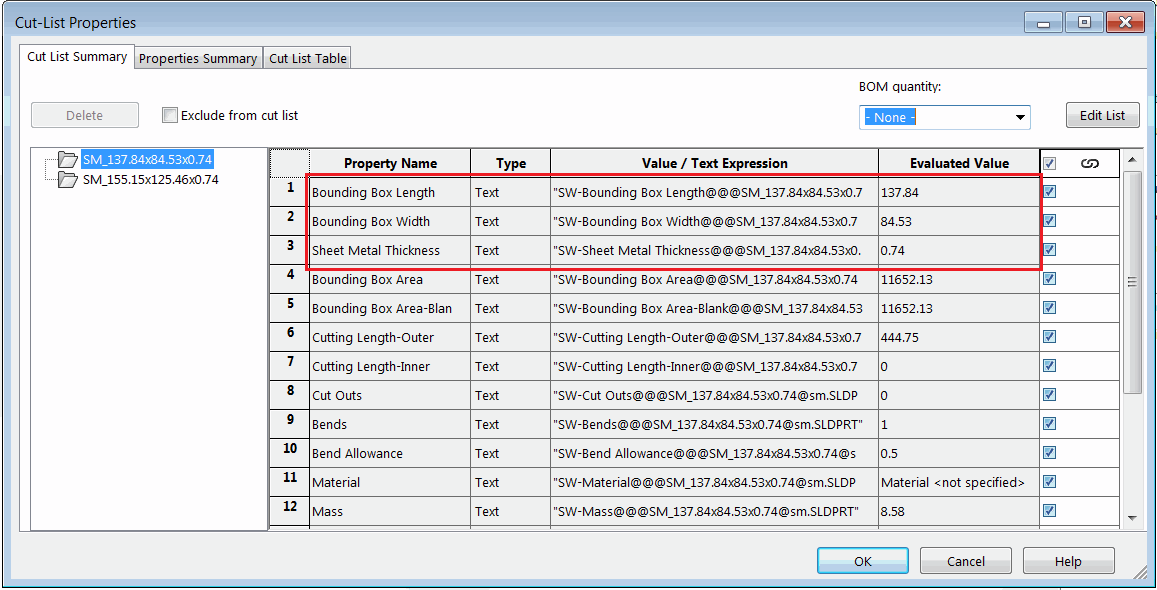

<$CLPRP:[PropertyName]> - any name of the cut-list property to read value from, e.g. is replaced with the value of cut-list custom property Thickness
<$PRP:[PropertyName]> - any name of the custom property of part to read value from, e.g. is replaced with the value of cut-list custom property PartNo

Placeholders will be resolved for each cut-list at runtime.

INDEX_FORMAT constant allows to specify the padding of the index for feature name if name is used. By default feature names resolved to the same value will have an index for second feature and so on, unless ALWAYS_ADD_INDEX constant is set to true. In this case first feature will have index as well.

For example the following setup (in case part PartNo equals to ABC) will resolve cut-list feature to ABC_001, ABC_002, ABC_003 etc.

Const NAME_TEMPLATE = "<$PRP:PartNo>_"
Const INDEX_FORMAT As String = "000"
Const ALWAYS_ADD_INDEX As Boolean = True

Watch video demonstration

Const NAME_TEMPLATE = "<_FileName_>_<$CLPRP:Description>_<$PRP:PartNo>"
Const INDEX_FORMAT As String = "0"
Const ALWAYS_ADD_INDEX As Boolean = False

Dim swApp As SldWorks.SldWorks

Sub main()

try_:
    On Error GoTo catch_

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim vCutLists As Variant
        vCutLists = GetCutLists(swModel)

        Dim i As Integer

        For i = 0 To UBound(vCutLists)

            Dim swCutListFeat As SldWorks.Feature
            Set swCutListFeat = vCutLists(i)

            Dim featBaseName As String

            featBaseName = ComposeFeatureName(NAME_TEMPLATE, swModel, swCutListFeat)

            Dim featName As String
            featName = ResolveFeatureName(swModel, featBaseName)

            If featName <> "" Then
                If swCutListFeat.Name <> featName Then
                    swCutListFeat.Name = featName
                End If
            Else
                Debug.Print "Empty name for " & swCutListFeat.Name
            End If
        Next

    Else
        MsgBox "Please open the document"
    End If

    GoTo finally_

catch_:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally_:

End Sub

Function ResolveFeatureName(model As ModelDoc2, baseName As String) As String

    Dim featName As String

    If baseName <> "" Then

        Dim index As Integer

        If ALWAYS_ADD_INDEX Then
            index = 1
            featName = baseName + Format$(index, INDEX_FORMAT)
        Else
            index = 0
            featName = baseName
        End If

        While model.FeatureManager.IsNameUsed(swNameType_e.swFeatureName, featName)
            index = index + 1
            featName = baseName + Format$(index, INDEX_FORMAT)
        Wend

    Else
        featName = ""
    End If

    ResolveFeatureName = featName

End Function

Function GetCutLists(model As SldWorks.ModelDoc2) As Variant

    GetCutLists = GetFeaturesByType(model, "CutListFolder")

End Function

Function GetFeaturesByType(model As SldWorks.ModelDoc2, typeName As String) As Variant

    Dim swFeats() As SldWorks.Feature

    Dim swFeat As SldWorks.Feature

    Set swFeat = model.FirstFeature

    Do While Not swFeat Is Nothing

        ProcessFeature swFeat, swFeats, typeName

        Set swFeat = swFeat.GetNextFeature

    Loop

    If (Not swFeats) = -1 Then
        GetFeaturesByType = Empty
    Else
        GetFeaturesByType = swFeats
    End If

End Function

Sub ProcessFeature(thisFeat As SldWorks.Feature, featsArr() As SldWorks.Feature, typeName As String)

    If thisFeat.GetTypeName2() = typeName Then

        If (Not featsArr) = -1 Then
            ReDim featsArr(0)
            Set featsArr(0) = thisFeat
        Else
            Dim i As Integer

            For i = 0 To UBound(featsArr)
                If swApp.IsSame(featsArr(i), thisFeat) = swObjectEquality.swObjectSame Then
                    Exit Sub
                End If
            Next

            ReDim Preserve featsArr(UBound(featsArr) + 1)
            Set featsArr(UBound(featsArr)) = thisFeat
        End If

    End If

    Dim swSubFeat As SldWorks.Feature
    Set swSubFeat = thisFeat.GetFirstSubFeature

    While Not swSubFeat Is Nothing
        ProcessFeature swSubFeat, featsArr, typeName
        Set swSubFeat = swSubFeat.GetNextSubFeature
    Wend

End Sub

Function ComposeFeatureName(template As String, model As SldWorks.ModelDoc2, cutListFeat As SldWorks.Feature) As String

    Dim regEx As Object
    Set regEx = CreateObject("VBScript.RegExp")

    regEx.Global = True
    regEx.IgnoreCase = True
    regEx.Pattern = "<[^>]*>"

    Dim regExMatches As Object
    Set regExMatches = regEx.Execute(template)

    Dim i As Integer

    Dim outFeatName As String
    outFeatName = template

    For i = regExMatches.Count - 1 To 0 Step -1

        Dim regExMatch As Object
        Set regExMatch = regExMatches.Item(i)

        Dim tokenName As String
        tokenName = Mid(regExMatch.Value, 2, Len(regExMatch.Value) - 2)

        outFeatName = Left(outFeatName, regExMatch.FirstIndex) & ResolveToken(tokenName, model, cutListFeat) & Right(outFeatName, Len(outFeatName) - (regExMatch.FirstIndex + regExMatch.Length))
    Next

    ComposeFeatureName = outFeatName

End Function

Function ResolveToken(token As String, model As SldWorks.ModelDoc2, cutListFeat As SldWorks.Feature) As String

    Const FILE_NAME_TOKEN As String = "_FileName_"
    Const CONF_NAME_TOKEN As String = "_ConfName_"

    Const PRP_TOKEN As String = "$PRP:"
    Const CUT_LIST_PRP_TOKEN As String = "$CLPRP:"

    Select Case LCase(token)
        Case LCase(FILE_NAME_TOKEN)
            ResolveToken = GetFileNameWithoutExtension(model.GetPathName)
        Case LCase(CONF_NAME_TOKEN)
            ResolveToken = model.ConfigurationManager.ActiveConfiguration.Name
        Case Else

            Dim prpName As String

            If Left(token, Len(PRP_TOKEN)) = PRP_TOKEN Then
                prpName = Right(token, Len(token) - Len(PRP_TOKEN))
                ResolveToken = GetModelPropertyValue(model, model.ConfigurationManager.ActiveConfiguration.Name, prpName)
            ElseIf Left(token, Len(CUT_LIST_PRP_TOKEN)) = CUT_LIST_PRP_TOKEN Then
                prpName = Right(token, Len(token) - Len(CUT_LIST_PRP_TOKEN))
                ResolveToken = GetPropertyValue(cutListFeat.CustomPropertyManager, prpName)
            Else
                Err.Raise vbError, "", "Unrecognized token: " & token
            End If

    End Select

End Function

Function GetModelPropertyValue(model As SldWorks.ModelDoc2, confName As String, prpName As String) As String

    Dim prpVal As String
    Dim swCustPrpMgr As SldWorks.CustomPropertyManager

    Set swCustPrpMgr = model.Extension.CustomPropertyManager(confName)
    prpVal = GetPropertyValue(swCustPrpMgr, prpName)

    If prpVal = "" Then
        Set swCustPrpMgr = model.Extension.CustomPropertyManager("")
        prpVal = GetPropertyValue(swCustPrpMgr, prpName)
    End If

    GetModelPropertyValue = prpVal

End Function

Function GetPropertyValue(custPrpMgr As SldWorks.CustomPropertyManager, prpName As String) As String
    Dim resVal As String
    custPrpMgr.Get2 prpName, "", resVal
    GetPropertyValue = resVal
End Function

Function GetFileNameWithoutExtension(path As String) As String
    GetFileNameWithoutExtension = Mid(path, InStrRev(path, "\") + 1, InStrRev(path, ".") - InStrRev(path, "\") - 1)
End Function
