Create invisible attribute using SOLIDWORKS API

This example creates an invisible attribute and attaches to the selected object (entity or component).

Attribute ca be hidden by setting the corresponding flag in the IAttributeDef::CreateInstance5 SOLIDWORKS API method.

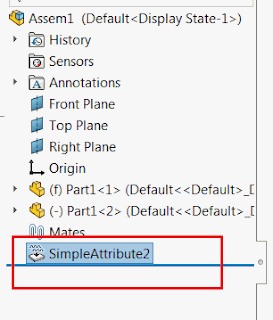

Attribute feature inserted to the Feature Manager Tree

Macro stops the execution once the attribute is created. At this stage the attribute feature is invisible. When execution of macro continues (F5 or run is clicked) the feature is set to visible.

Enum CreateAtttributeOptions_e
    Visible = 0
    Hidden = 1
End Enum

Dim swApp As SldWorks.SldWorks
Dim swAttDef As SldWorks.AttributeDef
Dim swModel As SldWorks.ModelDoc2
Dim swSelMgr As SldWorks.SelectionMgr

Const ATT_DEF_NAME As String = "SimpleAttribute"

Sub main()

    Set swApp = Application.SldWorks

    Set swAttDef = swApp.DefineAttribute(ATT_DEF_NAME)

    swAttDef.Register

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Set swSelMgr = swModel.SelectionManager

        Dim swAtt As SldWorks.Attribute
        Dim swSelObject As Object

        Set swSelObject = swSelMgr.GetSelectedObject6(1, -1)

        'get the unique name for the attribute
        Dim index As Integer
        index = 1

        Dim attName As String
        attName = ATT_DEF_NAME & index

        While swModel.FeatureManager.IsNameUsed(swNameType_e.swFeatureName, attName)
            attName = ATT_DEF_NAME & index
            index = index + 1
        Wend

        Set swAtt = swAttDef.CreateInstance5(swModel, swSelObject, attName, CreateAtttributeOptions_e.Hidden, swInConfigurationOpts_e.swAllConfiguration)

        'attribute feature is hidden in the tree
        Debug.Assert Not swAtt Is Nothing

        Dim swAttFeat As SldWorks.Feature
        Set swAttFeat = swModel.FeatureByName(swAtt.GetName())

        Stop

        'show the attribute feature
        swAttFeat.SetUIState swUIStates_e.swIsHiddenInFeatureMgr, False
        swModel.EditRebuild3

    Else
        MsgBox "Please open the model"
    End If

End Sub
