Display assembly visualization page using SOLIDWORKS API

Edit ArticleEdit Article
Comments

This example displays the feature tree page for Assembly Visualization using SOLIDWORKS API.

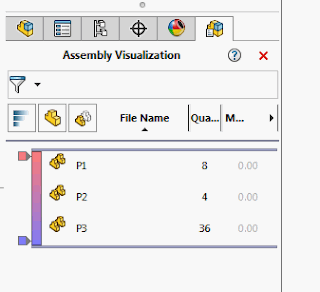

Assembly Visualization Feature Manager Tab
Assembly Visualization Feature Manager Tab

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swAssy As SldWorks.AssemblyDoc
    Set swAssy = TryGetActiveAssembly

    If Not swAssy Is Nothing Then
        swApp.RunCommand swCommands_VisualizationTool, ""
    Else
        MsgBox "Please open assembly"
    End If

End Sub

Function TryGetActiveAssembly() As SldWorks.AssemblyDoc

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        If swModel.GetType() = swDocumentTypes_e.swDocASSEMBLY Then
            Set TryGetActiveAssembly = swApp.ActiveDoc
        End If

    End If

End Function
