Macro renames table annotation using SOLIDWORKS API

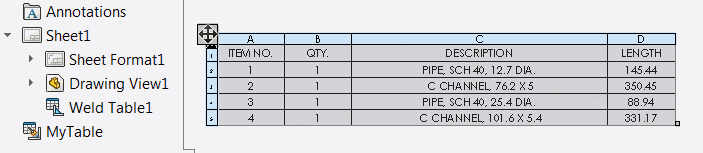

Table annotation renamed to a custom name

This example demonstrates how to rename the selected table using SOLIDWORKS API via ITableAnnotation interface. Table should be selected in the graphics area (not in the feature tree)

Specify the name of the table by modifying the constant at the beginning of the macro:

Const TABLE_NAME As String = "MyTable"

Const TABLE_NAME As String = "MyTable"

Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2

Sub main()

    Set swApp = Application.SldWorks

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSelMgr As SldWorks.SelectionMgr
        Set swSelMgr = swModel.SelectionManager

        Dim swTableAnn As SldWorks.TableAnnotation

        Set swTableAnn = swSelMgr.GetSelectedObject6(1, -1)

        If Not swTableAnn Is Nothing Then

            Dim swTableFeat As SldWorks.Feature

            Set swTableFeat = GetFeatureFromTableAnnotation(swTableAnn)

            Debug.Print swTableFeat.Name

            swTableFeat.Name = TABLE_NAME

        Else
            MsgBox "Please select table to rename"
        End If

    Else
        MsgBox "Please open the model"
    End If

End Sub

Function GetFeatureFromTableAnnotation(tableAnn As SldWorks.TableAnnotation) As SldWorks.Feature

    Dim swTableFeat As SldWorks.Feature

    Select Case tableAnn.Type

        Case swTableAnnotationType_e.swTableAnnotation_BillOfMaterials

            Dim swBomTableAnn As SldWorks.BomTableAnnotation
            Set swBomTableAnn = tableAnn
            Set swTableFeat = swBomTableAnn.BomFeature.GetFeature()

        Case swTableAnnotationType_e.swTableAnnotation_General

            Dim swGenTableAnn As SldWorks.GeneralTableAnnotation
            Set swGenTableAnn = tableAnn
            Set swTableFeat = swGenTableAnn.GeneralTable.GetFeature()

        Case swTableAnnotationType_e.swTableAnnotation_WeldmentCutList

            Dim swWeldCutListTableAnn As SldWorks.WeldmentCutListAnnotation
            Set swWeldCutListTableAnn = tableAnn
            Set swTableFeat = swWeldCutListTableAnn.WeldmentCutListFeature.GetFeature()

        Case swTableAnnotationType_e.swTableAnnotation_BendTable

            Dim swBendTableAnn As SldWorks.BendTableAnnotation
            Set swBendTableAnn = tableAnn
            Set swTableFeat = swBendTableAnn.BendTable.GetFeature()

        Case swTableAnnotationType_e.swTableAnnotation_GeneralTolerance

            Dim swGeneralToleranceTableAnn As SldWorks.GeneralToleranceTableAnnotation
            Set swGeneralToleranceTableAnn = tableAnn
            Set swTableFeat = swGeneralToleranceTableAnn.GeneralToleranceTableFeature.GetFeature()

        Case swTableAnnotationType_e.swTableAnnotation_HoleChart

            Dim swHoleTableAnn As SldWorks.HoleTableAnnotation
            Set swHoleTableAnn = tableAnn
            Set swTableFeat = swHoleTableAnn.HoleTable.GetFeature()

        Case swTableAnnotationType_e.swTableAnnotation_PunchTable

            Dim swPunchTableAnn As SldWorks.PunchTableAnnotation
            Set swPunchTableAnn = tableAnn
            Set swTableFeat = swPunchTableAnn.PunchTable.GetFeature()

        Case swTableAnnotationType_e.swTableAnnotation_RevisionBlock

            Dim swRevisionTableAnn As SldWorks.RevisionTableAnnotation
            Set swRevisionTableAnn = tableAnn
            Set swTableFeat = swRevisionTableAnn.RevisionTableFeature.GetFeature()

        Case swTableAnnotationType_e.swTableAnnotation_TitleBlock

            Dim swTitleBlockTableAnn As SldWorks.TitleBlockTableAnnotation
            Set swTitleBlockTableAnn = tableAnn
            Set swTableFeat = swTitleBlockTableAnn.TitleBlockTableFeature.GetFeature()

        Case swTableAnnotationType_e.swTableAnnotation_WeldTable

            Dim swWeldTableAnn As SldWorks.WeldmentCutListAnnotation
            Set swWeldTableAnn = tableAnn
            Set swTableFeat = swWeldTableAnn.WeldmentCutListFeature.GetFeature()

    End Select

    Set GetFeatureFromTableAnnotation = swTableFeat

End Function
