SOLIDWORKS VBA macro to copy preselected faces

Edit ArticleEdit Article
More 'Goodies'

Author: Eddy Alleman (EDAL Solutions)

Offset Surface with distance 0
Offset Surface with distance 0

This VBA macro creates a new surface feature from selected faces in a part file. Thus duplicating the selected surfaces and giving it a predefined color. This can be usefull if you want to reuse existing surfaces and don't want to consolidate existing ones.

Steps to take

  • A part file must be the active document.
  • You have to select at least one face.
  • If you select other types of entities, they will be filtered out.

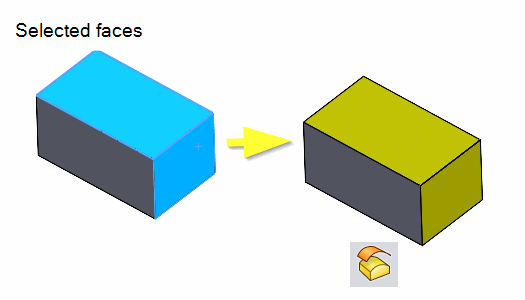

  • Run the macro. As the result a Surface Offset is created of the selected faces with distance 0
  • This feature will get a yellow color by default, but you can change the RGB color to set another one.

Option Explicit

' INPUT You can change to another RGB color here (This example uses yellow)
Const RED = 255
Const GREEN = 255
Const BLUE = 0

Dim swxApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2
Dim selMgr As SldWorks.SelectionMgr

Sub main()

try_:
    On Error GoTo catch_

    Set swxApp = Application.SldWorks

    Set swModel = swxApp.ActiveDoc

    'Check if active document is a Part file
    Select Case True

           Case swModel Is Nothing, swModel.GetType <> swDocPART
              Call swxApp.SendMsgToUser2("Please open a part file", swMbInformation, swMbOk)

           Case Else
               Call ProcessSelectedFaces

    End Select

    GoTo finally_:

catch_:

    MsgBox Err.Description

finally_:

End Sub

Private Function ProcessSelectedFaces() As Boolean

    EnableUpdates False

        Set selMgr = swModel.SelectionManager

        'Get number of selections
        Dim nSelections As Integer
        nSelections = selMgr.GetSelectedObjectCount2(-1)

        'only process if there is something selected
        If nSelections > 0 Then

              Call RemoveNonFacesFromSelection

              'Get the number of selected faces
              Dim nFaces As Integer
              nFaces = selMgr.GetSelectedObjectCount2(-1)

              If nFaces > 0 Then

                  'Offset selected faces
                  swModel.InsertOffsetSurface 0#, False

                  'Give a name to the newly created offset feature
                  Dim featOffset As Feature
                  Set featOffset = swModel.Extension.GetLastFeatureAdded

                  featOffset.Name = featOffset.Name & " Offsets " & nFaces & " Faces"

                  'give the offset feature a color
                  Call SetColor(featOffset)

                  ' Deselect face to see new color
                  swModel.ClearSelection2 True

              End If 'nFaces > 0

         End If 'nSelections > 0

    EnableUpdates True

End Function


Private Function EnableUpdates(update As Boolean)
    With swModel
        .FeatureManager.EnableFeatureTree = update
        .ActiveView.EnableGraphicsUpdate = update
    End With
End Function

'Removes entities that are not faces from the selection manager
Private Function RemoveNonFacesFromSelection()

        'Get number of selections
        Dim nSelections As Integer
        nSelections = selMgr.GetSelectedObjectCount2(-1)

        Dim i As Integer
        For i = 0 To nSelections

           Dim ObjectType As Long
           ObjectType = selMgr.GetSelectedObjectType3(i, -1)

           If ObjectType <> swSelectType_e.swSelFACES Then
               Dim res As Boolean
               res = selMgr.DeSelect2(i, -1)
           End If

        Next

End Function

'Sets the INPUT color on a feature
Private Function SetColor(ByRef Feat As Feature) As Boolean

      'get material properties from model
      Dim MatProp As Variant
      MatProp = swModel.MaterialPropertyValues

      ' set color fi. RGB(225, 255 , 0), but we need them to be in range 0 to 1
      MatProp(0) = RED / 255
      MatProp(1) = GREEN / 255
      MatProp(2) = BLUE / 255

      SetColor = Feat.SetMaterialPropertyValues(MatProp)

End Function
