VBA macro to find and preview collision volume between two selected bodies

Edit ArticleEdit Article

This VBA macro finds the collision volume between two selected bodies and display the temp preview.

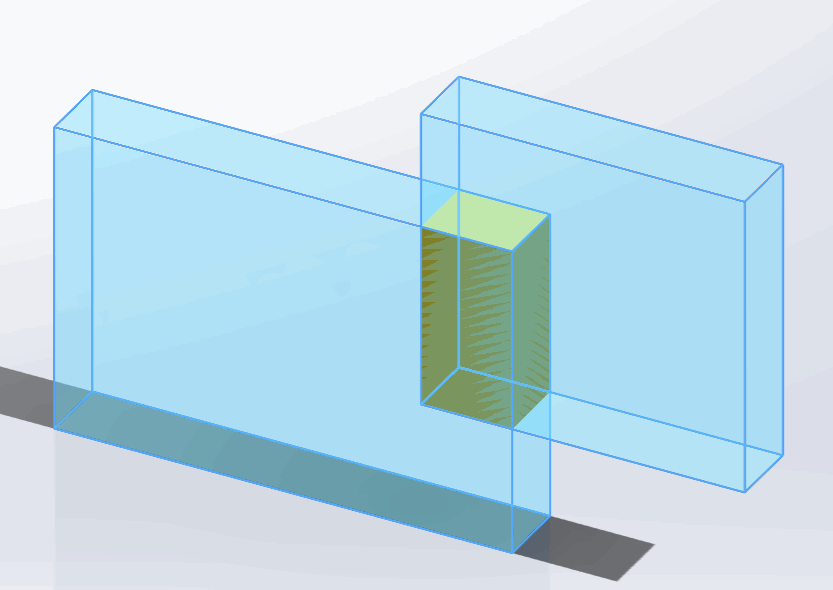

Body collision preview
Body collision preview

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    Dim swSelMgr As SldWorks.SelectionMgr

    Set swSelMgr = swModel.SelectionManager

    Dim swBody1 As SldWorks.Body2
    Dim swBody2 As SldWorks.Body2

    Set swBody1 = swSelMgr.GetSelectedObject6(1, -1)
    Set swBody2 = swSelMgr.GetSelectedObject6(2, -1)

    If Not swBody1 Is Nothing And Not swBody2 Is Nothing Then

        Set swBody1 = swBody1.Copy2(False)
        Set swBody2 = swBody2.Copy2(False)

        Dim swModeler As SldWorks.Modeler

        Set swModeler = swApp.GetModeler

        Dim vBody1Faces As Variant
        Dim vBody2Faces As Variant

        Dim vIntersectBodies As Variant

        If False <> swModeler.CheckInterferenceBetweenTwoBodies(swBody1, swBody2, True, vBody1Faces, vBody2Faces, vIntersectBodies) Then

            Dim i As Integer

            For i = 0 To UBound(vIntersectBodies)
                Dim swIntersectBody As SldWorks.Body2
                Set swIntersectBody = vIntersectBodies(i)
                swIntersectBody.Display3 swModel, RGB(255, 255, 0), swTempBodySelectOptions_e.swTempBodySelectOptionNone
            Next

            Stop

            For i = 0 To UBound(vIntersectBodies)
                Set vIntersectBodies(i) = Nothing
            Next
        Else
            Debug.Print "No Interferences"
        End If

    Else
        Err.Raise vbError, "", "Select 2 bodies"
    End If

End Sub
