Macro to create ISO curves for face using SOLIDWORKS API

Edit ArticleEdit Article

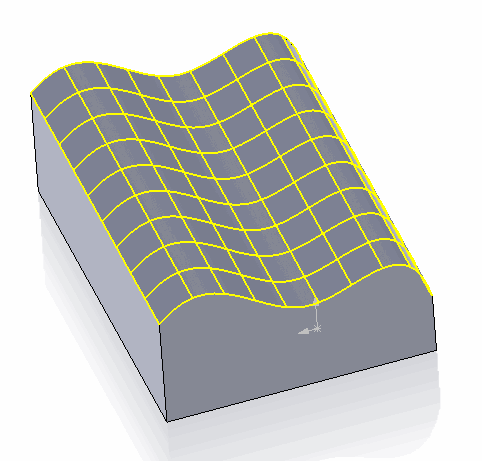

Preview of iso curves of the face
Preview of iso curves of the face

This example demonstrates how to find specified number of iso-curves in the u and v bounds of the selected face using SOLIDWORKS API.

  • Select the face and run the macro
  • Iso curves are previewed and macro execution stops
  • Continue the macro to clear the preview

Number of iso curves in u and v direction can be changed in the following snippet

Dim vCurves As Variant
vCurves = GetIsoCurves(swFace, <Number of curves in u direction>, <Number of curves in v direction>)

Optionally macro allows to create curves in the 3D Sketch.

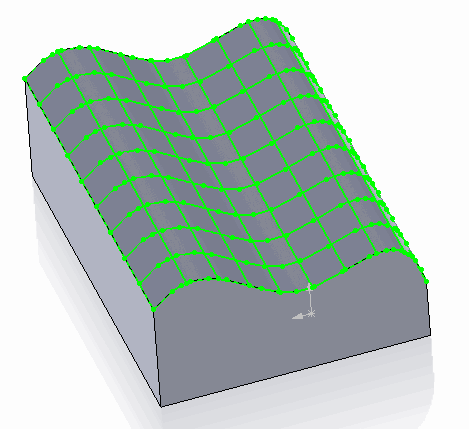

Sketch created for iso curves of the face
Sketch created for iso curves of the face

This option can be enabled by setting CREATE_SKETCH constant to True at the beginning of the macro:

Const CREATE_SKETCH As Boolean = True

Macro:

Const CREATE_SKETCH As Boolean = False

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSelMgr As SldWorks.SelectionMgr

        Set swSelMgr = swModel.SelectionManager

        Dim swFace As SldWorks.Face2
        Set swFace = swSelMgr.GetSelectedObject6(1, -1)

        If Not swFace Is Nothing Then

            Dim vCurves As Variant
            vCurves = GetIsoCurves(swFace, 10, 10)

            If True = CREATE_SKETCH Then
                DrawCurves swModel, vCurves, 0.001, 0.001
            Else
                PreviewCurves swModel, vCurves
            End If

        Else
            MsgBox "Please select face"
        End If

    Else
        MsgBox "Please open the model"
    End If

End Sub

Function GetIsoCurves(face As SldWorks.Face2, uCount As Integer, vCount As Integer) As Variant

    Dim swCurves() As SldWorks.curve
    ReDim swCurves(uCount + vCount - 1)

    Dim uCurves As Variant
    Dim vCurves As Variant

    uCurves = SplitFaceOnIsoCurves(face, True, uCount)
    vCurves = SplitFaceOnIsoCurves(face, False, vCount)

    Dim i As Integer

    For i = 0 To UBound(uCurves)
        Set swCurves(i) = uCurves(i)
    Next

    For i = 0 To UBound(vCurves)
        Set swCurves(UBound(uCurves) + 1 + i) = vCurves(i)
    Next

    GetIsoCurves = swCurves

End Function

Function SplitFaceOnIsoCurves(face As SldWorks.Face2, UorV As Boolean, count As Integer) As Variant

    Dim swCurves() As SldWorks.curve
    ReDim swCurves(count - 1)

    Dim swSurf As SldWorks.Surface
    Set swSurf = face.GetSurface

    Dim thisParamMin As Double
    Dim thisParamMax As Double
    Dim otherParamMin As Double
    Dim otherParamMax As Double

    Dim vUvBounds As Variant
    vUvBounds = face.GetUVBounds

    If True = UorV Then
        thisParamMin = vUvBounds(0)
        thisParamMax = vUvBounds(1)
        otherParamMin = vUvBounds(2)
        otherParamMax = vUvBounds(3)
    Else
        thisParamMin = vUvBounds(2)
        thisParamMax = vUvBounds(3)
        otherParamMin = vUvBounds(0)
        otherParamMax = vUvBounds(1)
    End If

    Dim i As Integer

    Dim paramStep As Double
    paramStep = (thisParamMax - thisParamMin) / (count - 1)

    For i = 0 To count - 1

        Dim param As Double
        param = thisParamMin + i * paramStep

        Dim swCurve As SldWorks.curve
        Set swCurve = swSurf.MakeIsoCurve2(Not UorV, param)

        Dim u As Double
        Dim v As Double

        Dim vStartPt As Variant
        Dim vEndPt As Variant

        If True = UorV Then
            u = param
            v = otherParamMin
        Else
            v = param
            u = otherParamMin
        End If

        vStartPt = swSurf.Evaluate(u, v, 0, 0)

        If True = UorV Then
            u = param
            v = otherParamMax
        Else
            v = param
            u = otherParamMax
        End If

        vEndPt = swSurf.Evaluate(u, v, 0, 0)

        Set swCurve = swCurve.CreateTrimmedCurve2(vStartPt(0), vStartPt(1), vStartPt(2), vEndPt(0), vEndPt(1), vEndPt(2))
        Set swCurves(i) = swCurve
    Next

    SplitFaceOnIsoCurves = swCurves

End Function

Sub PreviewCurves(model As SldWorks.ModelDoc2, curves As Variant)

    Dim swModeler As SldWorks.Modeler
    Set swModeler = swApp.GetModeler

    Dim swCurvesBody() As SldWorks.Body2

    ReDim swCurvesBody(UBound(curves))

    Dim i As Integer

    For i = 0 To UBound(curves)
        Dim swCurve As SldWorks.curve
        Set swCurve = curves(i).MakeBsplineCurve2()
        Set swCurvesBody(i) = swCurve.CreateWireBody
        swCurvesBody(i).Display3 model, RGB(255, 255, 0), swTempBodySelectOptions_e.swTempBodySelectOptionNone
    Next

    Stop

    'clear preview
    For i = 0 To UBound(swCurvesBody)
        Set swCurvesBody(i) = Nothing
    Next

    model.GraphicsRedraw2

End Sub

Sub DrawCurves(model As SldWorks.ModelDoc2, curves As Variant, chordTol As Double, lengthTol As Double)

    Dim swSketchMgr As SldWorks.SketchManager
    Set swSketchMgr = model.SketchManager

    model.ClearSelection2 True
    swSketchMgr.Insert3DSketch False
    model.SetAddToDB True

    For i = 0 To UBound(curves)
        Dim swCurve As SldWorks.curve
        Set swCurve = curves(i)
        DrawCurve swCurve, model, chordTol, lengthTol
    Next

    model.SetAddToDB False
    swSketchMgr.Insert3DSketch True

End Sub

Sub DrawCurve(curve As SldWorks.curve, model As SldWorks.ModelDoc2, chordTol As Double, lengthTol As Double)

    Dim vStartPt As Variant
    Dim vEndPt As Variant
    Dim vTessPts As Variant

    Dim startParam As Double
    Dim endParam As Double

    curve.GetEndParams startParam, endParam, False, False

    vStartPt = curve.Evaluate2(startParam, 0)
    vEndPt = curve.Evaluate2(endParam, 0)

    vTessPts = curve.GetTessPts(chordTol, lengthTol, (vStartPt), (vEndPt))

    For i = 0 To UBound(vTessPts) - 3 Step 3
        model.CreateLine2 vTessPts(i + 0), vTessPts(i + 1), vTessPts(i + 2), vTessPts(i + 3), vTessPts(i + 4), vTessPts(i + 5)
    Next i

End Sub
