Macro feature to configure model dimensions

This VBA macro leverages functionality of macro feature to create custom model configurator for the specified dimensions.

Macro will build dynamic User Interface for the specified dimension and insert the Configurator feature directly in the Feature Manager tree.

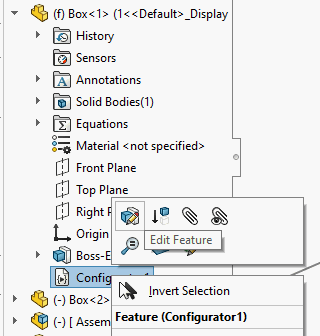

Design can be modified at any time by clicking Edit Feature command

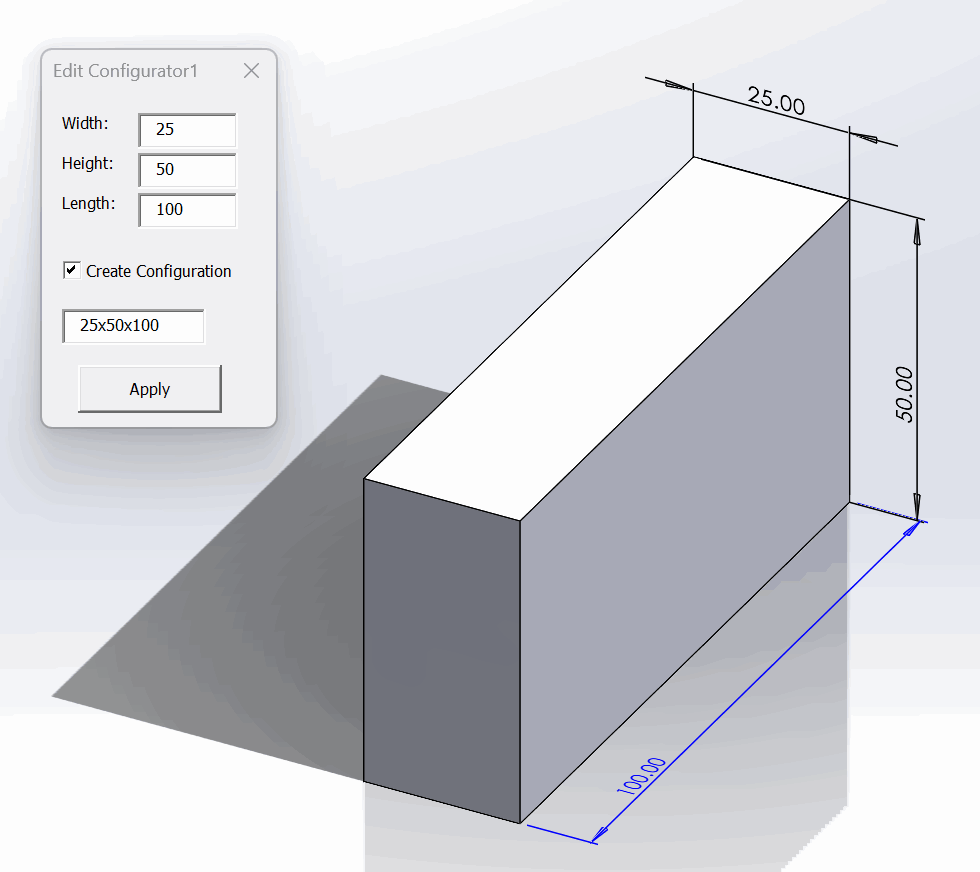

Editing the dimensions of the model via configurator form

Feature can also be edited in the context of the assembly.

Editing configuration in-context of the assembly

To insert the feature, pre-select dimensions you want to be configured and run the macro.

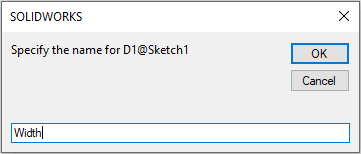

For each selected dimension specify the user friendly title (this will be displayed on the form):

Once inserted. Edit the definition of the feature to update the model.

Configurator feature can be inserted into the part or assembly (including inserting to the component edited in the context of the assembly).

Dimensions will be modified in the active configuration or in the referenced configuration of the component (if edited in context)

When adding configurator feature to the assembly it is possible to modify the dimensions of any sub-component.

Macro has an option to create a configuration for specified parameters. Once Create Configuration option is checked, specify the name of the configuration in the text box below.

When configuration is created for the component edited in the context of the assembly, referenced configuration of the component is automatically changed to a new configuration

Configuration

User can modify the constants below to change some of the parameters.

BASE_NAME constants defines the default name used for the configurator feature
EMBED_MACRO_FEATURE allows to embed the code directly to the model, so it is no longer linked to the original macro. This model can be shared with anyone and edited without the need to supply the original macro

Public Const BASE_NAME As String = "MyConfigurator" 'default name for the feature

Const EMBED_MACRO_FEATURE As Boolean = True' embeds macro feature into the model

Benefits Comparison

Table below demonstrates the benefits of this approach compared to other poplar design automation methods and tools.

Note, the table below only shows benefits of this macro compared to other methods. Other methods have more benefits and features which this macro does not cover and those are not included into the table below

Feature	This Macro	Equations	Design Table	DriveWorks
Easy to setup	✓	✓	✓	✗
Simple input method	✓	✗	✗	✓
Performance	✓	✓	✗	✗
On-demand editing	✓	✓	✓	✗
Sub-components support	✓	✗	✗	✓
In-context editing	✓	✗	✗	N/A
Extensibility	✓	✗	✗	✓

Easy to setup

This criteria defines how quickly the configurator can be created. DriveWorks requires specific skills and rules engine to create a configurator, while this macro only requires dimensions preselection

Simple input method

This criteria defines how easy it is to apply and change the dimensions as per configurator input parameters. Both this macro and DriveWorks will use custom forms which simplifies the input while Equations and Design Table do not have a specific input form and it is required to search for the specific inputs through the list of other equations and definitions.

Performance

This criteria defines the execution performance (how long it takes before parameters are applied). This macro applies parameters instantly directly to dimension. Design Table needs to load Excel instance and open the file to recalculate and apply value. DriveWorks will always generate new model based on the specification inputs.

On-demand editing

This criteria defines if parameters can be changed to the existing design. DriveWorks generates new model and does not modify existing one.

Sub-components support

This criteria defines if parameters of the sub component can be modified. Although Equations can be defined for the components those are not configuration specific, i.e. it will not be possible to have two instances of the component with different configurations and different equation values.

In-context editing

This criteria defines if configuration of the component can be changed using in-context editing from the top level assembly. All of the methods except this macro requires the target component to be opened in its own window in order to be edited, while this macro allows in-context editing.

Extensibility

This criteria defines the possibility to extend the functionality beyond the out-of-the box functionality. Both Equations and DesignTable are built-in features. DriveWorks provides APIs and can be extended. This macro is open source and can be extended using SOLIDWORKS API.

Macro Setup

Create new macro and copy the code below:

Type DimensionInfo
    Name As String
    title As String
    Value As Double
End Type

Public Const MARGIN As Integer = 10
Public Const MAX_FORM_HEIGHT = 200
Public Const TEXT_BOX_WIDTH As Integer = 50
Public Const BASE_NAME As String = "Configurator"

Const EMBED_MACRO_FEATURE As Boolean = False

Sub main()

    Dim swApp As SldWorks.SldWorks
    Set swApp = Application.SldWorks

try_:

    On Error GoTo catch_

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        If Not TypeOf swModel Is PartDoc And Not TypeOf swModel Is AssemblyDoc Then
            Err.Raise vbError, "", "Only part and assembly documents are supported"
        End If

        Dim vParamNames As Variant
        Dim vParamTypes As Variant
        Dim vParamValues As Variant

        If Not CollectParameters(swModel, vParamNames, vParamTypes, vParamValues) Then
            Err.Raise vbError, "", "Please select dimensions to configure"
        End If

        Dim curMacroPath As String
        curMacroPath = swApp.GetCurrentMacroPathName

        Dim vMethods(8) As String
        Dim moduleName As String

        GetMacroEntryPoint swApp, curMacroPath, moduleName, ""

        vMethods(0) = curMacroPath: vMethods(1) = moduleName: vMethods(2) = "swmRebuild"
        vMethods(3) = curMacroPath: vMethods(4) = moduleName: vMethods(5) = "swmEditDefinition"
        vMethods(6) = curMacroPath: vMethods(7) = moduleName: vMethods(8) = "swmSecurity"

        Dim opts As swMacroFeatureOptions_e

        If EMBED_MACRO_FEATURE Then
            opts = swMacroFeatureOptions_e.swMacroFeatureEmbedMacroFile
        Else
            opts = swMacroFeatureOptions_e.swMacroFeatureByDefault
        End If

        Dim swFeat As SldWorks.Feature
        Set swFeat = swModel.FeatureManager.InsertMacroFeature3(BASE_NAME, "", vMethods, _
            vParamNames, vParamTypes, vParamValues, Empty, Empty, Empty, _
            Empty, opts)

        If swFeat Is Nothing Then
            Err.Raise vbError, "", "Failed to create box feature"
        End If

    Else
        Err.Raise "Please open model"
    End If

    GoTo finally_

catch_:
    MsgBox Err.Description, vbCritical, "Configurator"
finally_:

End Sub

Function CollectParameters(model As SldWorks.ModelDoc2, ByRef vParamNames As Variant, ByRef vParamTypes As Variant, ByRef vParamValues As Variant) As Boolean

    Dim paramNames() As String
    Dim paramTypes() As Long
    Dim paramValues() As String

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = model.SelectionManager

    Dim i As Integer

    For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)
        If swSelMgr.GetSelectedObjectType3(i, -1) = swSelectType_e.swSelDIMENSIONS Then

            Dim swDispDim As SldWorks.DisplayDimension
            Set swDispDim = swSelMgr.GetSelectedObject6(i, -1)

            Dim swComp As SldWorks.Component2
            Set swComp = swSelMgr.GetSelectedObjectsComponent3(i, -1)

            If (Not paramNames) = -1 Then
                ReDim paramNames(0)
                ReDim paramTypes(0)
                ReDim paramValues(0)
            Else
                ReDim Preserve paramNames(UBound(paramNames) + 1)
                ReDim Preserve paramTypes(UBound(paramTypes) + 1)
                ReDim Preserve paramValues(UBound(paramValues) + 1)
            End If

            Dim paramName As String
            paramName = ""

            If Not swComp Is Nothing Then

                paramName = swComp.Name2

                Dim swAssy As SldWorks.AssemblyDoc
                Set swAssy = model

                Dim swEditTargetComp As SldWorks.Component2
                Set swEditTargetComp = swAssy.GetEditTargetComponent

                If Not swEditTargetComp Is Nothing Then
                    If Not swEditTargetComp.GetModelDoc2() Is swAssy Then
                        If Left(paramName, Len(swEditTargetComp.Name2)) <> swEditTargetComp.Name2 Then
                            Err.Raise vbError, "", "Dimension must belong to the current edit target"
                        End If
                        If LCase(paramName) = LCase(swEditTargetComp.Name2) Then
                            paramName = ""
                        Else
                            paramName = Right(paramName, Len(paramName) - Len(swEditTargetComp.Name2) - 1)
                        End If
                    End If
                End If

            End If

            paramName = paramName & IIf(paramName <> "", "/", "") & swDispDim.GetNameForSelection

            paramNames(UBound(paramNames)) = paramName
            paramValues(UBound(paramValues)) = InputBox("Specify the name for " & paramName, "Configurator", paramName)
            paramTypes(UBound(paramTypes)) = swMacroFeatureParamType_e.swMacroFeatureParamTypeString

        End If
    Next

    vParamNames = paramNames
    vParamTypes = paramTypes
    vParamValues = paramValues

    CollectParameters = (Not paramNames) <> -1

End Function

Sub GetMacroEntryPoint(app As SldWorks.SldWorks, macroPath As String, ByRef moduleName As String, ByRef procName As String)

    Dim vMethods As Variant
    vMethods = app.GetMacroMethods(macroPath, swMacroMethods_e.swMethodsWithoutArguments)

    Dim i As Integer

    If Not IsEmpty(vMethods) Then

        For i = 0 To UBound(vMethods)
            Dim vData As Variant
            vData = Split(vMethods(i), ".")

            If i = 0 Or LCase(vData(1)) = "main" Then
                moduleName = vData(0)
                procName = vData(1)
            End If
        Next

    End If

End Sub

Function swmRebuild(varApp As Variant, varDoc As Variant, varFeat As Variant) As Variant
    swmRebuild = True
End Function

Function swmSecurity(varApp As Variant, varDoc As Variant, varFeat As Variant) As Variant
    swmSecurity = SwConst.swMacroFeatureSecurityOptions_e.swMacroFeatureSecurityByDefault
End Function

Function swmEditDefinition(varApp As Variant, varDoc As Variant, varFeat As Variant) As Variant

try_:

    On Error GoTo catch_

    Dim swFeat As SldWorks.Feature
    Set swFeat = varFeat

    Dim title As String
    title = "Edit " & swFeat.Name

    Dim swMacroFeat As SldWorks.MacroFeatureData
    Set swMacroFeat = swFeat.GetDefinition

    Dim vParamNames As Variant
    Dim vParamValues As Variant

    swMacroFeat.GetParameters vParamNames, Empty, vParamValues

    Dim swActiveModel As SldWorks.ModelDoc2

    Set swActiveModel = varDoc

    Dim confName As String
    confName = swMacroFeat.CurrentConfiguration.Name

    Dim dimsInfo() As DimensionInfo
    dimsInfo = LoadDimensionValues(swActiveModel, confName, vParamNames, vParamValues)

    ConfiguratorForm.Caption = title

    ConfiguratorForm.EditDimensions dimsInfo, swActiveModel, confName

    swmEditDefinition = True

    GoTo finally_

catch_:
    swmEditDefinition = False
    MsgBox Err.Description, vbCritical, title
finally_:

End Function

Public Sub TrySetDimensions(dimsInfo() As DimensionInfo, model As SldWorks.ModelDoc2, targConfName As String, createConf As Boolean)

try_:

    On Error GoTo catch_

    Dim swTargModel As SldWorks.ModelDoc2
    Dim swTargComp As SldWorks.Component2

    If model.GetType() = swDocumentTypes_e.swDocASSEMBLY Then
        Dim swAssy As SldWorks.AssemblyDoc
        Set swAssy = model
        Set swTargModel = swAssy.GetEditTarget
        Set swTargComp = swAssy.GetEditTargetComponent
    Else
        Set swTargModel = model
    End If

    If createConf Then
        Dim swConf As SldWorks.Configuration

        If targConfName = "" Then
            Err.Raise vbError, "", "Specify configuration name"
        End If

        Set swConf = swTargModel.ConfigurationManager.AddConfiguration2(targConfName, "", "", swConfigurationOptions2_e.swConfigOption_DontActivate, "", "", False)
        If swConf Is Nothing Then
            Err.Raise vbError, "", "Failed to add new configuration"
        End If
    End If

    Dim i As Integer

    For i = 0 To UBound(dimsInfo)

        Dim dimInfo As DimensionInfo
        dimInfo = dimsInfo(i)

        Dim swDim As SldWorks.Dimension

        Dim dimName As String
        dimName = dimInfo.Name

        Set swDim = GetDimension(swTargModel, dimName)

        If Not swDim Is Nothing Then
            Dim dimVal As Double
            dimVal = dimInfo.Value

            Dim confNames(0) As String
            confNames(0) = targConfName
            swDim.SetValue3 dimVal, swInConfigurationOpts_e.swSpecifyConfiguration, confNames
        Else
            Err.Raise vbError, "", dimName & " does not exist"
        End If
    Next

    If createConf And Not swTargComp Is Nothing Then

        swTargComp.ReferencedConfiguration = targConfName

    End If

    GoTo finally_

catch_:
    MsgBox Err.Description, vbCritical, "Configurator"
finally_:

End Sub

Function GetDimension(model As SldWorks.ModelDoc2, dimName As String) As SldWorks.Dimension

    Dim dimParts As Variant
    dimParts = Split(dimName, "/")

    Dim i As Integer

    Dim swTargetModel As SldWorks.ModelDoc2
    Set swTargetModel = model

    Dim swCurComp As SldWorks.Component2

    For i = 0 To UBound(dimParts) - 1
        Dim swAssy As SldWorks.AssemblyDoc
        Set swAssy = swTargetModel
        Set swCurComp = swAssy.GetComponentByName(dimParts(i))
        Set swTargetModel = swCurComp.GetModelDoc2()
    Next

    Set GetDimension = swTargetModel.Parameter(dimParts(UBound(dimParts)))

End Function

Private Function LoadDimensionValues(model As SldWorks.ModelDoc2, confName As String, vParamNames As Variant, vParamValues As Variant) As DimensionInfo()

    Dim swTargModel As SldWorks.ModelDoc2

    If model.GetType() = swDocumentTypes_e.swDocASSEMBLY Then
        Dim swAssy As SldWorks.AssemblyDoc
        Set swAssy = model
        Set swTargModel = swAssy.GetEditTarget
    Else
        Set swTargModel = model
    End If

    Dim dimsInfo() As DimensionInfo
    ReDim dimsInfo(UBound(vParamNames))

    Dim i As Integer

    For i = 0 To UBound(vParamNames)

        Dim swDim As SldWorks.Dimension

        Dim dimName As String
        dimName = CStr(vParamNames(i))

        dimsInfo(i).Name = dimName
        dimsInfo(i).title = vParamValues(i)

        Set swDim = GetDimension(swTargModel, dimName)

        If Not swDim Is Nothing Then
            Dim dimVal As Double
            Dim confNames(0) As String
            confNames(0) = confName
            dimVal = swDim.GetValue3(swInConfigurationOpts_e.swSpecifyConfiguration, confNames)(0)
            dimsInfo(i).Value = dimVal
        Else
            Err.Raise vbError, "", dimName & " does not exist"
        End If
    Next

    LoadDimensionValues = dimsInfo

End Function

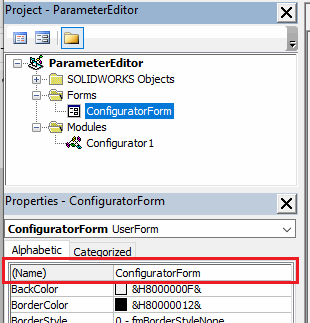

Add new User Form and place the code below into the form's code behind

Dim lblParamName() As Label
Dim txtParamValue() As TextBox

Dim WithEvents chkCreateConf As CheckBox
Dim txtConfName As TextBox
Dim WithEvents btnApply As CommandButton

Dim FeatDimsInfos() As DimensionInfo
Dim swActiveModel As SldWorks.ModelDoc2
Dim FeatConfName As String

Public Sub EditDimensions(dimsInfos() As DimensionInfo, activeModel As SldWorks.ModelDoc2, confName As String)

    LoadLayout dimsInfos, activeModel, confName

    Me.Show vbModeless

End Sub

Private Sub LoadLayout(dimsInfos() As DimensionInfo, activeModel As SldWorks.ModelDoc2, confName As String)

    FeatDimsInfos = dimsInfos
    FeatConfName = confName

    Set swActiveModel = activeModel

    Dim i As Integer

    Dim maxWidth As Integer

    ReDim lblParamName(UBound(FeatDimsInfos))
    ReDim txtParamValue(UBound(FeatDimsInfos))

    Dim nextPosY As Integer
    nextPosY = MARGIN

    For i = 0 To UBound(FeatDimsInfos)

        Dim dimInfo As DimensionInfo
        dimInfo = FeatDimsInfos(i)

        Set lblParamName(i) = Me.Controls.Add("Forms.Label.1")
        lblParamName(i).Caption = dimInfo.title & ":"
        lblParamName(i).Name = "lblLabel" & (i + 1)
        lblParamName(i).AutoSize = True

        lblParamName(i).Left = MARGIN
        lblParamName(i).Top = nextPosY

        If lblParamName(i).Width > maxWidth Then
            maxWidth = lblParamName(i).Width
        End If

        Set txtParamValue(i) = Me.Controls.Add("Forms.TextBox.1")
        txtParamValue(i).Width = TEXT_BOX_WIDTH
        txtParamValue(i).Name = "txtVal" & (i + 1)
        txtParamValue(i).Top = nextPosY
        txtParamValue(i).Text = dimInfo.Value

        nextPosY = nextPosY + MARGIN + lblParamName(i).height

    Next

    For i = 0 To UBound(txtParamValue)
        txtParamValue(i).Left = maxWidth + MARGIN * 2
    Next

    Set chkCreateConf = Me.Controls.Add("Forms.CheckBox.1")
    chkCreateConf.Caption = "Create Configuration"
    chkCreateConf.Name = "chkCreateConf"
    chkCreateConf.Top = nextPosY + MARGIN
    chkCreateConf.Left = MARGIN

    Set txtConfName = Me.Controls.Add("Forms.TextBox.1")
    txtConfName.Name = "txtConfName"
    txtConfName.Top = chkCreateConf.Top + chkCreateConf.height + MARGIN
    txtConfName.Left = MARGIN
    txtConfName.Text = FeatConfName
    txtConfName.Enabled = chkCreateConf.Value

    Set btnApply = Me.Controls.Add("Forms.CommandButton.1")
    btnApply.Caption = "Apply"
    btnApply.Name = "btnApply"
    btnApply.Top = txtConfName.Top + txtConfName.height + MARGIN
    btnApply.Left = (maxWidth + MARGIN + TEXT_BOX_WIDTH) / 2 - btnApply.Width / 2 + MARGIN

    Dim height As Integer
    height = btnApply.Top + btnApply.height + MARGIN

    Me.StartUpPosition = 1 'center owner
    Me.ScrollBars = IIf(height > MAX_FORM_HEIGHT, fmScrollBarsVertical, fmScrollBarsNone)
    Me.ScrollHeight = height
    Me.Width = (maxWidth + MARGIN + TEXT_BOX_WIDTH) + MARGIN * 2 + 20
    Me.height = IIf(height > MAX_FORM_HEIGHT, MAX_FORM_HEIGHT + 25, height + 25) 'including header height

End Sub

Private Sub chkCreateConf_Change()
    txtConfName.Enabled = chkCreateConf.Value
End Sub

Private Sub btnApply_Click()

    Dim targConfName As String

    If chkCreateConf.Value Then
        targConfName = txtConfName.Text
    Else
        targConfName = FeatConfName
    End If

    Dim i As Integer

    For i = 0 To UBound(FeatDimsInfos)
        Dim dimValTxt As String
        dimValTxt = txtParamValue(i).Text
        If IsNumeric(dimValTxt) Then
            FeatDimsInfos(i).Value = CDbl(dimValTxt)
        Else
            Err.Raise vbError, "", "Specified value for " & FeatDimsInfos(i).title & " is not numeric"
        End If
    Next

    TrySetDimensions FeatDimsInfos, swActiveModel, targConfName, chkCreateConf.Value

End Sub

Specify the name for the form to be ConfiguratorForm. As the result the solution tree in VBA will look like below:
